ColorQube 8570/8870 Service Manual
REP 3.10, REP 3.12
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
Replacement
For the Pick Roller, insert the replacement Roller with the metal shaft at the top and toward the
left. The Grey Rollers should be facing you. Position the Roller back about 2 inches (5 cm) in
the tray cavity. Feel for a large plastic lip on the right and the mating gear on the left. Rotate the
Pick Roller up and back to snap it into place.

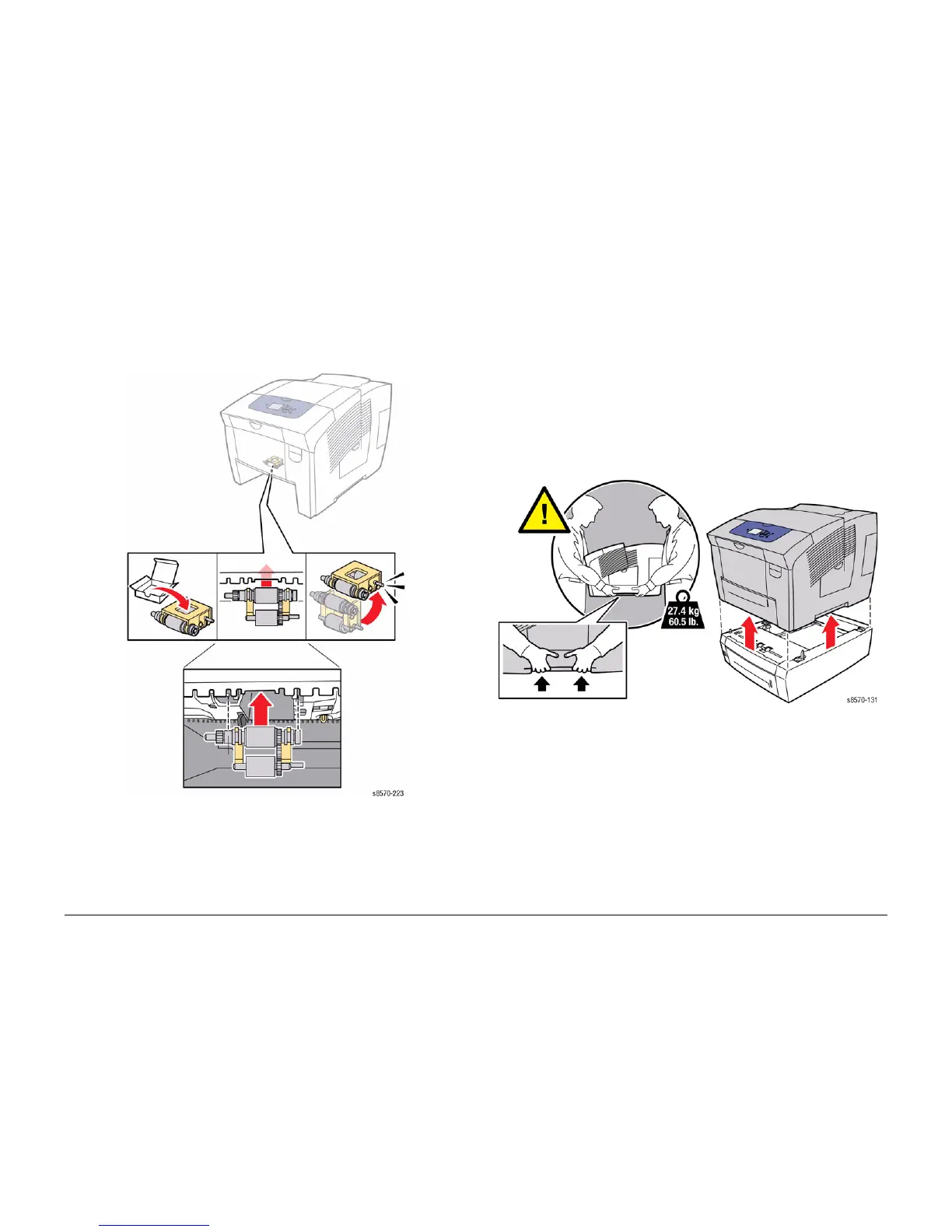

Figure 4 Replacing the Pick Roller
REP 3.12 525-Sheet Feeder
Parts List on PL 3.1 Item 12
Removal
WARNING
Parts of the printer are hot. To avoid personal injury or damage to the printer, allow the
ink to solidify. Run the shutdown procedure to park the Printhead and begin cooling the
printer. Wait at least 30 minutes for the printer to cool before moving or packing the
printer.
WARNING
Two people are required to move the printer from the Optional 525-Sheet Feeder. Use
safety lifting and handling techniques when moving the printer.
1. Carefully lift the printer away from the 525-Sheet Feeder.
Figure 1 Removing the 525-Sheet Feeder
