Xerox COLORQUBE 8570 Service Manual

October 2012
4-108
ColorQube 8570/8870 Service Manual
ADJ 1.5
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
ADJ 1.5 Center the Printhead
Purpose
To center the Printhead to allow tilting the Printhead backwards into the Parked position.
Adjustment
NOTE: For additional information, refer to Center the Printhead video (also available in the
ColorQube 8570/8870 Training materials).
1. Use a small flat tip screwdriver to adjust the X-Axis Motor to center the Printhead and
allow removing the Printhead Restraints.
• Adjust counter-clockwise to remove the Printhead pin from the right Restraint
(adjusting the Head to X-Axis Tilt position).
• Turn the Motor counter-clockwise until resistance, then 1 rotation clockwise to set to
tilt position.

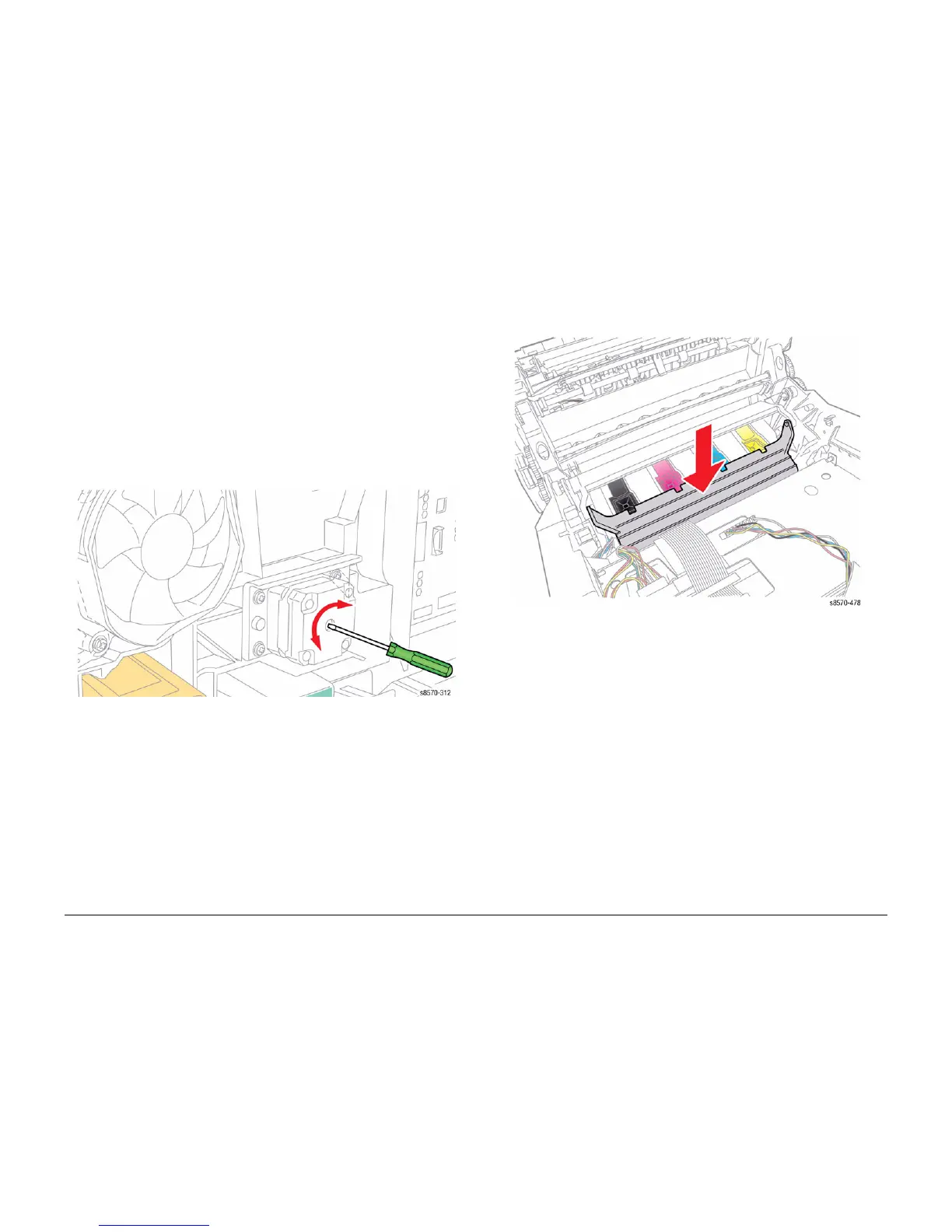

Figure 1 Adjusting the X-Axis Motor
2. To verify that the Printhead is centered, install the Funnel Cap.
3. Check that the four notches on the Funnel Cap are aligned in the middle of the Printhead
Reservoirs.
Figure 2 Installing the Funnel Cap
