Xerox COLORQUBE 8570 Service Manual

October 2012
4-58
ColorQube 8570/8870 Service Manual
REP 3.5, REP 3.7
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
8. Route the Solenoid wiring harness through the right side of the printer frame and remove
the Upper Duplex Guide from the printer.

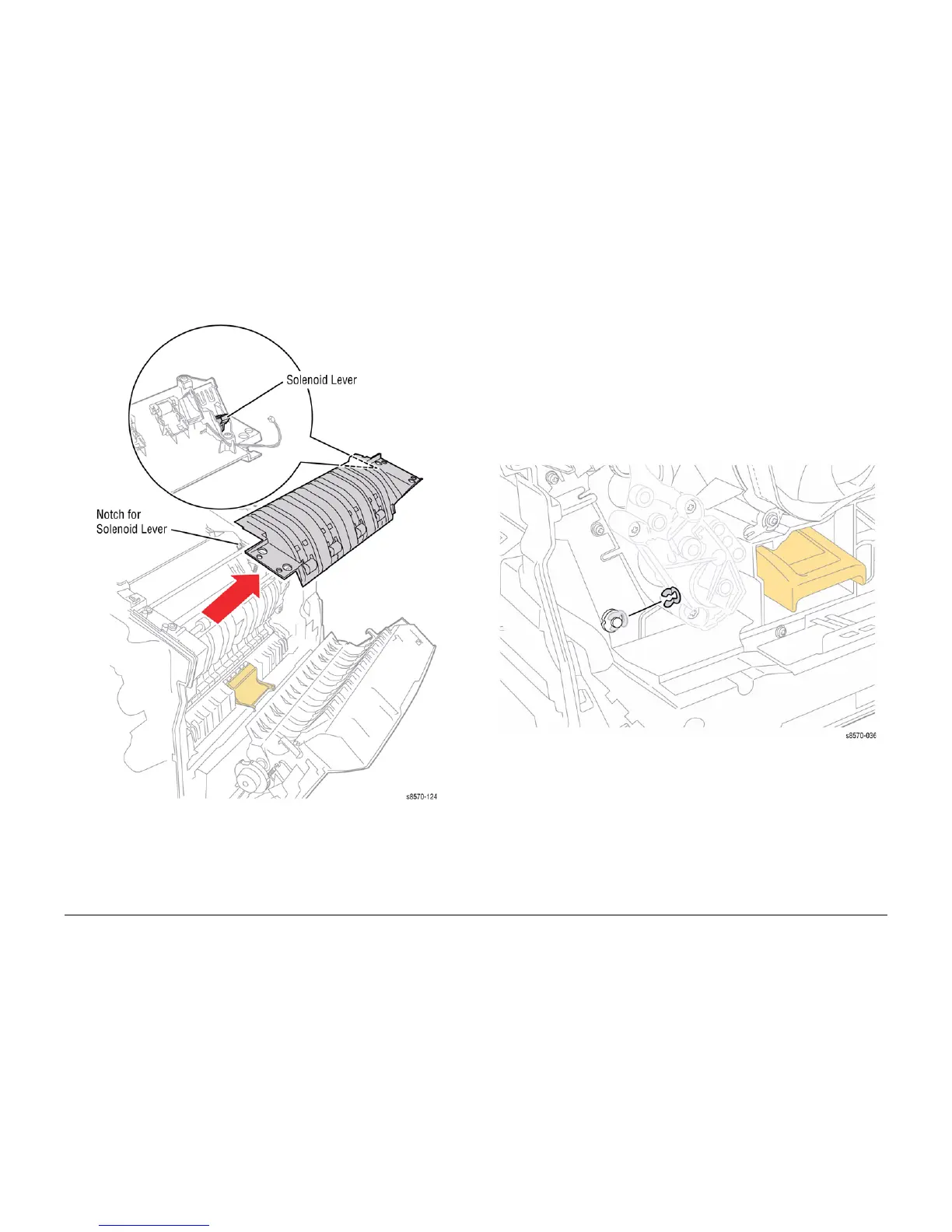

Figure 2 Removing the Upper Duplex Guide
Replacement
Route the Solenoid wiring harness through the right side of the frame. Also, route the Guide
under the edges of the Exit Module frame. Check that the Stripper Solenoid actuator engages
the hole in the Stripper Carriage Assembly.
REP 3.7 Takeaway Roller
Parts List on PL 3.1 Item 7
Removal
1. Open the Front Door.
2. Remove the Control Panel Cover (REP 1.5).
3. Remove the Left Side Cover (REP 1.10).
4. Remove the Right Side Cover (REP 1.11).
5. Remove the Media Drive Assembly (REP 4.5).
6. Remove the Lower Inner Duplex Guide (REP 3.2).
7. Remove the Inner Simplex Guide (REP 3.1).
8. Remove the KL-Clip from the right end of the Takeaway Roller shaft.
Figure 1 Removing the KL-Clip from the Right Side of the Shaft

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
