Xerox COLORQUBE 8570 Service Manual

October 2012
4-107
ColorQube 8570/8870 Service Manual
ADJ 1.4
Repairs and Adjustments
Xerox Internal Use Only - Revised, 3rd Revision

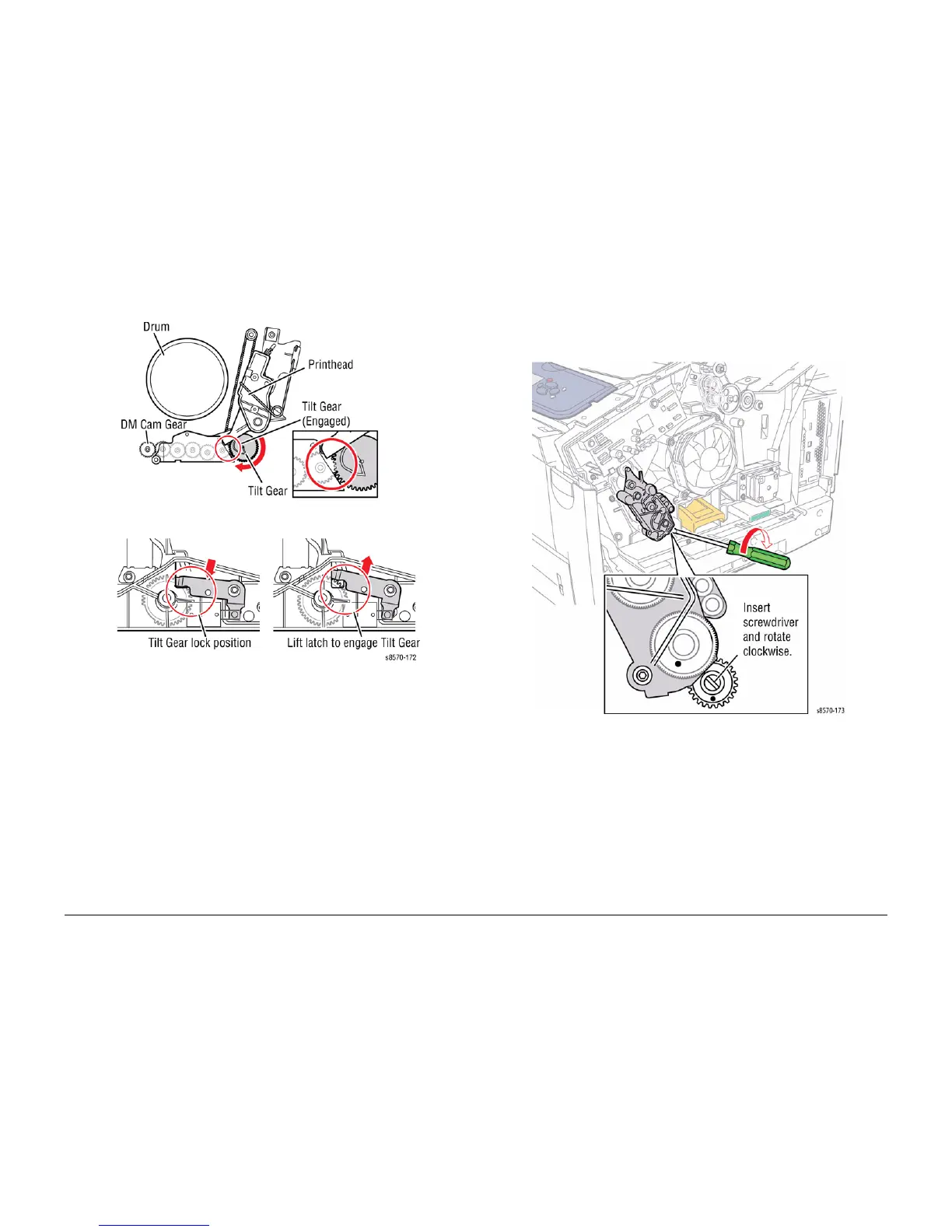

6. Engage the Head Tilt Gear as shown in Figure 2. The tilt gear is spring loaded and should
engage its gear train.
Figure 2 Engaging the Headtilt Gear
7. Rotate the Drum Maintenance Camshaft until the Printhead has tilted back to its parked
position, which is the furthest point from the Drum.
8. Lower the tilt latch to lock the tilt gear (and the Printhead) in the tilted back position.
9. Use a small flat blade screwdriver to rotate the X-Axis Motor to move the Printhead all the
way to the right as shown in Figure 3.
Figure 3 Rotating the Drum Maintenance Camshaft
