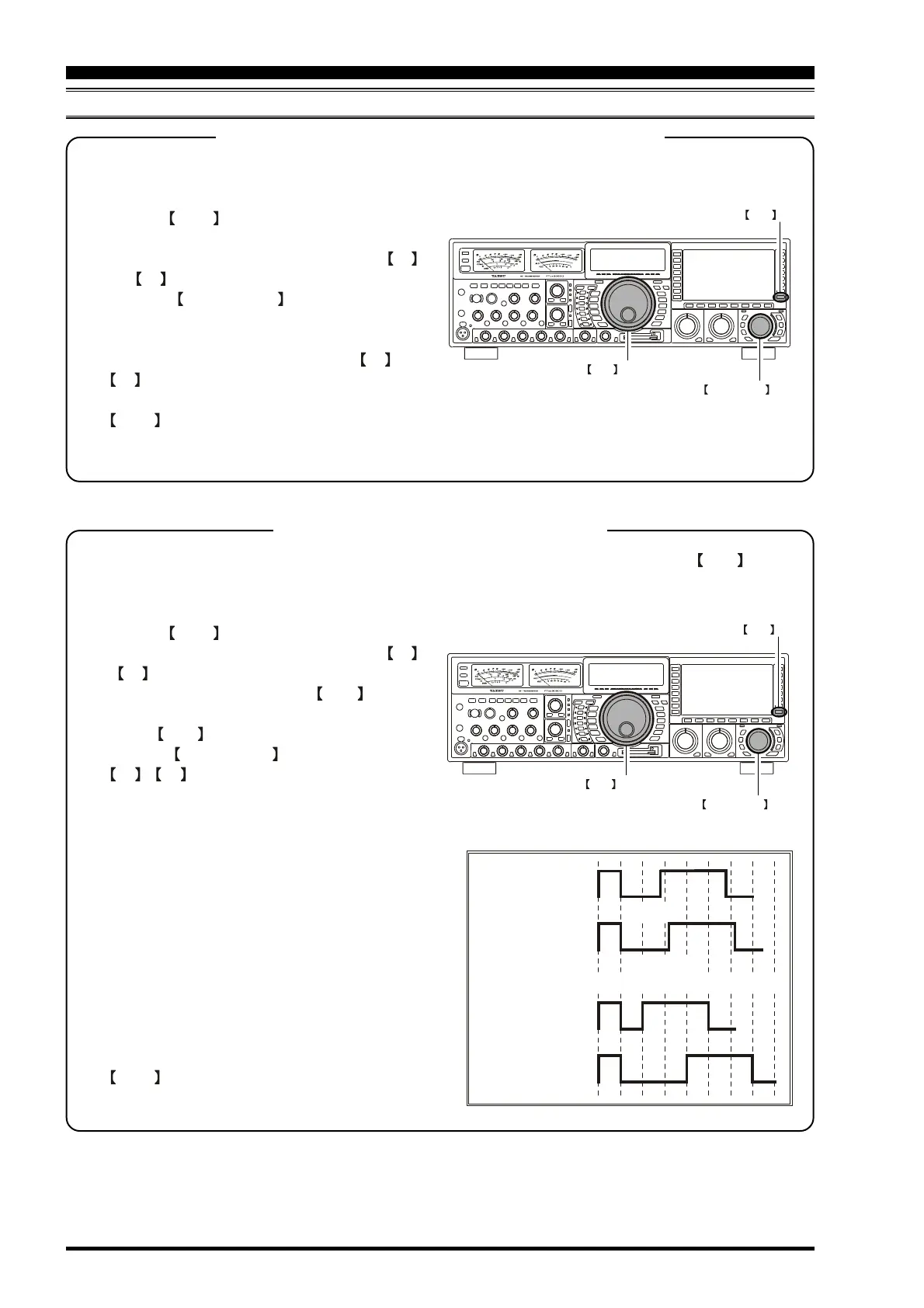

Page 102 FTDX9000D OPERATION MANUAL
USING THE BUILT-IN ELECTRONIC KEYER
1. Press the MNU key to enter the Menu mode.
2. Rotate the Main Dial to select Menu item MODE-
CW 049 CW WEIGHT. You may also use the F6
and F7 keys of the TFT to select the Menu item.
3. Rotate the CLAR/VFO-B key to set the weight
to the desired value. The available adjustment range
is for a Dot/Space:Dash ratio of 2.5~4.5 (default
value: 3.0). You may also use the TFT's F4 and
F5 to set the weight value.
4. When you are finished, press and hold in the
MNU key for two seconds to save the new set-
ting and exit to normal operation.
1. Press the MNU key to enter the Menu mode.
2. Rotate the Main Tuning Dial (or use the TFT’s F6
/ F7 keys) to select Menu item MODE-CW 041
F-KEYER TYPE (for the front KEY jack) or
MODE-CW 043 R-KEYER TYPE (for the rear-
panel’s KEY jack).
3. Rotate the CLAR/VFO-B knob (or use the TFT’s
F4 / F5 keys) to set the keyer to the desired
mode. The available selections are:
OFF: The built-in Electronic Keyer is turned
off (“straight key” mode.)
BUG: Dots will be generated automatically by
the keyer, but dashes must be sent manu-
ally.
ELEKEY: Both dots and dashes will be generated
automatically when you use your
paddle.
ACS: Same as “ELEKEY” except that the
spacing between characters is precisely
set by the keyer to be the same length
as a dash (three dots in length.)
4. When you are finished, press and hold in the
MNU key for two seconds to save the new set-
ting and exit to normal operation.
CW MODE OPERATION
Morse
"A"
Morse
"A"
Morse
"E" & "T"
Morse
"E" & "T”
Inter-charactor
spacing to long
Inter-charactor
spacing to short
Without
ACS
With
ACS
Setting the Keyer Weight (Dot/Space:Dash ) Ratio
The Menu may be used to adjust the Weight for the built-in Electronic Keyerr. The default weighting is 3:1 (a dash is
three times longer than a dot or space).
Selecting the Keyer Operating Mode
The configuration of the Electronic Keyer may be customized independently for the front and rear KEY jacks of
the FT DX 9000D. This permits utilization of Automatic Character Spacing (ACS), if desired, as well as the use of the
electronic keyer via the front jack and a straight key or computer-driven keying line via the rear panel.
CLAR/VFO-B knob
MNU key
Main Tuning Dial
CLAR/VFO-B knob
MNU key
Main Tuning Dial
