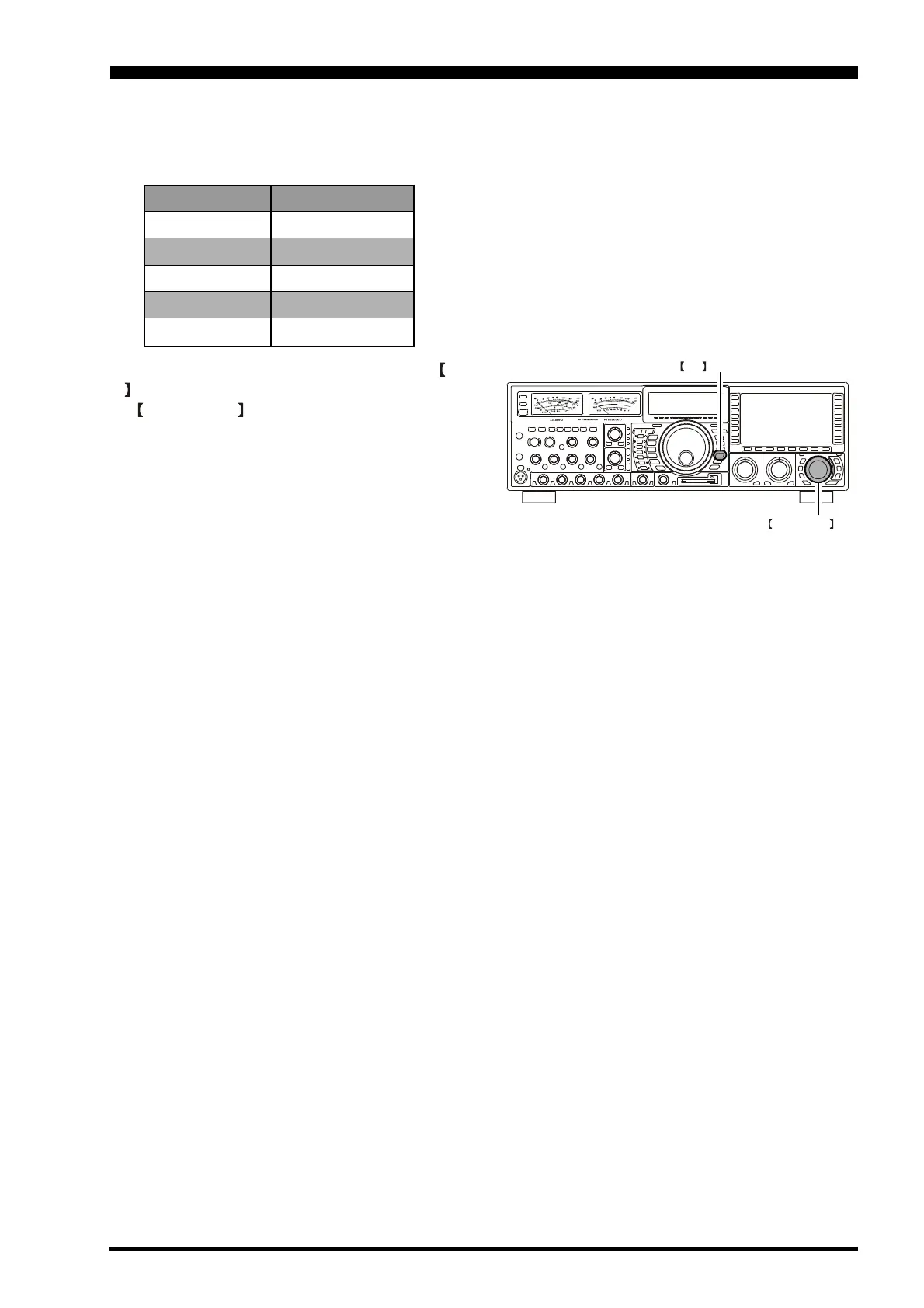

Page 119FTDX9000D OPERATION MANUAL
O
PERATION
ON
THE
60-M
ETER
B
AND
(U.S. VERSION)
The recently-released 60-meter band is covered, in the FT DX 9000D, by five special, fixed memory channels. These
channels are set to USB, and they appear between the “last” PMS channel (“P9U”) and the first “regular” memnory channel
(Channel 1).
The five channels are:
Channel Number Frequency
US1 5.332.000 MHz
US2 5.348.000 MHz
US3 5.368.000 MHz
US4 5.373.000 MHz
US5 5.405.000 MHz
To operate on the 60-meter band channels, press the V/
M key, if necessary, to enter the Memory mode, then ro-
tate CLAR/VFO-B knob to select the desired channel
from the above selections.
Be sure to observe all current regulations regarding Effec-
tive Radiated Power (E.R.P.) while operating on the 60-
meter band.
CLAR/VFO-B knob
V/M switch
