Page 124 FTDX9000D OPERATION MANUAL

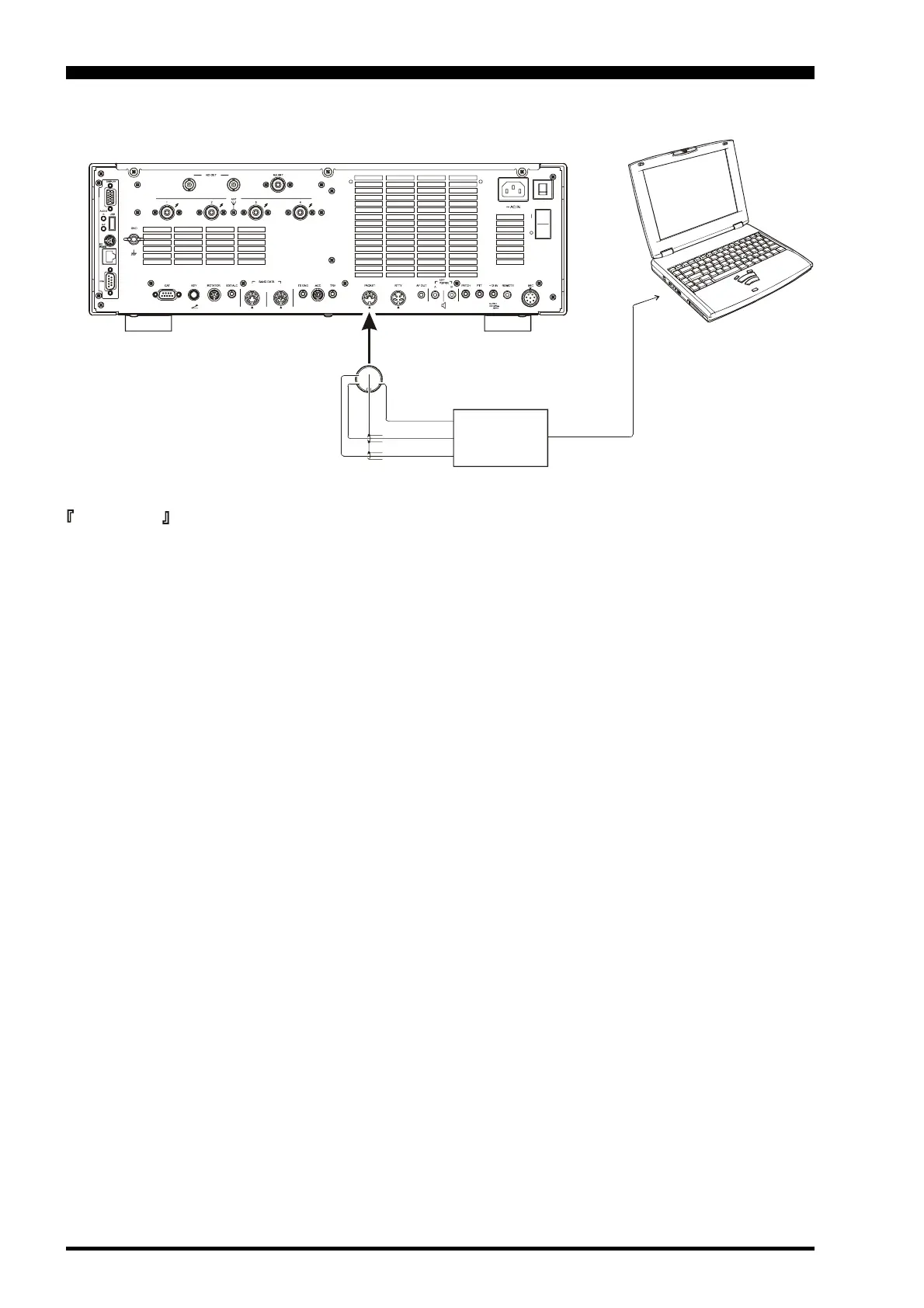

The FT DX 9000 may also me used for a host of other SSB-based Data modes. Please set up your system using the
illustration as a guideline.
M
ISCELLANEOUS
AFSK-
BASED
D
ATA
M
ODES
Quick Point
When you have configured Menu item TX GNRL 159
VOX SELECT to “DATA,” the transceiver will operate
in a “VOX” mode, and it is not necessary to connect a
“PTT” line. This maes for very convenient interfacing to
computer Sound Cards, etc.
①
⑤④
③
②
PACKET
DATA IN
21
COM PROT
LINE IN or MIC IN
DATA OUT
GND
PACKET PTT
LINE OUT or MIC OUT
A
B
To Next Page
