Page 97FTDX9000D OPERATION MANUAL

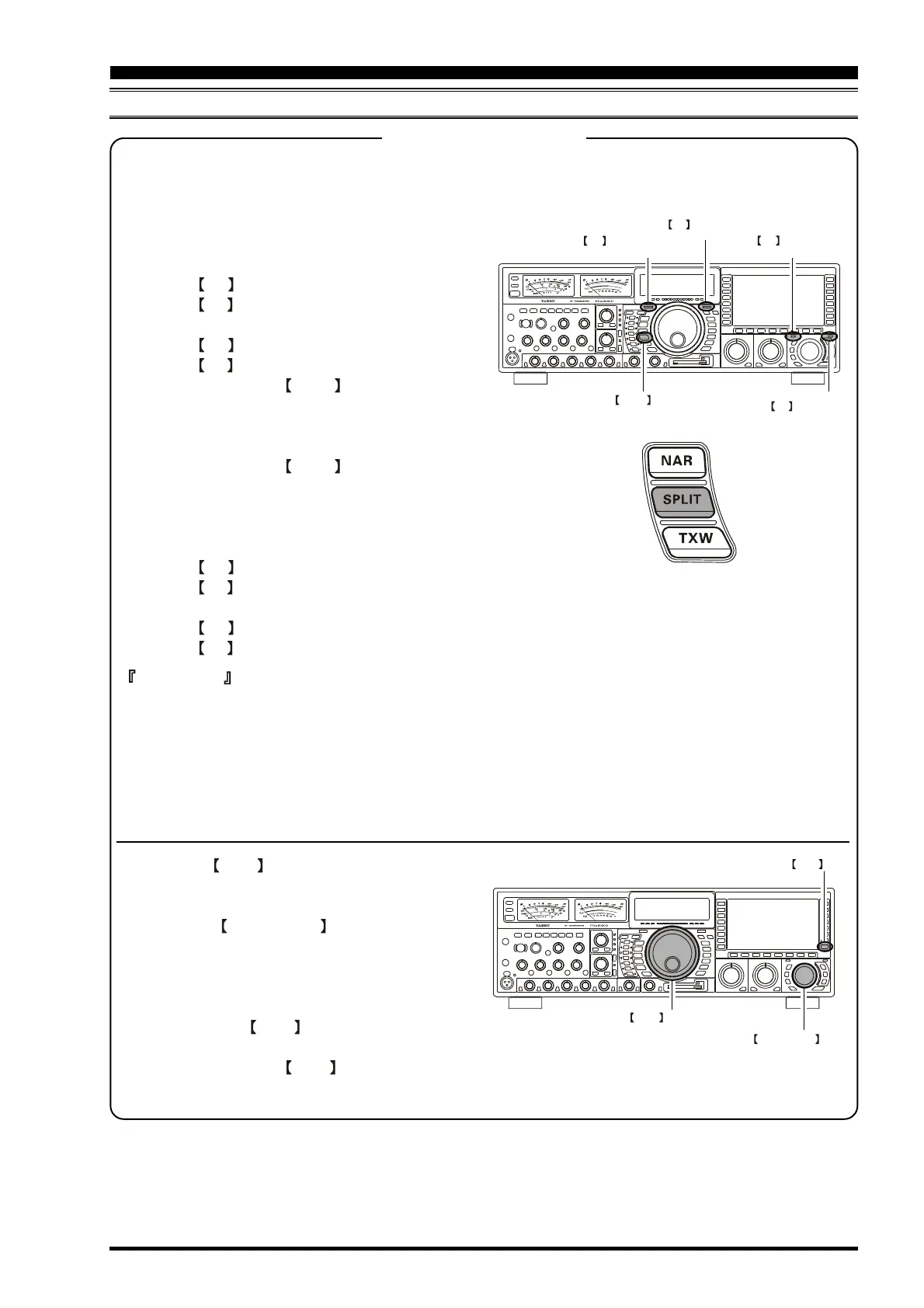

SPLIT-FREQUENCY OPERATION
CONVENIENT TRANSMITTER ACCESSORIES
Quick Split Operation
The Quick Split feature allows you to set a one-touch offset of +5 kHz to be applied to your radio’s transmit frequency
on the Sub VFO, compared to the Main (VFO-A) frequency.
1. Press the
MNU switch to enter the Menu mode.
2. Rotate the Main Tuning Dial to select Menu item
GENERAL 032 QUICK SPLIT FREQ.
3. Rotate the CLAR/VFO-B knob to select the de-
sired offset.
The available selections are
-20kHz ~ 0kHz ~ +20kHz (factory default: +5 kHz).
4. When you have completed all adjustments, press
and hold in the MNU switch for two seconds to
save the new setting and exit to normal operation.
If you only press the MNU key momentarily to
exit, any changes you performed will not be stored.
1. Start with regular transceiver operation on the Main
(VFO-A) band.
MAIN(VFO-A)
RX switch “ON” (LED glows Green)
TX switch “ON” (LED glows Red)
SUB(VFO-B)
RX switch “OFF” (LED Off)
TX switch “OFF” (LED Off)
2. Press and hold in the SPLIT switch for two sec-
onds to engage the Quick SPlit feature, and apply a
frequency 5 kHz above the Main (VFO-A) fre-
quency to the Sub (VFO-B) frequency register.
Press and hold in the SPLIT switch for two sec-
onds to increment the Main (VFO-A) frequency to
+5 kHz.
The VFO configuration will then be:
MAIN(VFO-A)
RX switch “ON” (LED glows Green)
TX switch “OFF” (LED Off)
SUB(VFO-B)
RX switch “OFF” (LED Off)
TX switch “ON” (LED glows Red)
Quick Point
The operating mode applied to the Sub (VFO-B)
register will be the same as that in use on the Main
(VFO-A) register.
The offset of the Sub VFO from the Main VFO is
programmed via the Menu, and is set to +5 kHz at
the factory. Other offsets may be selected, however,
using the following procedure:
MAIN(VFO-A)
RX switch “ON”
(LED glows Green)
MAIN(VFO-A)
TX switch “OFF”
(LED Off)
SUB(VFO-B)
RX switch “OFF”
(LED Off)
SUB(VFO-B)
TX switch “ON”
(LED glows Red)
SPLIT switch
CLAR/VFO-B knob
MNU key
MAIN Tuning Dial
