2 - 16
SPEC
EC240000

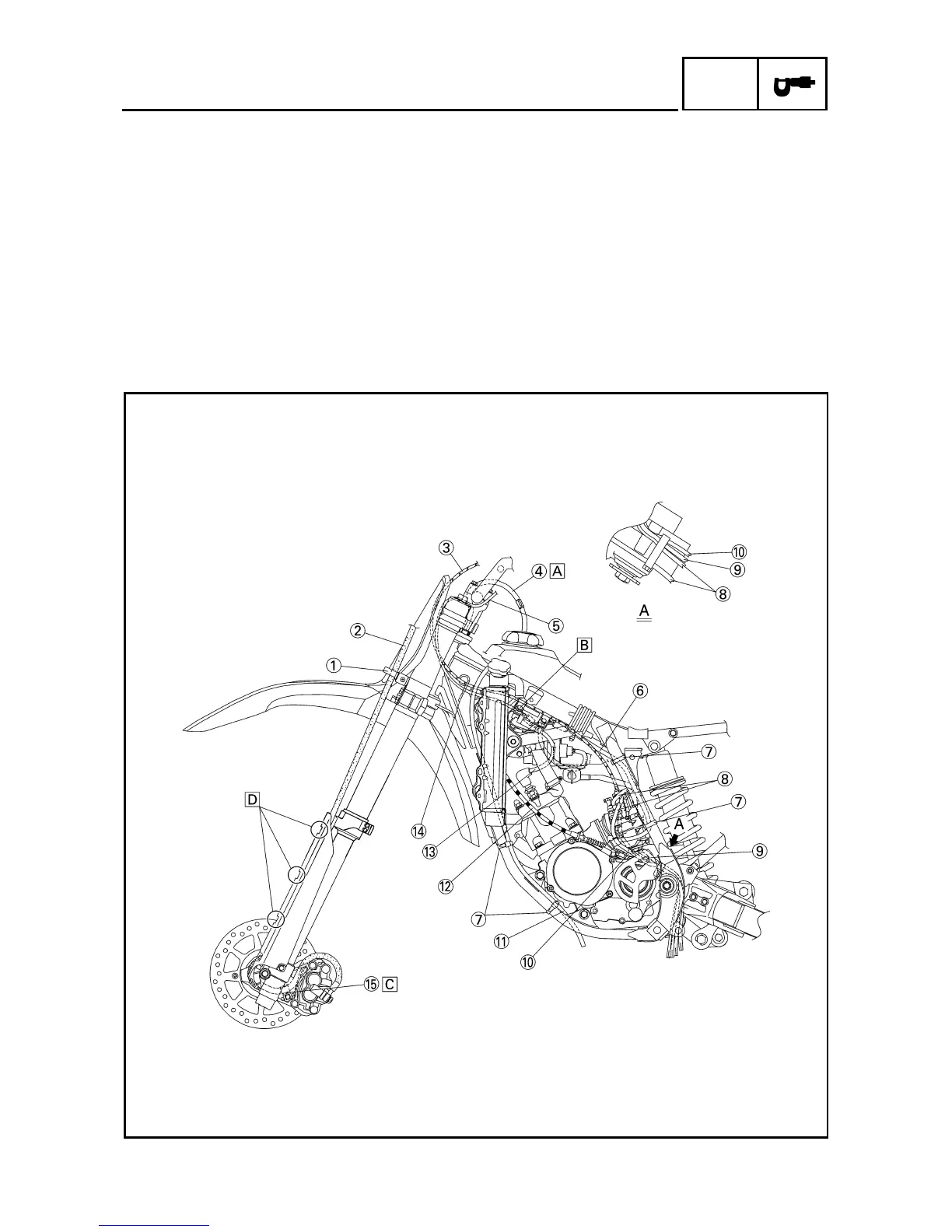

CABLE ROUTING DIAGRAM
1
Hose guide
2
Brake hose
3
Throttle cable
4
Fuel tank breather hose
5
Engine stop switch lead
6
CDI magneto lead
7
Clamp
8
Carburetor breather hose
9
Carburetor overflow hose
0
Transmission oil breather hose
A
Radiator breather hose
B
Clutch cable
C
Spark plug lead
D
Cable guide
E
Brake hose holder
È
Pass the fuel tank breather hose between the
handlebar and tension bar, then insert its end
into the hole of the steering stem.
É
Fasten the ground lead together with the ignition
coil.
Ê
Clamp the brake hose with the brake hose
holder.
Ë
Fit the brake hose into the guides of the protec-
tor.
CABLE ROUTING DIAGRAM
