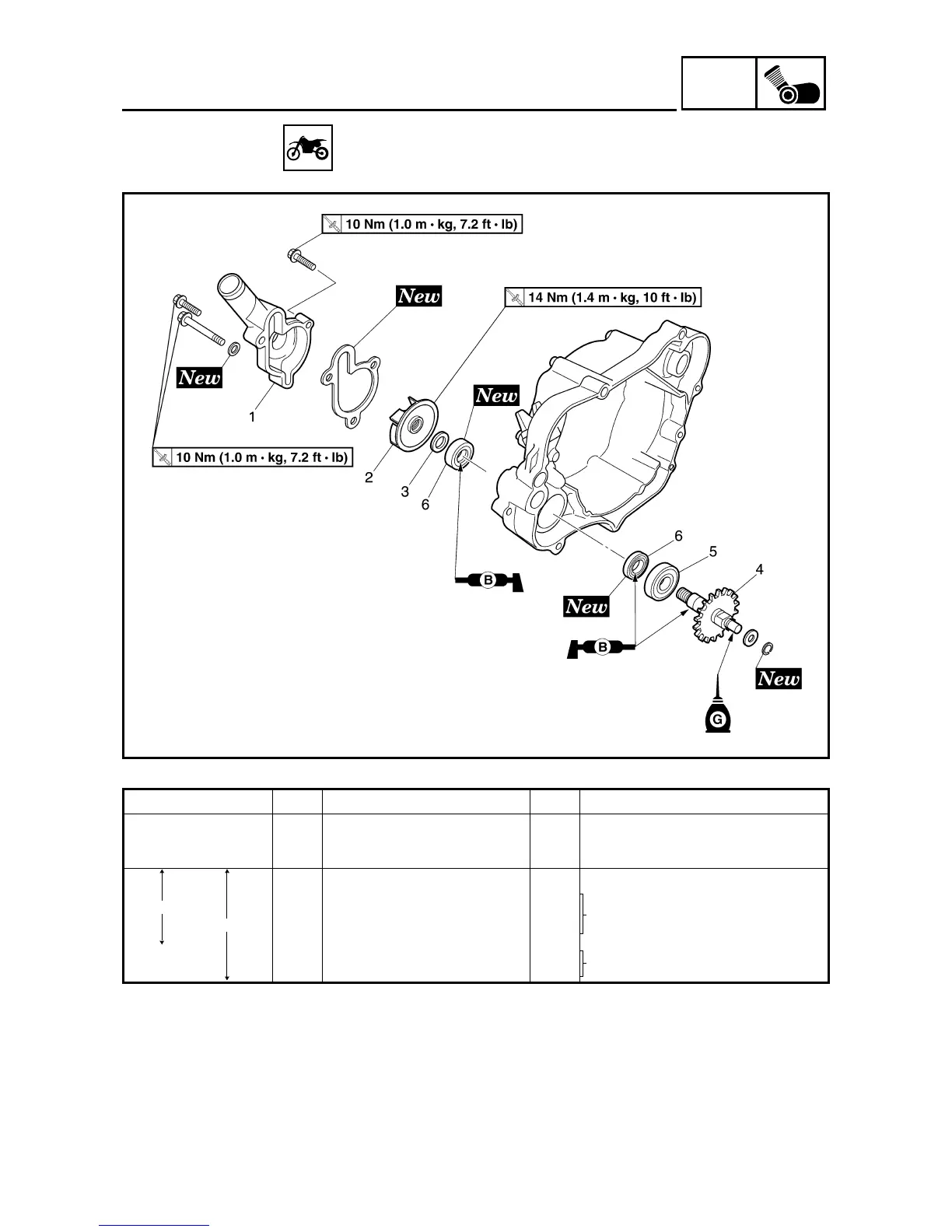

WATER PUMP
5PA41240
Extent of removal:
1
Impeller shaft removal
2
Oil seal removal
Extent of removal Order Part name Q’ty Remarks
WATER PUMP DISASSEMBLY
Preparation for removal Right crankcase cover Refer to “KICK SHAFT, SHIFT SHAFT
AND PRIMARY DRIVE GEAR” section.
1 Water pump housing 1
2 Impeller 1
Refer to “REMOVAL POINTS”.3 Washer 1
4 Impeller shaft 1
5 Bearing 1
Refer to “REMOVAL POINTS”.
6 Oil seal 2
1
2
WATER PUMP
