4 - 26
ENG
CLUTCH AND PRIMARY DRIVEN GEAR
EC490000
CLUTCH AND PRIMARY DRIVEN GEAR
EC498000
CLUTCH PLATE AND FRICTION PLATE
5PA40720
Extent of removal:
1
Clutch plate and friction plate removal

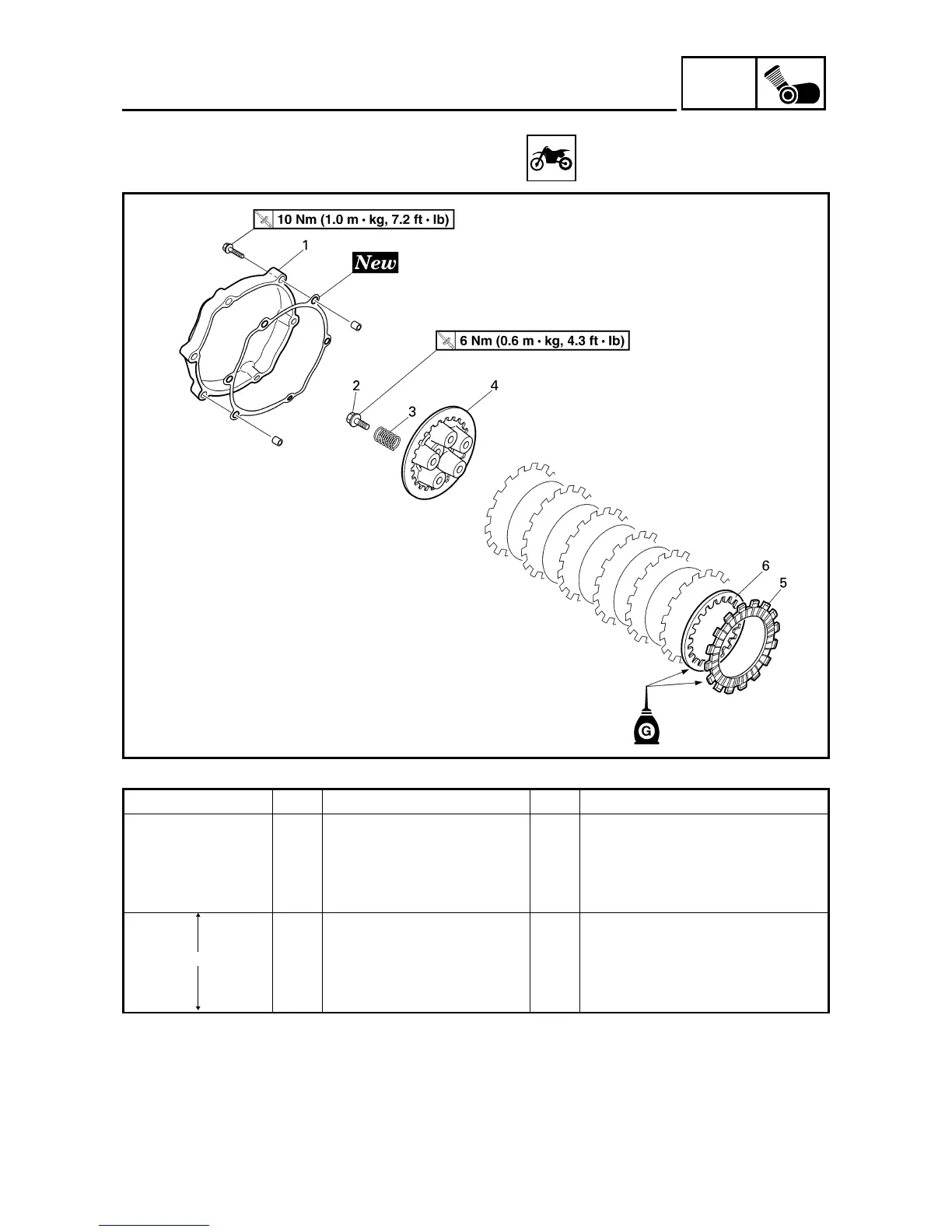

Extent of removal Order Part name Q’ty Remarks
CLUTCH PLATE AND FRIC-
TION PLATE REMOVAL
Preparation for removal Drain the transmission oil. Refer to “TRANSMISSION OIL
REPLACEMENT” section in the CHAP-
TER 3.
Clutch cable Disconnect at engine side.
1 Clutch cover 1
2 Bolt (clutch spring) 5
3 Clutch spring 5
4 Pressure plate 1
5 Friction plate 7
6 Clutch plate 6
1
To Next Page
