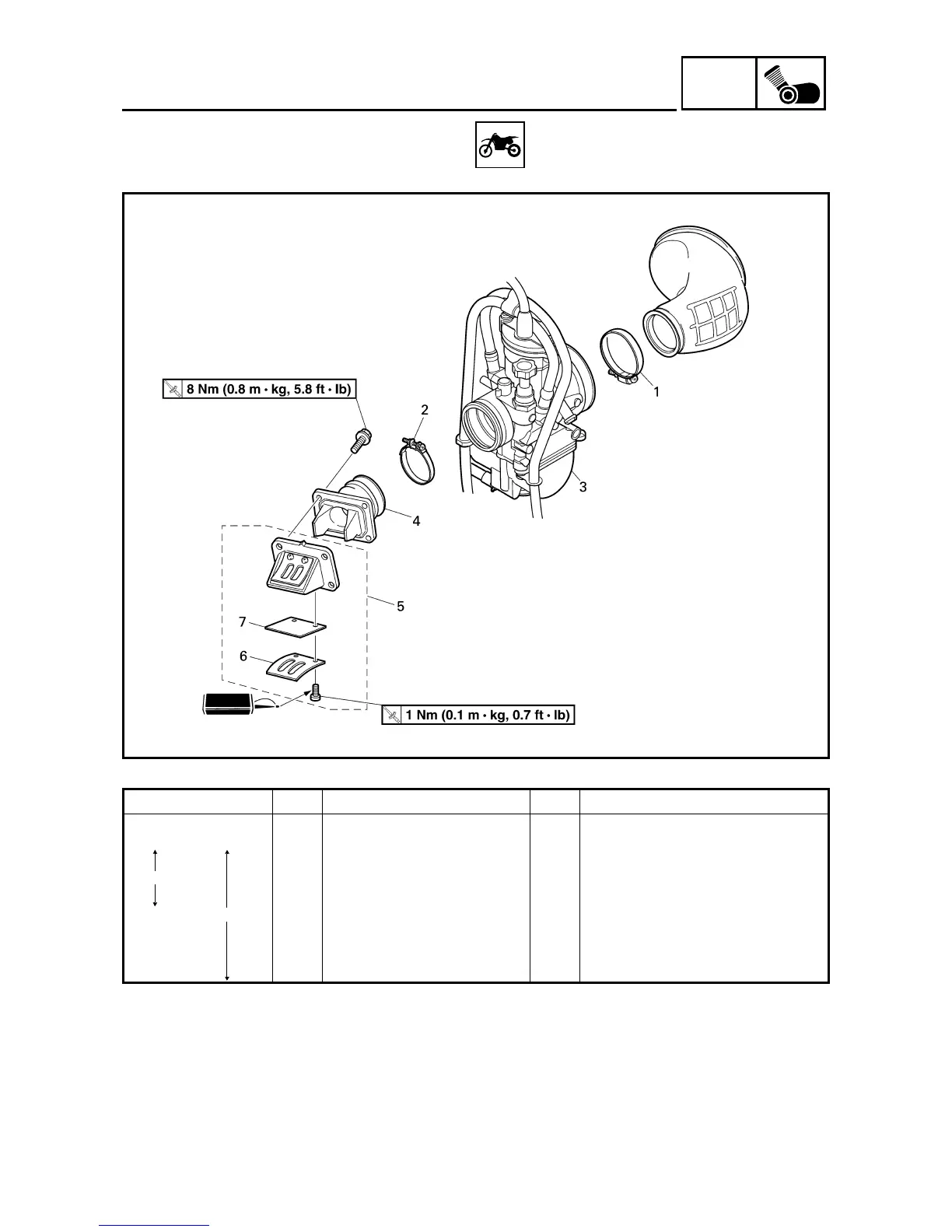

CARBURETOR AND REED VALVE
EC460000
CARBURETOR AND REED VALVE
5PA40090
Extent of removal:
1
Carburetor removal
2
Reed valve removal
Extent of removal Order Part name Q’ty Remarks
CARBURETOR AND REED
VALVE REMOVAL
1 Clamp (air filter joint) 1 Loosen the screw (air filter joint).
2 Clamp (carburetor joint) 1 Loosen the screw (carburetor joint).
3 Carburetor assembly 1
4 Carburetor joint 1
5 Reed valve assembly 1
6 Reed valve stopper 2
7 Reed valve 2
1
2
