4 - 2
ENG

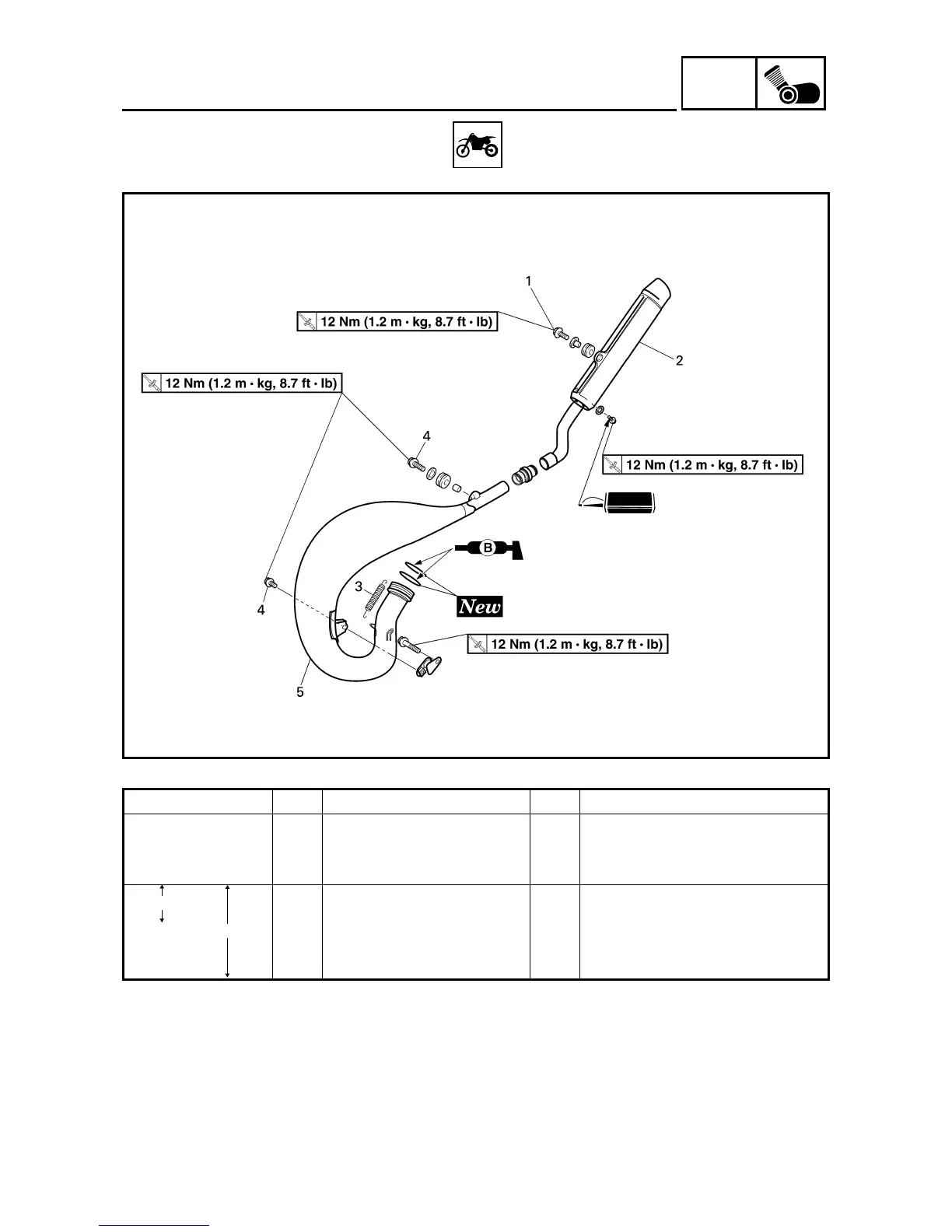

EXHAUST PIPE AND SILENCER
EC4S0000
EXHAUST PIPE AND SILENCER
5PA40020
Extent of removal:
1
Silencer removal
2
Exhaust pipe removal
Extent of removal
Order
Part name
Q
’
ty
Remarks
EXHAUST PIPE AND
SILENCER REMOVAL
Preparation for removal
Right side cover
Refer to
“
SEAT, FUEL TANK AND SIDE
COVERS
”
section.
1
Bolt (silencer)
1
2
Silencer
1
3
Exhaust pipe spring
2
4
Bolt (exhaust pipe)
2
5
Exhaust pipe
1
1
2
199
201
Table of Contents
Default Chapter
6
Important Notice
6
Description
12
Table of Contents
20
CHAPTER 1 General Information
26
Description
26
Machine Identification
28
Identification de la Moto
29
Important Information
30
Informations Importantes
31
Checking of Connection
36
Verification des Connexions
37
Special Tools
38
Outils Speciaux
40
Control Functions
44
Fonctions des Commandes
45
Fuel and Engine Mixing Oil
50
Melange Carburant Et Huile Moteur
51
Starting and Break-In
52
Mise en Marche Et Rodage
53
Torque-Check Points
56
Engine
58
Points de Verification de Couple de Serrage
59
Anzugsmomente Kontrollieren
60
Cleaning and Storage
62
Nettoyage Et Remisage
63
Chapter 2
66
General Specifications
66
Chassis
67
Engine
69
Maintenance Specifications
69
Chassis
73
Yz85
73
Yz85Lw
75
Definition of Units
80
Caracteristiques
81
General Torque Specifications
80
Caracteristiques Generales
81
Moteur
81
Caracteristiques D'entretien
84
Moteur
84
Yz85
88
Yz85Lw
90
Partie Electrique
94
Caracteristiques Generales de Couple
95
Definition des Unites
95
Allgemeine Technische Datens
96
Motoröl
96
Technische Daten
96
Wartungsdaten
99
Motor
99
Fahrwerk
103
Yz85
103
Yz85Lw
105
Elektrische Anlage
109
Allgemeine Anzugsmomente
110
Einheiten
110
Cable Routing Diagram
112
Cheminement des Cables
113
Moteur
113
Seilzugführung
113
Chapter 3
118
Maintenance Intervals
118
Programme D'entretien
121
Chassis
127
Engine
127
Pre-Operation Inspection and Maintenance
127
Controle Et Entretien Avant Utilisation
128
Engine
130
Moteur
131
Silencer Fiber Replacement
150
Chassis
152
Front Brake Pad Inspection/Replacement
156
Rear Brake Adjustment
156
Rear Shock Absorber Inspection
174
Electrical
192
Moteur
193
Partie Electrique
193
Ignition Timing Check
194
Ignition Timing Check
196
Chapter 4 Engine
198
Seat, Fuel Tank and Side Covers
198
Moteur
199
Selle, Reservoir de Carburant Et Caches Lateraux
199
Exhaust Pipe and Silencer
200
Tuyau D'echappement Et Silencieux
201
Radiator
202
Radiateur
203
Carburetor and Reed Valve
208
Carburateur Et Soupape Flexible
209
Cylinder Head, Cylinder and Piston
226
Culasse, Cylindre Et Piston
227
Cylinder Head/Cylinder/Piston
242
Clutch and Primary Driven Gear
248
Embrayage Et Pignon Mene Primaire
249
Clutch and Primary Driven Gear
260
Kick Shaft, Shift Shaft and Primary Drive Gear
262
Arbre de Kick, Arbre de Selecteur Et Pignon de Transmission Primaire
263
Water Pump
278
Pompe a Eau
279
CDI Magneto
286
Volant Magnetique CDI
287
Engine Removal
294
Depose du Moteur
295
Crankcase and Crankshaft
302
Carter Et Vilebrequin
303
Kolben
303
Kurbelgehäuse und Kurbelwelle
303
Schwungradmagnetzünder
303
Und Primärantriebszahnrad
303
Transmission, Shift Cam and Shift Fork
314
Getriebe, Schaltwalze und Schaltgabel
315
Chapter 5
326
Front Wheel and Rear Wheel
326
Chassis
326
Roue Avant Et Roue Arriere
327
Front Brake and Rear Brake
342
Frein Avant Et Frein Arriere
343
Front Fork
378
Fourche Avant
379
Handlebar
406
Steering
416
Swingarm
426
Frein Avant Et Frein Arriere
427
Roue Avant Et Roue Arriere
427
Swingarm
428
Bras Oscillant
429
Rear Shock Absorber
440
Amortisseur Arriere
443
Chapter 6 Electrical
450
Chapter 7
450
Electrical Components
450
Engine
450
Composants Electriques Et Schema de Cablage
451
Elektrische Bauteile und Schaltplan
451
Partie Electrique
451
Systeme D'allumage
453
Zündanlage
454
Motor
457
Volant Magnetique CDI
461
Reglage Einstellung
473
Carburetor Setting Depending on Symptom
474
Road Condition/Examples of Carburetor Setting
474
Einstellung
478
Front Fork Setting
486
Fourche Avant
487
Teleskopgabel Einstellen
487
Guidon
489
Teleskopgabel
489
Federbein
497
Suspension Setting
498
