5 - 1
CHAS
EC500000
CHASSIS
EC590000
FRONT WHEEL AND REAR WHEEL
EC598000
FRONT WHEEL
FRONT WHEEL AND REAR WHEEL

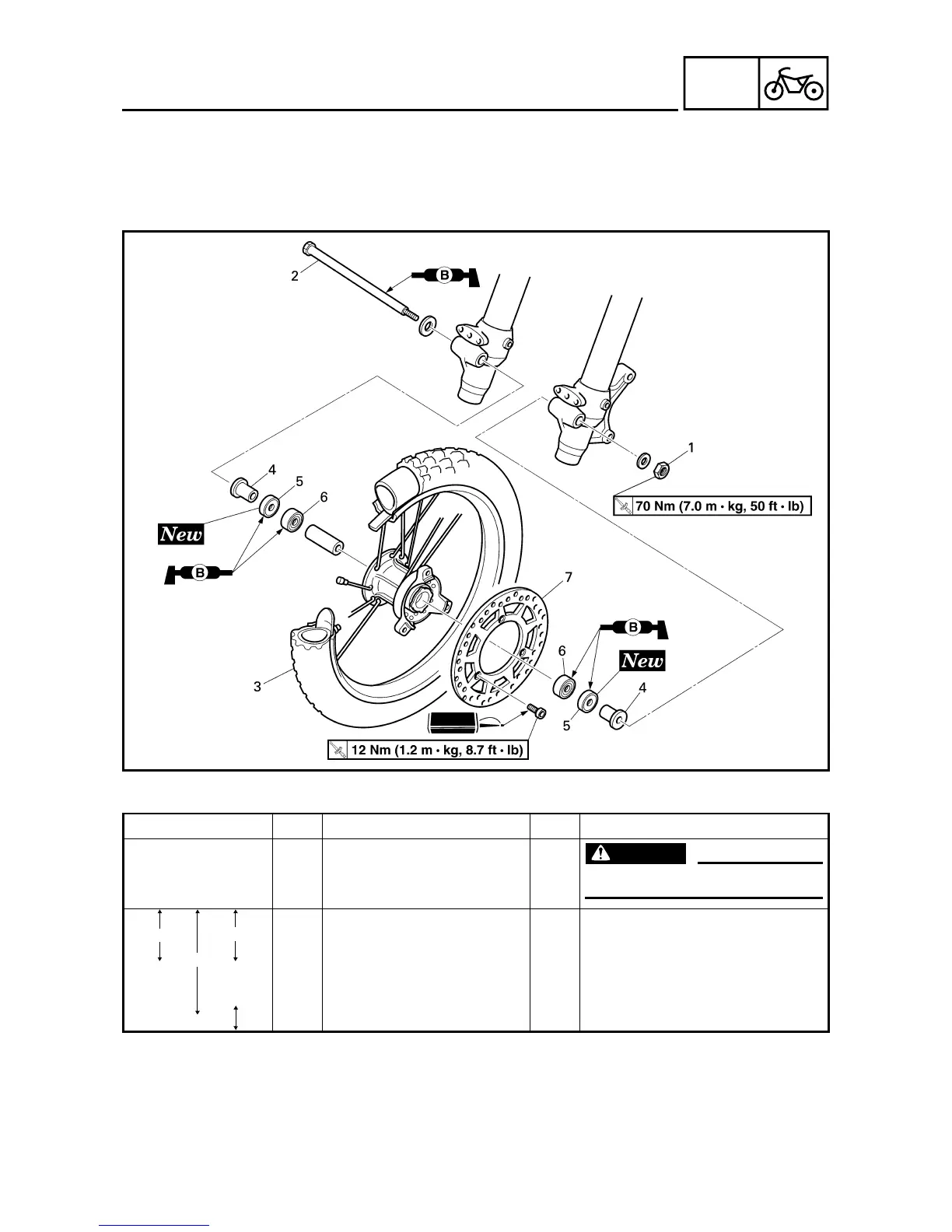

Extent of removal:
1
Front wheel removal
2
Wheel bearing removal
3
Brake disc removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removal
FRONT WHEEL REMOVAL
Hold the machine by placing the
suitable stand under the engine.
WARNING
Support the machine securely so there is no
danger of it falling over.
1 Nut (front wheel axle) 1
2 Front wheel axle 1
3 Front wheel 1
4 Collar 2
5 Oil seal 2
6 Bearing 2 Refer to “REMOVAL POINTS”.
7 Brake disc 1
2
3
1
3
5PA50010
To Next Page
