6 - 1
– +
ELEC

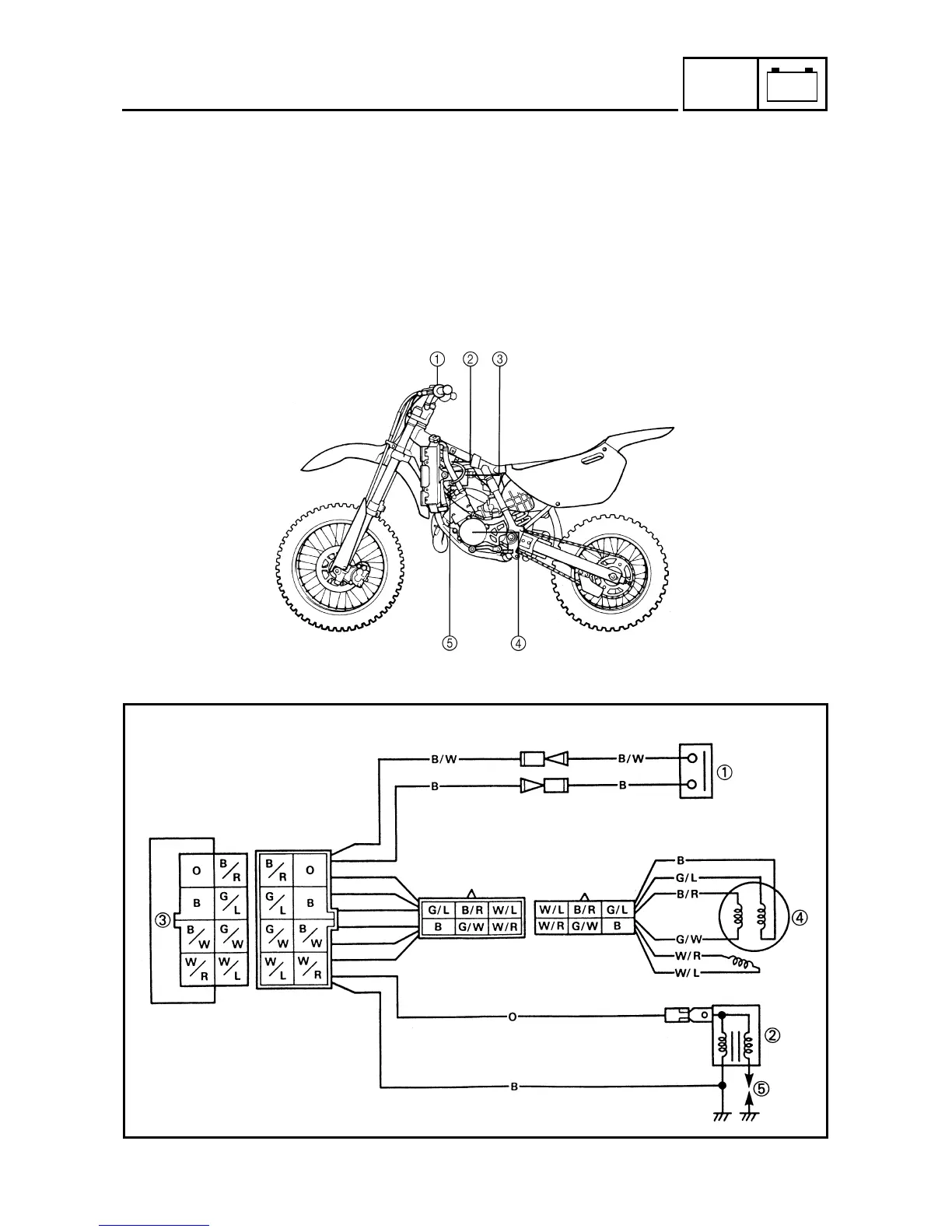

ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC600000
ELECTRICAL
EC610000
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC611000
ELECTRICAL COMPONENTS
1
Engine stop switch
2
Ignition coil
3
CDI unit
4
CDI magneto
5
Spark plug
COLOR CODE
B...................... Black
O ..................... Orange
B/R .................. Black/Red
B/W ................. Black/White
G/L................... Green/Blue
G/W ................. Green/White
W/L .................. White/Blue
W/R ................. White/Red
EC612000
WIRING DIAGRAM
5PA60010
5PA60020
