IMPORTANT INFORMATION
EC130000
IMPORTANT INFORMATION
EC131010
PREPARATION FOR REMOVAL AND
DISASSEMBLY

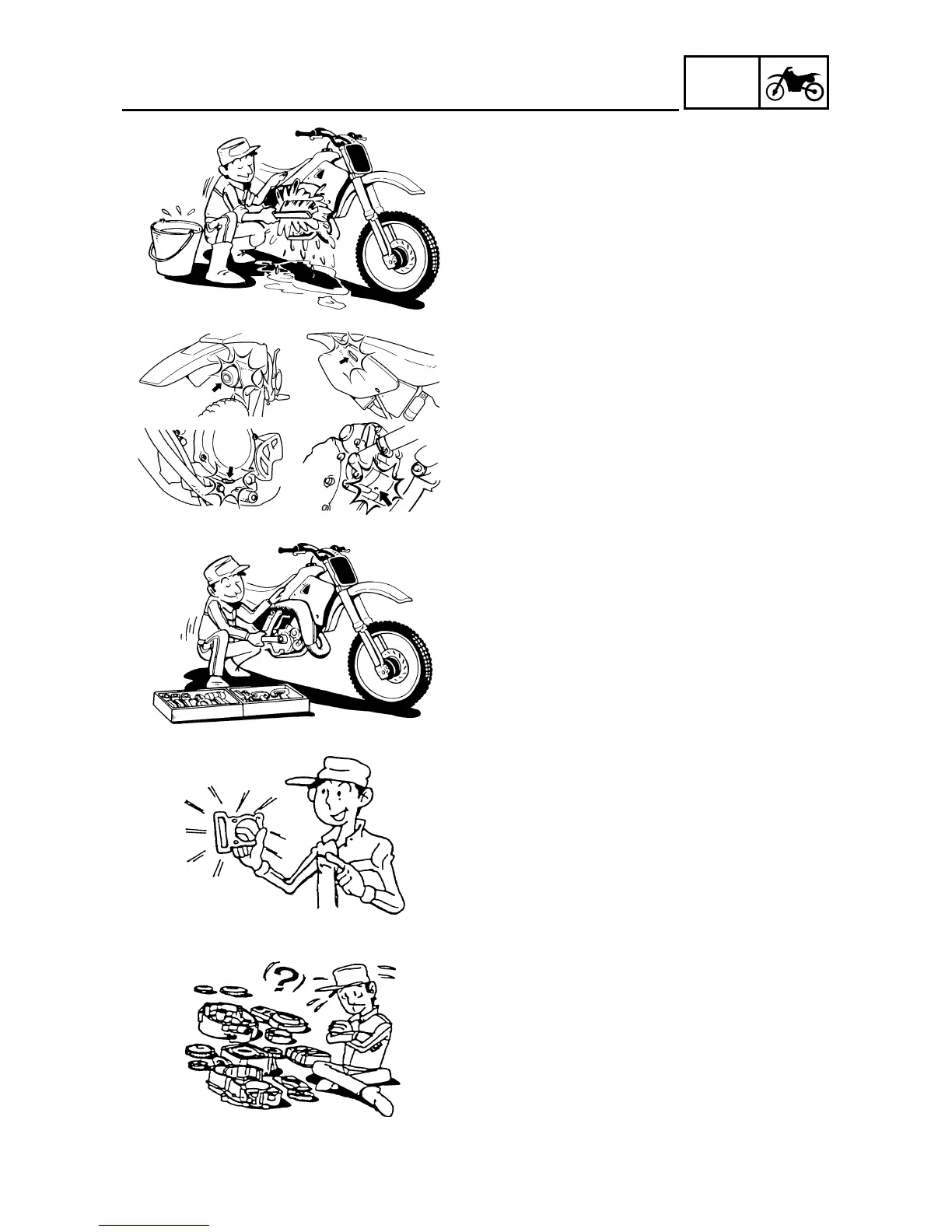

1. Remove all dirt, mud, dust, and foreign
material before removal and disassembly.
When washing the machine with high pres-
sured water, cover the parts follows.
●
Silencer exhaust port
●
Side cover air intake port
●
Crankcase cover hole at the bottom
●
Water pump housing hole at the bottom
5PA10070
5PA10080
2. Use proper tools and cleaning equipment.
Refer to “SPECIAL TOOLS” section.
5PA10090
3. When disassembling the machine, keep
mated parts together. They include gears,
cylinders, pistons, and other mated parts
that have been “mated” through normal
wear. Mated parts must be reused as an
assembly or replaced.
5PA10100
4. During the machine disassembly, clean all
parts and place them in trays in the order of
disassembly. This will speed up assembly
time and help assure that all parts are cor-
rectly reinstalled.
5. Keep away from fire.
5PA10110
