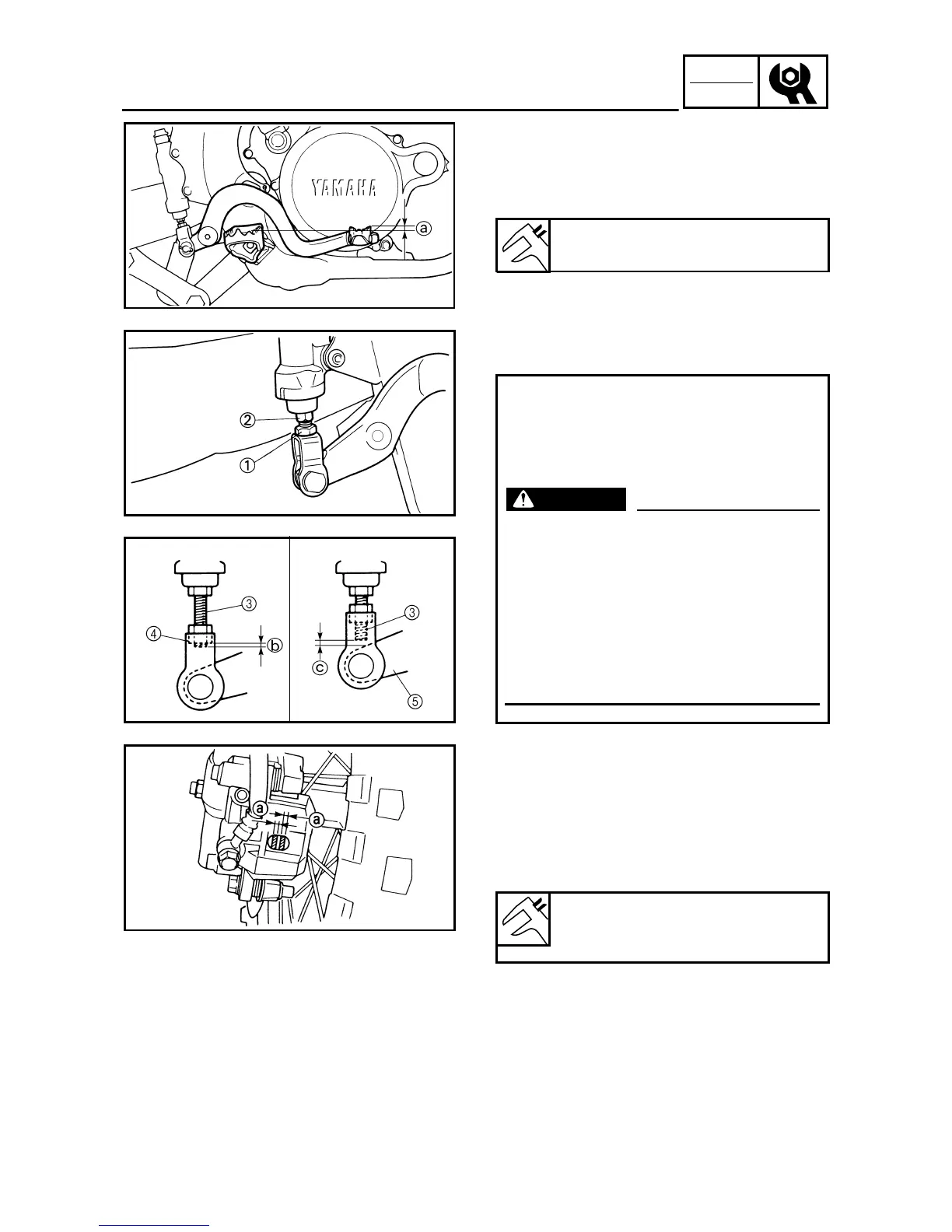

REAR BRAKE ADJUSTMENT/
FRONT BRAKE PAD INSPECTION AND REPLACEMENT
EC364002
REAR BRAKE ADJUSTMENT
1. Check:
●
Brake pedal height a
Out of specification → Adjust.
Brake pedal height
a
:
4 ~ 10 mm (0.16 ~ 0.39 in)
5PA30330
2. Adjust:
●
Brake pedal height
Pedal height adjustment steps:
●
Loosen the locknut 1.
●
Turn the adjusting nut 2 until the pedal
height a is within specified height.
●
Tighten the locknut.
WARNING
●
Adjust the pedal height between the
maximum
È
and the minimum
É
as
shown. (In this adjustment, the bolt
3
end
b
should protrude out of the lower
adjusting nut
4
but not be less than
2 mm (0.08 in)
c
away from the brake
pedal
5
).
●
After the pedal height adjustment, make
sure that the rear brake does not drag.
5PA30340
ÈÉ
5PA30350
FRONT BRAKE PAD INSPECTION AND
REPLACEMENT
1. Remove:
●
Rubber cap
2. Inspect:
●
Brake pad thickness a
Out of limit → Replace as a set.
Brake pad thickness:
4.0 mm (0.16 in)
<Limit>: 0.8 mm (0.03 in)
5PA30360
