5 - 58
CHAS
REAR SHOCK ABSORBER
EC580000

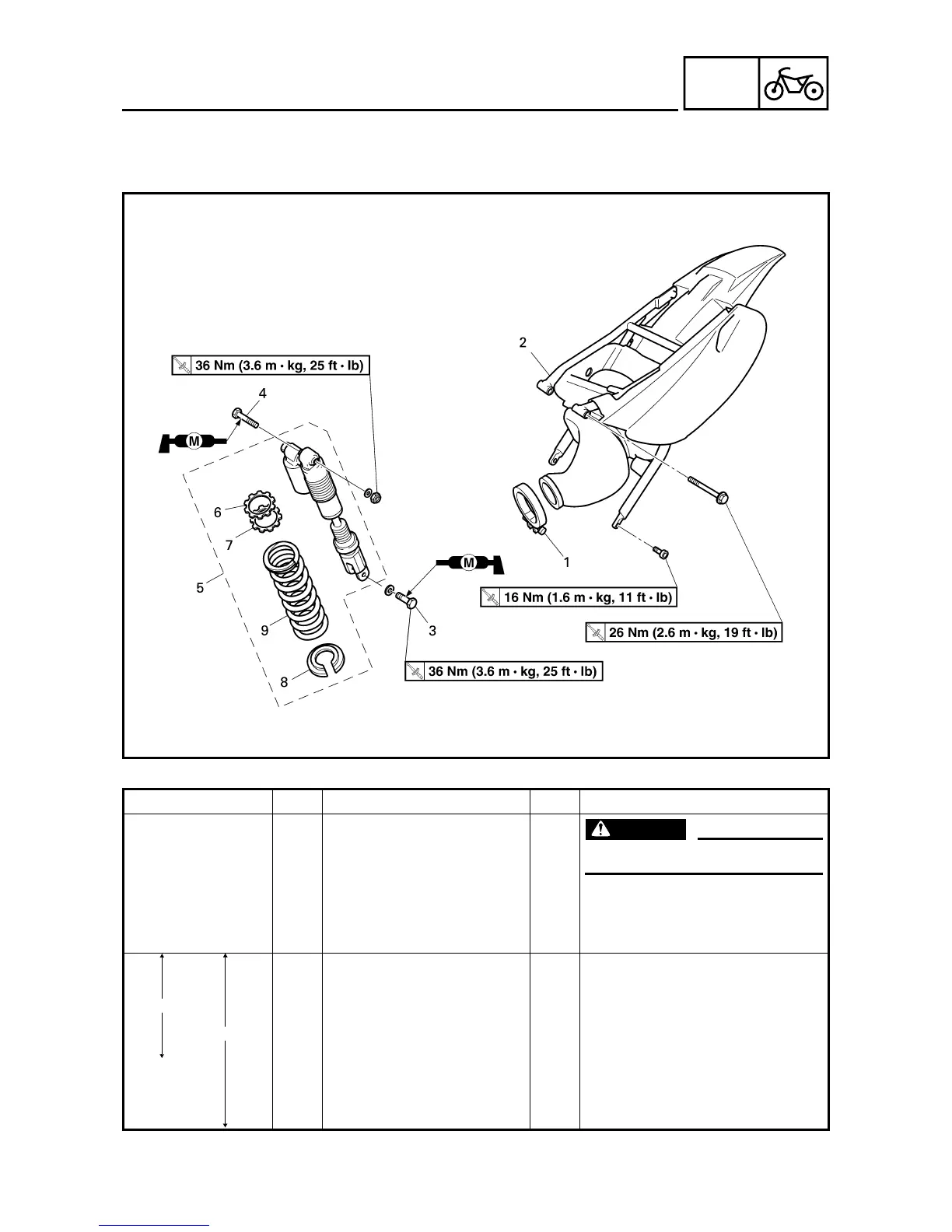

REAR SHOCK ABSORBER
5PA51870
Extent of removal:
1
Rear shock absorber removal
2
Rear shock absorber disassembly
Extent of removal Order Part name Q’ty Remarks
Preparation for removal
REAR SHOCK ABSORBER
REMOVAL
Hold the machine by placing the
suitable stand under the engine.
WARNING
Support the machine securely so there is no
danger of it falling over.
Seat Refer to “SEAT, FUEL TANK AND SIDE
COVERS” section in the CHAPTER 4.
Silencer Refer to “EXHAUST PIPE AND
SILENCER” section in the CHAPTER 4.
1 Clamp (air cleaner joint) 1 Only loosening.
2Rear frame 1
3 Bolt (rear shock absorber-relay
arm)
1 Hold the swingarm.
4 Bolt (rear shock absorber-frame) 1
5 Rear shock absorber 1
6 Locknut 1 Only loosening.
7 Adjuster 1 Only loosening.
8 Spring guide 1
9 Spring (rear shock absorber) 1
1
2
To Next Page
