5 - 27
CHAS
FRONT FORK
EC550000

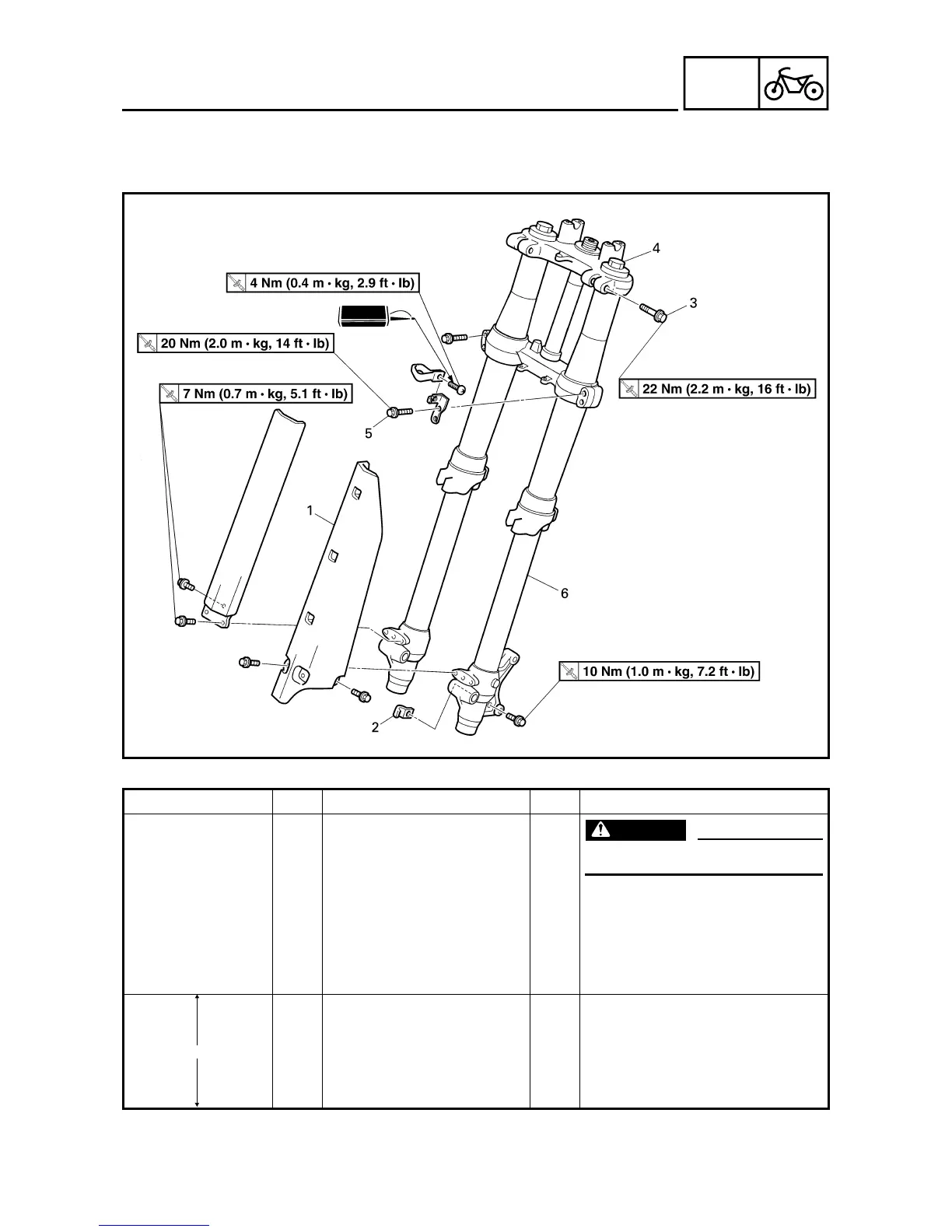

FRONT FORK
5PA50820
Extent of removal:
1
Front fork removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removal
FRONT FORK REMOVAL
Hold the machine by placing the
suitable stand under the engine.
WARNING
Support the machine securely so there is no
danger of it falling over.
Front wheel Refer to “FRONT WHEEL AND REAR
WHEEL” section.
Front brake caliper Refer to “FRONT BRAKE AND REAR
BRAKE” section.
Number plate
Handlebar Refer to “HANDLEBAR” section.
1 Protector 1
2 Brake hose holder 1
3 Pinch bolt (upper bracket) 1 Only loosening.
4 Cap bolt 1 Loosen when disassembling the front fork.
5 Pinch bolt (lower bracket) 2 Only loosening.
6 Front fork 1
1
To Next Page
