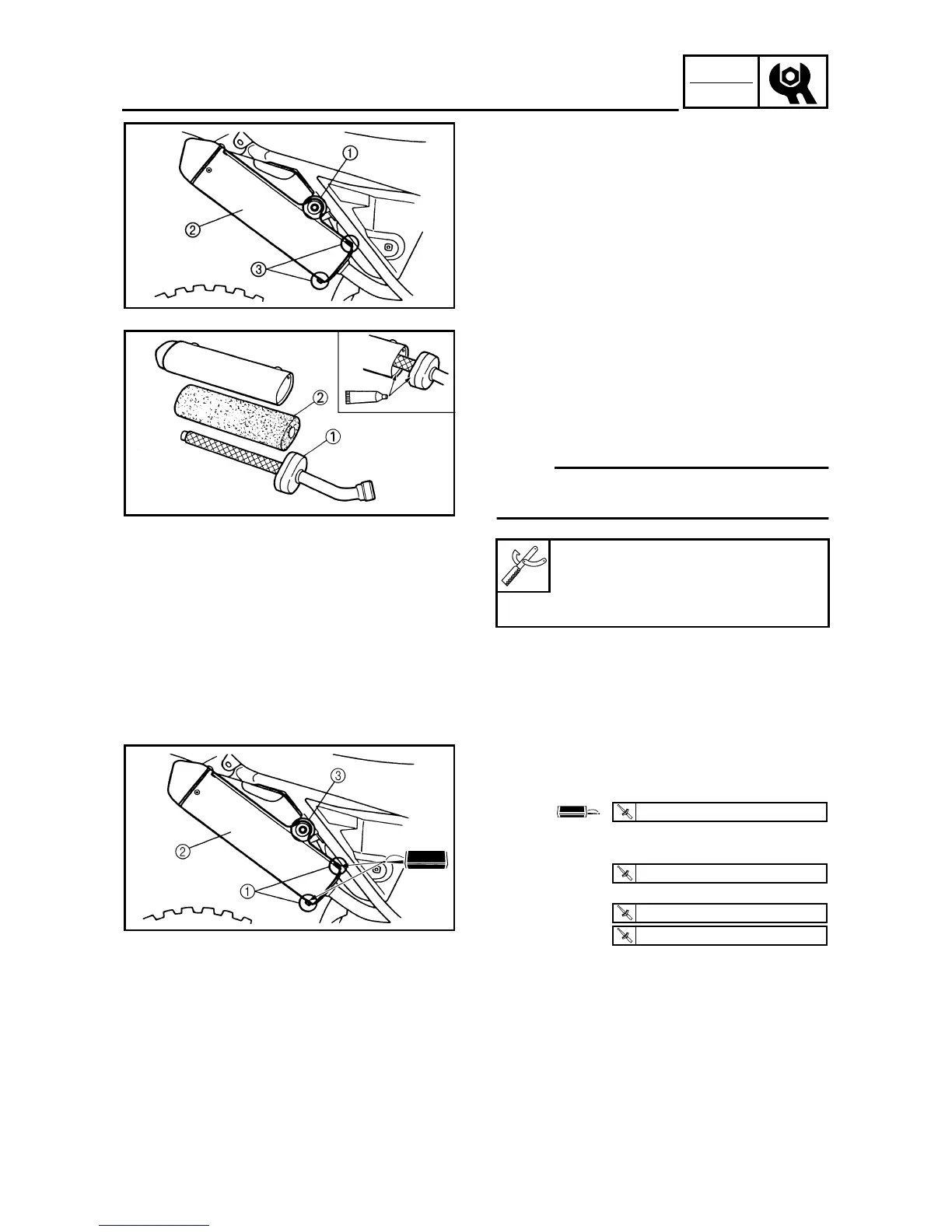

SILENCER FIBER REPLACEMENT
SILENCER FIBER REPLACEMENT
1. Remove:
●
Seat
●
Right side cover
●
Bolt (silencer) 1
●
Silencer 2
●
Bolt (fiber) 3
●
Washer
5PA30260
2. Remove:
●
Inner pipe 1
3. Replace:
●
Fiber 2
4. Install:
●
Inner pipe
NOTE:
Fully apply Quick gasket
®
(Yamaha bond
No.1215) or equivalent as shown.
Quick gasket
®
:
ACC-QUICK-GS-KT
YAMAHA Bond No.1215:
90890-85505
5PA30270
5. Install:
●
Washer
●
Bolt (fiber) 1
●
Silencer 2
●
Bolt (silencer) 3
●
Right side cover
●
Seat
5PA30280
T
R
.
.
12 Nm (1.2 m · kg, 8.7 ft · lb)
T
R
.
.
12 Nm (1.2 m · kg, 8.7 ft · lb)
T
R
.
.
7 Nm (0.7 m · kg, 5.1 ft · lb)
T
R
.
.
7 Nm (0.7 m · kg, 5.1 ft · lb)
