5 - 51
CHAS

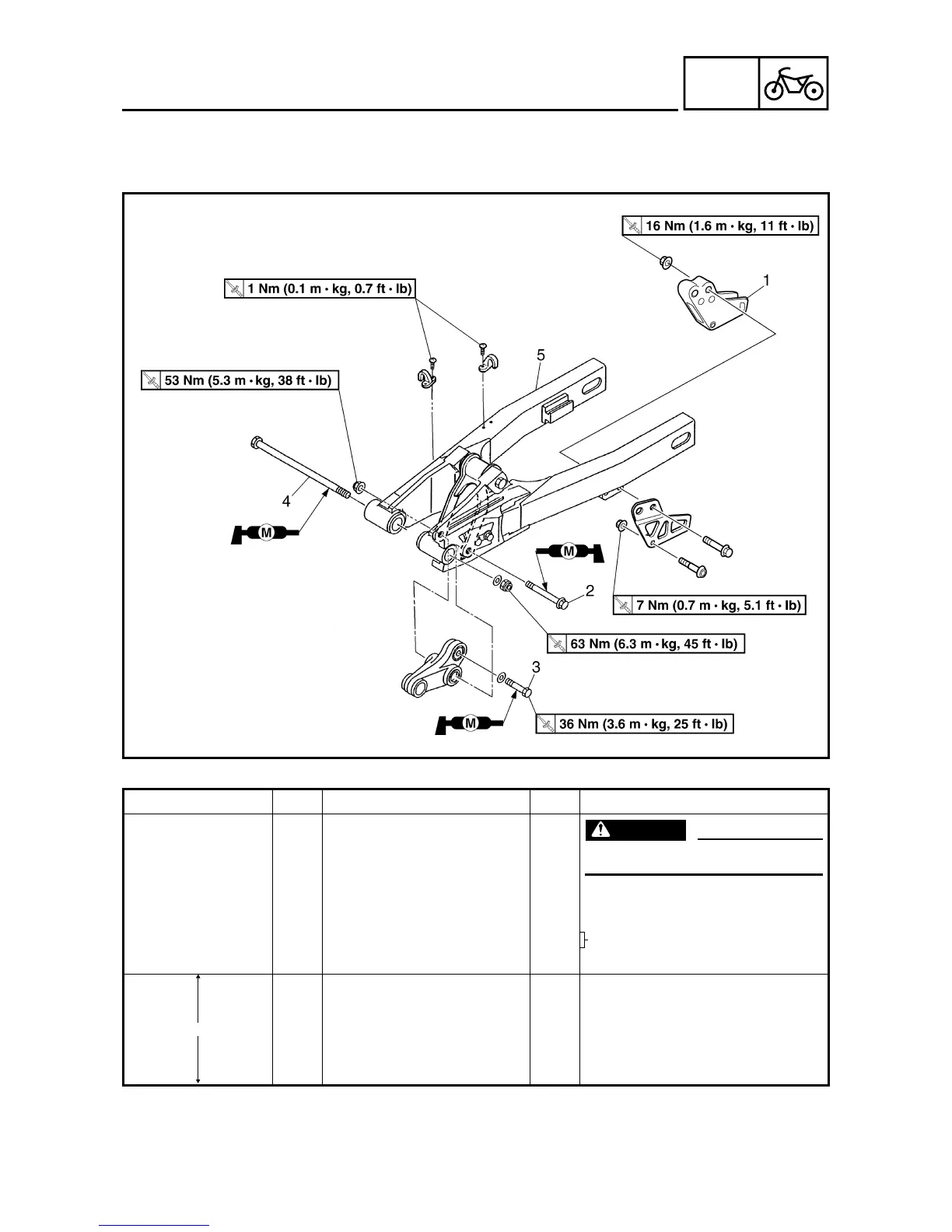

SWINGARM
EC570000
SWINGARM
5PAR0019
Extent of removal:
1
Swingarm removal
Extent of removal Order Part name Q’ty Remarks
SWINGARM REMOVAL
WARNING
Support the machine securely so there is no
danger of it falling over.
Preparation for removal Hold the machine by placing the
suitable stand under the engine.
Real wheel Refer to “FRONT WHEEL AND REAR
WHEEL” section.
Brake hose holder
Rear brake caliper
Drive chain
Refer to “FRONT BRAKE AND REAR
BRAKE” section.
1 Drive chain support 1
2 Bolt (connecting rod) 1 Hold the swingarm.
3 Bolt (rear shock absorber-relay
arm)
1
4 Pivot shaft 1
5 Swingarm 1
1
To Next Page
