4 - 45
ENG
EC4L0000

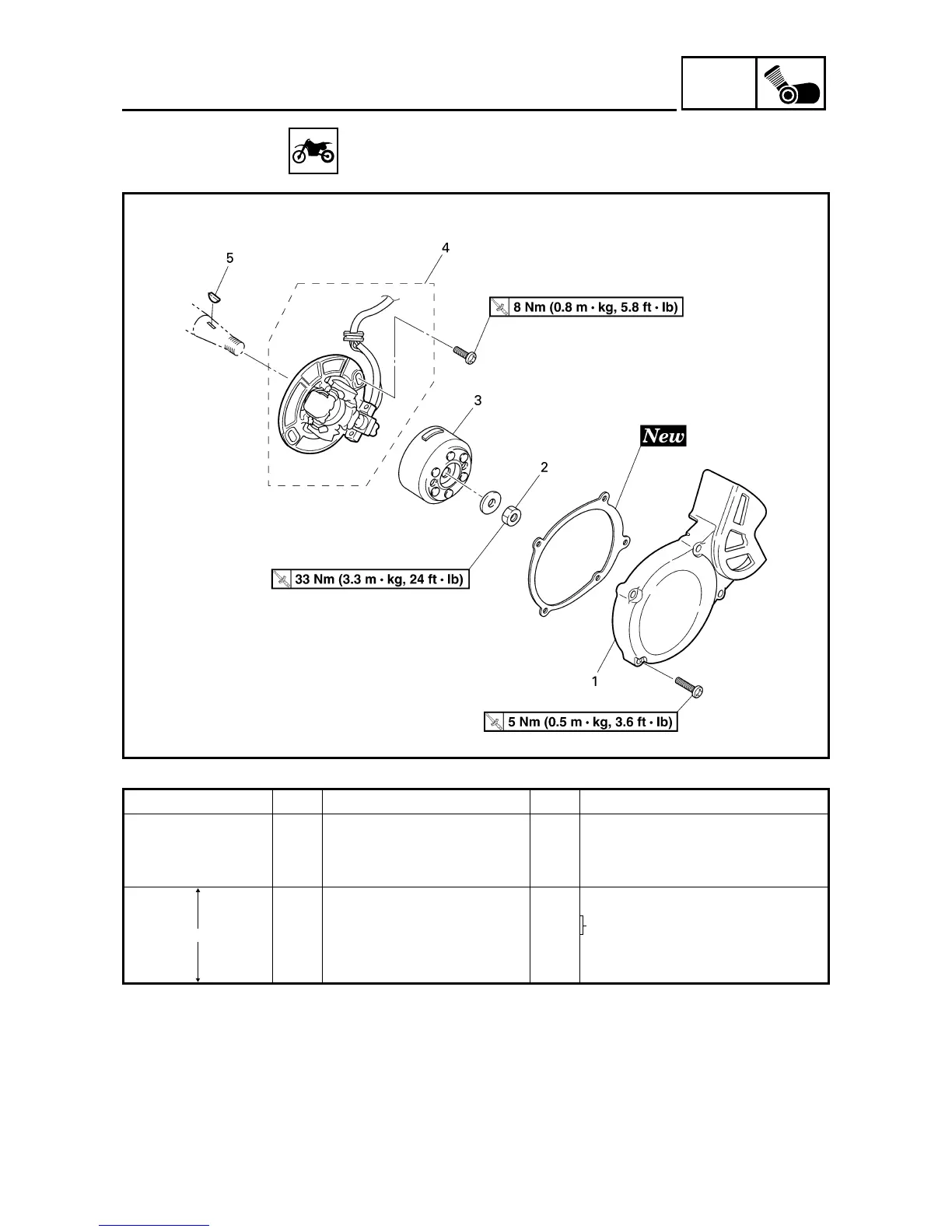

CDI MAGNETO
5
PA4
13
80
Extent of removal:
1
CDI magneto removal
Extent of removal
Order
Part name
Q
’
ty
Remarks
CDI MAGNETO REMOVAL
Preparation for removal
Seat and fuel tank
Refer to
“
SEAT, FUEL TANK AND SIDE
COVERS
”
section.
Disconnect the CDI magneto
lead.
1
Left crankcase cover
1
2
Nut
(rotor)
1
Use special tool.
Refer to
“
REMOVAL POINTS
”.
3
Rotor
1
4
Stator
1
5
Woodruff key
1
1
CDI MAGNETO
285
287
