140

RX-V3900/DSP-AX3900

W901

CB903

CB901

IC901

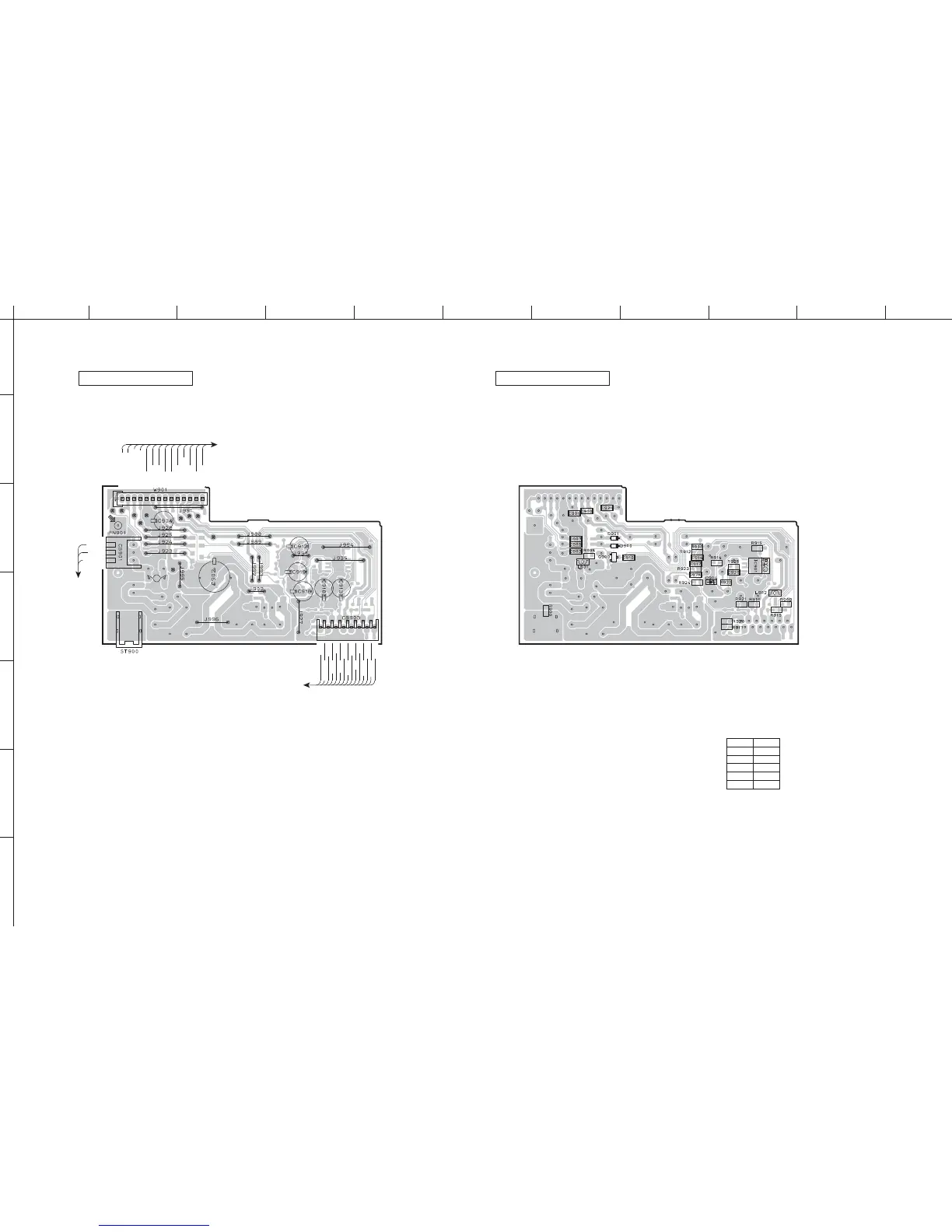

CONNECT (1) P.C.B. (Side A)

(+5D)

R926

-3.3HD

HDG

TUCE

TUDA

TUCK

PLLR

+5T

+12T

Comp

TUL

TUR

TMT

TUNED

/ST

HDRD_MISO

HDRD_MOSI

HDRD_N_RST

HDRD_SPDIF

HDG

+3.3HD

+12T

HDG

HDRDL

HD_A_REF

HDRDR

POWER (3)

(W8)

FUNCTION (1)

(CB401)

To HD radio tuner

U model

CONNECT (1) P.C.B. (Side B)

U model

• Semiconductor Location

Ref No. Location

D900 G3

D901 G3

D904 I4

IC901 I3

Q900 G3

Table of Contents1
Important Notice1
Critical Components Information2
Leakage Current Measurement (for 120V Models Only)2
Warning: Chemical Content Notice2
About Lead Free Solder2
To Service Personnel2
Warning: Lithium Batteries3
Front Panels3
Rear Panels5
Remote Control Panels9
Specifications10
- Dimensions12
- Select Menu13
- Set Menu Table/Manual Setup (GUI)14
Internal View16
- Removal of Top Cover17
- Removal of Front Panel17
- Removal of Sub Chassis Unit17
Disassembly Procedures17
- When Checking the Pcbs18
- Removal of A-Video PCB19
- Removal of D-Video PCB19
- When Checking the PCB21
- Removal of Rear Unit22
- Removal of Amp Unit24
Updating Firmware26
- Confirmation of Firmware Version and Checksum28
- Rom Ver/Sum28
Self-Diagnostic Function30
- Starting Self-Diagnostic Function in the Protection Cancel Mode33
- Display Provided When Self-Diagnostic Function Started34
- Canceling Self-Diagnostic Function34
- History of Protection Function36
- Display During Menu Operation37
- Operation Procedure of Main Menu and Sub-Menu37
- Functions in Self-Diagnostic Function Mode38
- Initial Settings Used to Start Self-Diagnostic Function38
- Input Change When Main Menu Is Selected38
- Details of Self-Diagnostic Function Menu39
- Analog Bypass40
- DSP Bypass40
- Speaker Set42
- HDMI Audio42
- Analog Switch Settings for each Sub-Menu43
- Multi CH Input44
- FL/OSD Check45
- Manual Test46
- Graphic (Display System)47
- FL Check47
- Checking FL Display Section47
- Zone Function Confirmation Item48
- R: Radio - Tuner and Satellite Broadcasting System49
- Sirius Test51
- HD Radio Test (U Model)52
- Universal - Special Terminal System (USB, Dock)53
- USB Check54
- Network Function System56
- Net Check56
- Ext Loopback Test59
- PHY Test59
- Communication and BUS Line Check Item, Etc.60
- Function PCB Check60
- DSP PCB Check61
- D-Video PCB Check62
- HDMI Information63
- EPROM Check64
- A-Video PCB Check64
- Digital Bypass65
- Rec Zone65
- Mute Check 1/266
- OSD Character Pattern66
- Test Pattern67
- Video Info67
- HDMI Loop-Back Test68
- D-Video PCB Route Check68
- HDMI to Hdmi_Out170
- CVBS to da and Hdmi_Out170
- CVBS to da and Hdmi_Out1 with DDR71
- Y/C to da and Hdmi_Out171
- Component_480P to da and Hdmi_Out172
- Component_720P to Hdmi_Out172
- YGV to da and Hdmi_Out173
- Power Supply System74
- System Monitor74
- LMTCNT (Limiter Control Value)75
- AMPPOW (Amp. Power Control)75
- OUTLVL (Power Limiter Output Level)75
- TM1/TM2 (Temperature Detection)75
- AMPRELAY (Amp. Power Relay Control)76
- Model76
- Destination76
- Panel Key (K0/K1)77
- Protection Hist.78
- System Setting Confirmation Item79
- Firm Update79
- Tool Update79
- Factory Preset80
- Set Info82
- Soft Sw82
- Confirmation of Idling Current of Amp Unit83
Amp Adjustment / Display Data83
- Display Data84
- Pin Connection84
- Grid Assignment84
- Anode Connection85
IC Data86
- Main Microprocessor PCB90
- Destination for AD Port / Model Distinction for AD Port96
- Rx-V390096
- DSP-AX3900 (J Model)96
- Expansion of Serial Parameter96
- Ic105: Ytd-446Cz (D-Video P.C.b.)97
- Ic114: Mb87L8760 (D-Videop.C.b)101
- Audio Section Block Diagram104
Block Diagrams104
- Video Section Block Diagram105
- D-Video Section Block Diagram106
- Power Section Block Diagram107
- Control Section Block Diagram108
Pin Connection Diagrams109
DSP PCB View112
Printed Circuit Boards112
- Function PCB View114
- Operation PCB View118
- Main PCB View122
- Power PCB126
- A-Video PCB View130
- D-Video PCB View132
- FL PCB View134
- Connect PCB View140
- DCCNVT PCB View142
- DSP Schematic145
Schematic Diagrams145
- Function Schematic148
- Operation Schematic152
- Main Schematic153
- Power Schematic154
- A-Video Schematic155
- D-Video Schematic157
- FL Schematic Diagram167
- Connect Schematic169
- DCCNVT Schematic170
- Electrical Component Parts171
Replacement Parts List171
- PCB DSP Parts172
- PCB Function Parts177
- PCB Operation Parts183
- PCB Main Parts185
- PCB Power Parts189
- PCB A-Video Parts192
- PCB D-Video Parts196
- PCB FL Parts203
- PCB Connect Parts205
- PCB DCCNVT Parts206
- Carbon Resistors207
- Overall Assy Exploded View208
- Overall Assy Parts List209
- Front Panel and Sub Chassis Unit Exploded View and Parts List211
- Amp Unit Exploded View and Parts List212
- Remote Control Schematic Diagram213
- Keys Layout - Remote Control215
- RAV36 Schematic Diagram216
- Remote Control ID Setting217
- Wake on RS-232C Access217
- Speaker Impedance217
- Advanced Setup217
- Bi-Amplifier Mode218
- Tuner Frequency Step218
- Parameter Initialization218
- MAC Address Filter218
- TV Format219
- HDMI Monitor Check219
- Language219
- Firmware Update219
- Resetting the System220
