Yamaha RX-V3900 Service Manual

71
RX-V3900/DSP-AX3900
RX-V3900/
DSP-AX3900

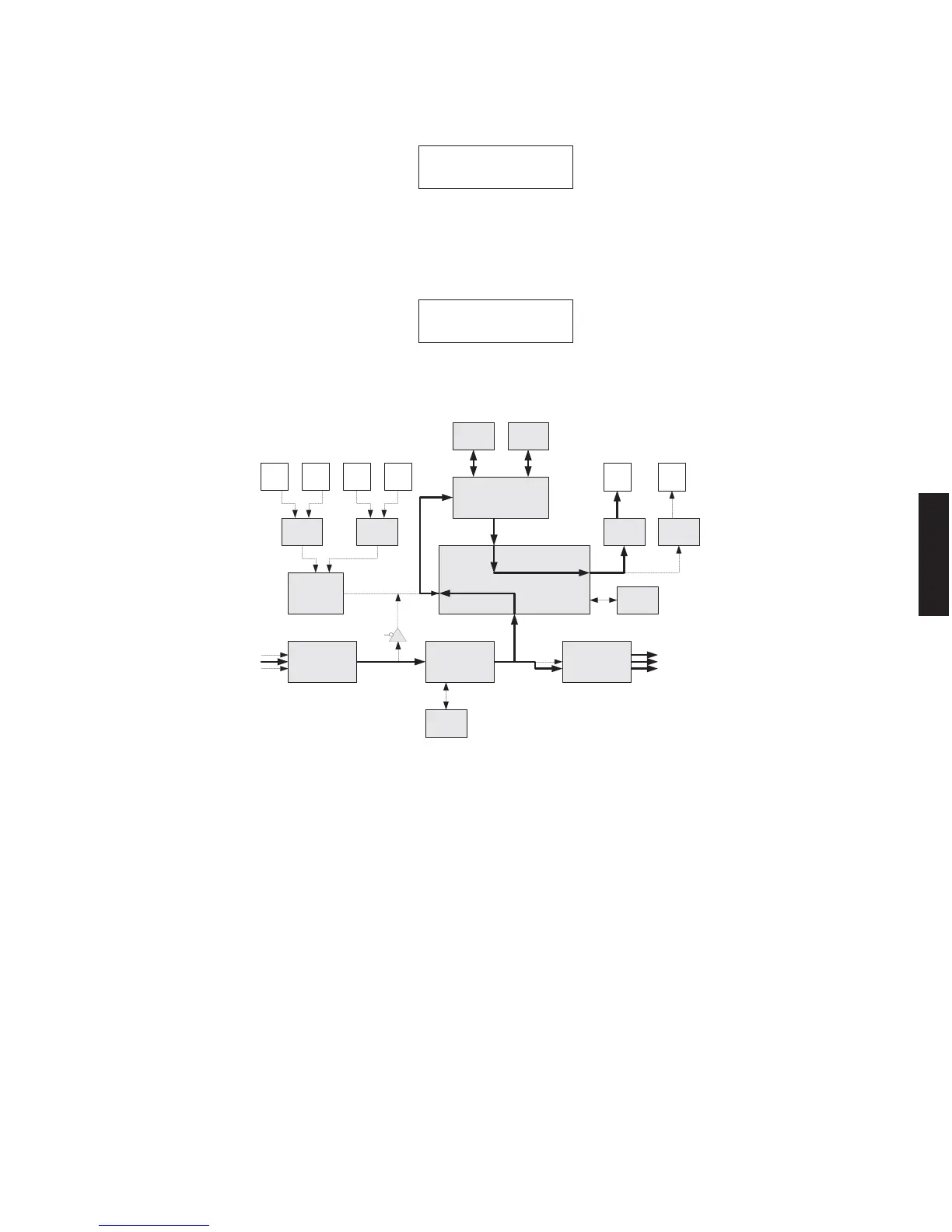

Y/C to DA and HDMI_out1
Y/CtoDAandHDMIout1
CVBS to DA and HDMI_out1 with DDR
Not applied to these models.
CVBStoDAandHDMIout1withDDR
このモデルには適用されません。
HDMI RX
SiI9135
I/P Scalar
ABT2010
Video Decoder
ADV7800-80
GUI
YGV619
Video Encoder
ADV7342
HDMI SW
SiI9185A
64Mbit
SDRAM
64Mbit
SDRAM
256Mbit
DDR2
256Mbit
DDR2
HDMI TX
SiI9134
HDMI TX
SiI9134
HDMI SW
SiI9185A
HDMI
IN1
HDMI
IN2
HDMI
IN3
HDMI
IN4
HDMI
OUT1
HDMI
OUT2
Y,CbCr
Y,C
CVBS
Y,CbCr
Y,C
CVBS
FPGA
EP2C8F256C8N
(I/O 182pin)
CB704
IC726
IC715
IC740
IC753IC752
IC729 IC732
IC727
IC751
IC701 IC714 IC702
IC728
CB705 CB706 CB707
CB708 CB709
IC737
V2.VIDEOROUTE
DIGITALY/C
V2.VIDEOROUTE
DIGITALCVBS2
