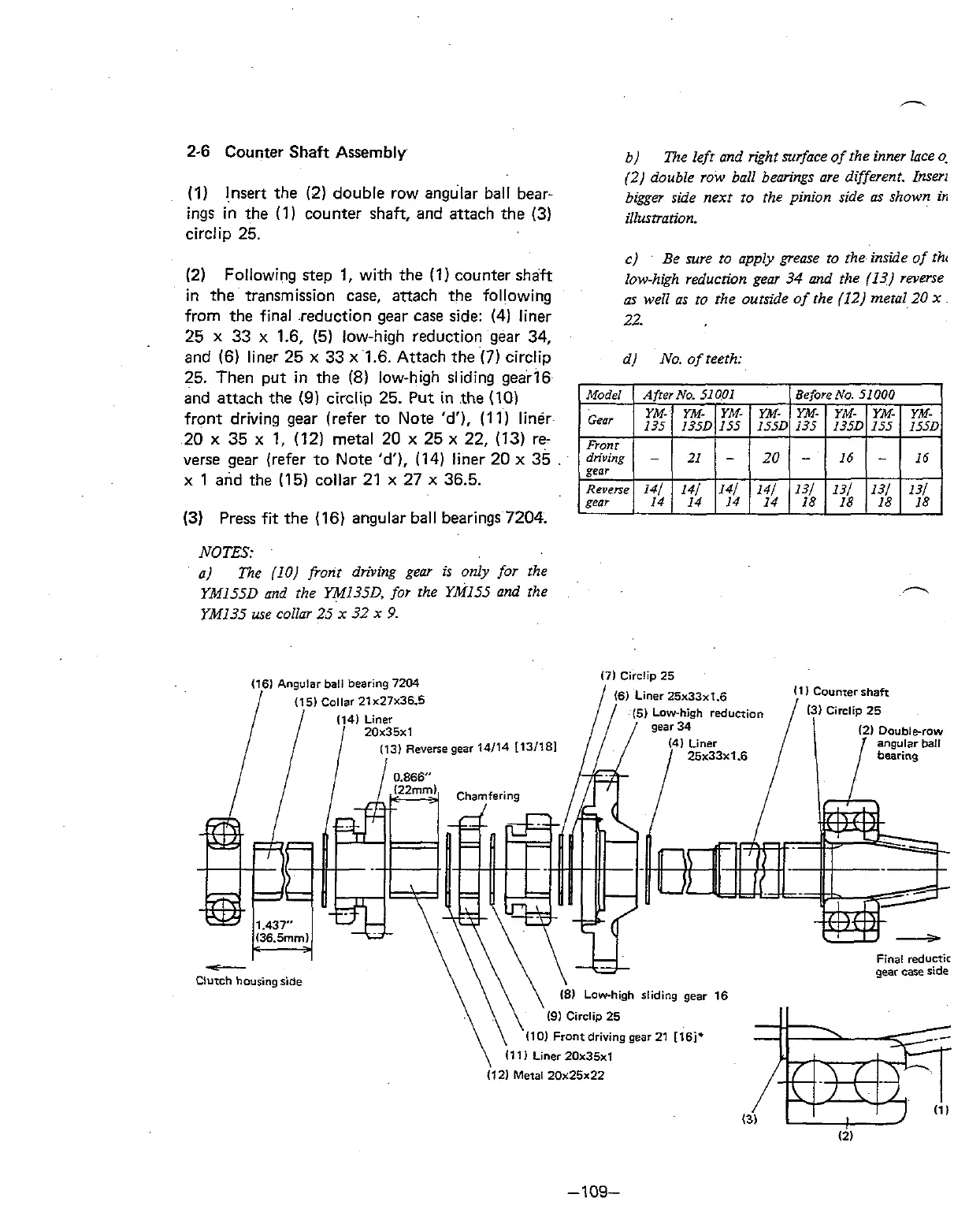

2-6 Counter Shaft Assembly
(1)
Insert the (2) double row angular ball bear-
ings in the
(1) counter shaft, and attach the (3)
circlip 25.
(2)
Following step 1, with the
(1) counter shaft
in the transmission case, attach the following
from the final reduction gear case side: (4) liner
25
x
33
x
1.6, (5) low-high reduction gear 34,
and (6) liner 25
x
33
x
1.6. Attach the
(7)
circlip
25. Then put in the
(8)
low-high sliding gear16
and attach the (91 circlip 25. Put in the (101
front driving gear (refer to Note 'd'), (11) liner
20
x
35
x
1, (12) metal 20
x
25
x
22,
(13)
re
verse gear (refer to Note
'd'),
(14)
liner 20
x
35
x
1 and the (15) collar 21
x
27
x
36.5.
(3)
Press fit the (16) angular ball bearings 7204.
b)
The left and right surface of the inner lace
0.
(2) double row ball bemMngs are different. Inserl
bigger side next ro the pinion side
as
shown
h
illustration.
C)
Be sure to apply grease to the inside of th(
low-high reduction gear
34
and the (13) reverse
as well as
ro
the outside of rhe (12) metal 20
x
d) No. of teeth.
NOTES:
a)
The (10) front driving gear is only for the
YM155D and the YMI35D, for rhe YMI55 and the
h
YM135 use collar 25 x
32
x
9.
171
Circlip
25
5)
Collar
21~27~36.5
Final
reductic
gear
care
side
I101
Front
driving gear 21 [16j'
11) Liner 20x35~1
112)
Metal
20x25~22
