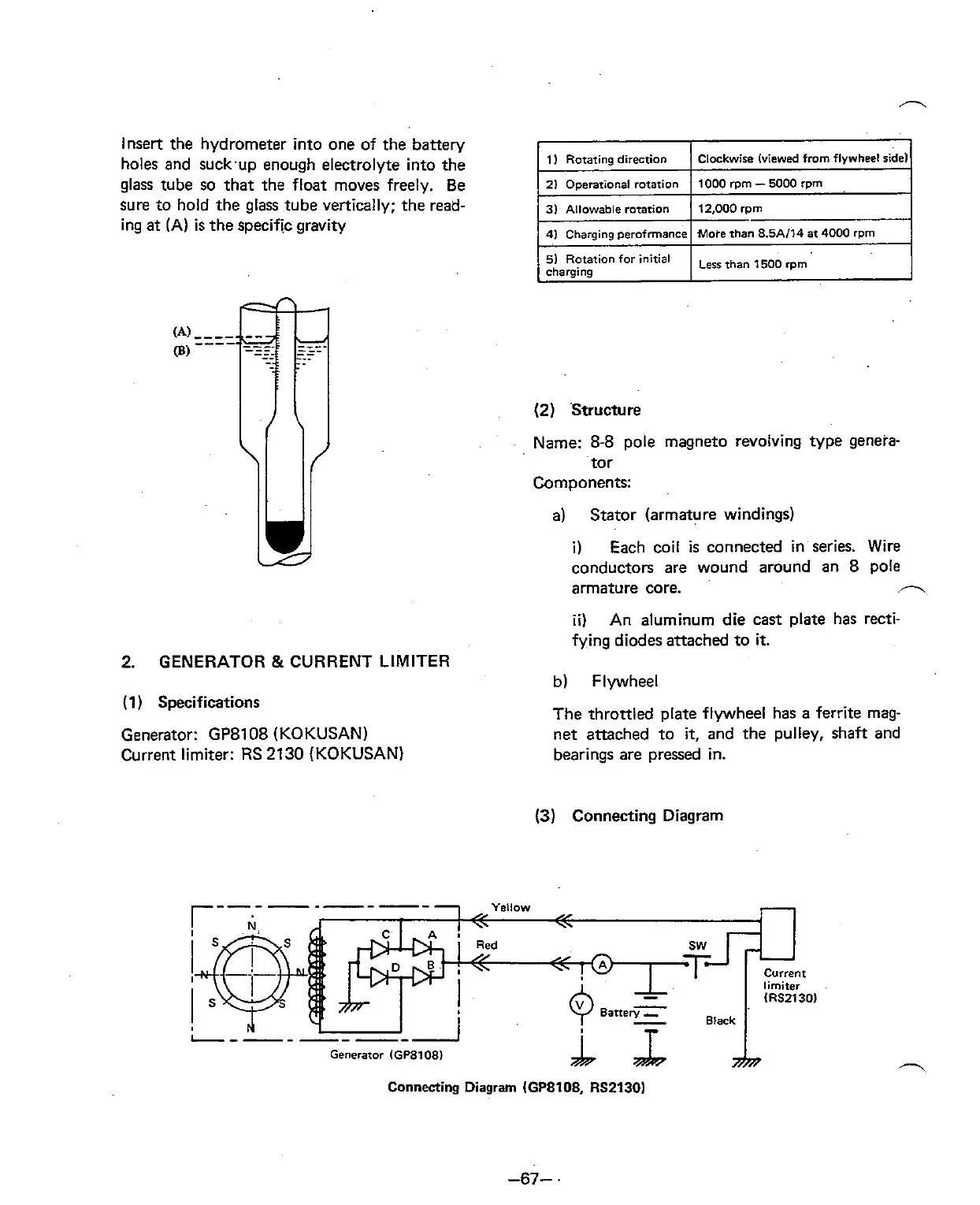

Insert the hydrometer into one of the battery
holes and
suckx~p enough electrolyte into the
glass tube so that the float moves freely. Be
sure to hold the glass tube vertically; the read-
ing at (A)
is the specific gravity
2. GENERATOR & CURRENT LIMITER
(1) Specifications
Generator:
GP8108 (KOKUSAN)
Current limiter: RS 2130 (KOKUSAN)
(2) 'Structure
11 Rotating direction
21 Operational rotation
3) Allowable rotation
4) Charging perofrmance
51 Rotation for initial
charging
Name: 8-8 pole magneto revolving type genera-
tor
Components:
Clockwise (viewed fmm flywheel ridel
1000 mm - 5000 rpm
12,000 rpm
Moie than 8.5A114 at 4000 rpm
than 1500 rpm
a) Stator (armature windings)
i) Each coil is connected in series. Wire
conductors are wound around an 8 pole
armature core.
A
ii)
An aluminum die cast plate has recti-
fying diodes attached to
it.
b) Flywheel
The throttled plate flywheel has a ferrite mag-
net attached to
it, and the pulley, shaft and
bearings are pressed in.
(3) Connecting Diagram
Connecting Diagram (GP8108, RS21301
