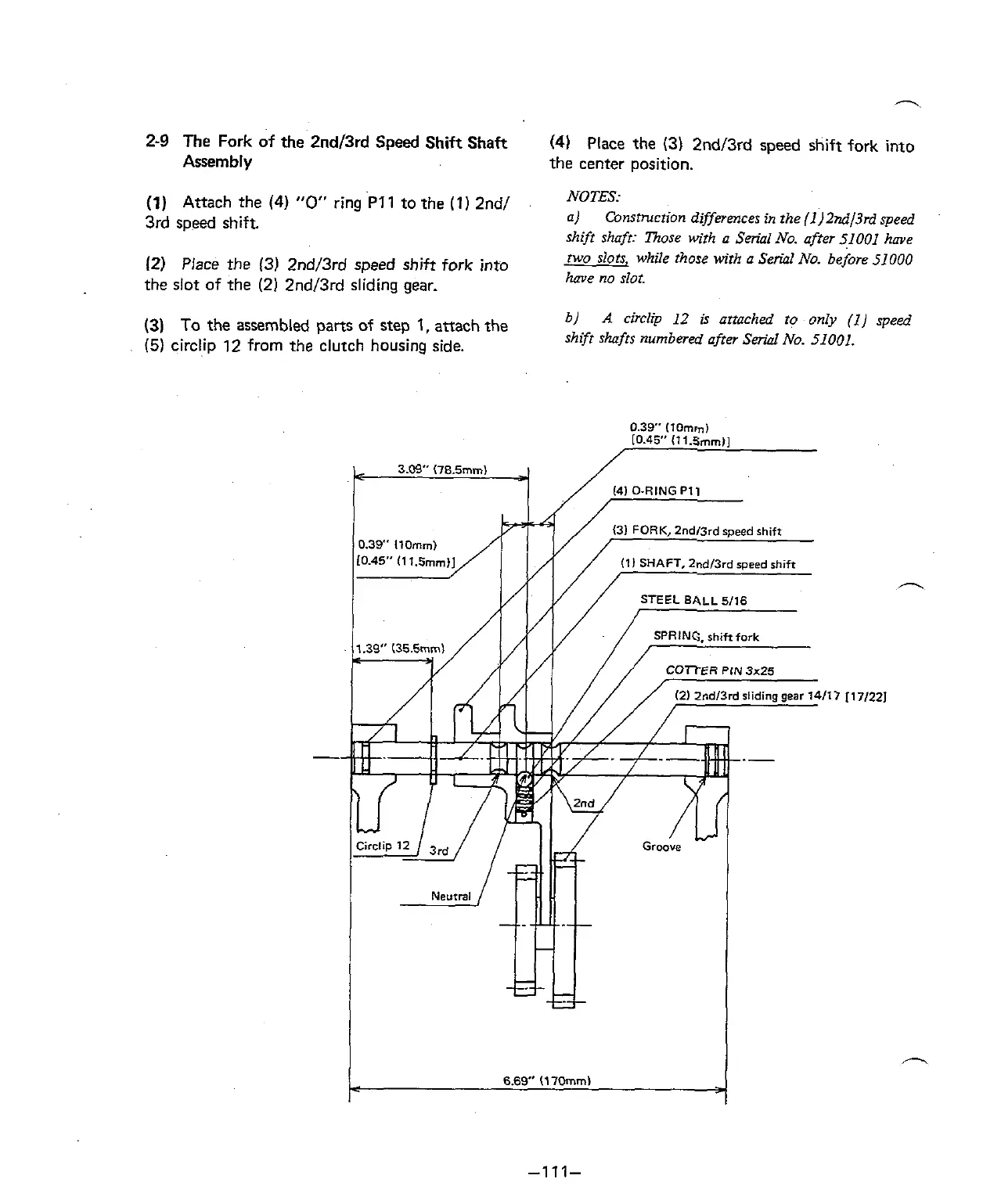

2-9 The Fork of the 2nd13rd Speed Shift Shaft
Assembly
(1) Attach the (4) "0" ring PI1 to the (I) 2nd/
3rd speed shift.
12) Place the (3) 2nd/3rd speed shift fork into
the slot of the
(2) 2nd13rd sliding gear.
(3) To the assembled parts of step 1, attach the
(5) circlip 12 from the clutch housing side.
(4) Place the (3) 2nd13rd speed shift fork into
the center position.
NOTES:
a)
Construction differences in the (I)2nd/3rd speed
shift
shafr: Those with a Serial No. after 51001 have
rwo slots, while those wirh a Serial No. before 51000
have no slot
b)
A circlip 12 is attached to only (I) speed
shift shafts numbered after Serial No.
5I001.
0.39 (10mm)
10.45" I1 l.Srnm)]
(41 O-RING Pll
(31 FORK, 2nd/3rd speed rhift
0.39 l10rnrn)
(1 SHAFT, 2nd13rd speed shift
