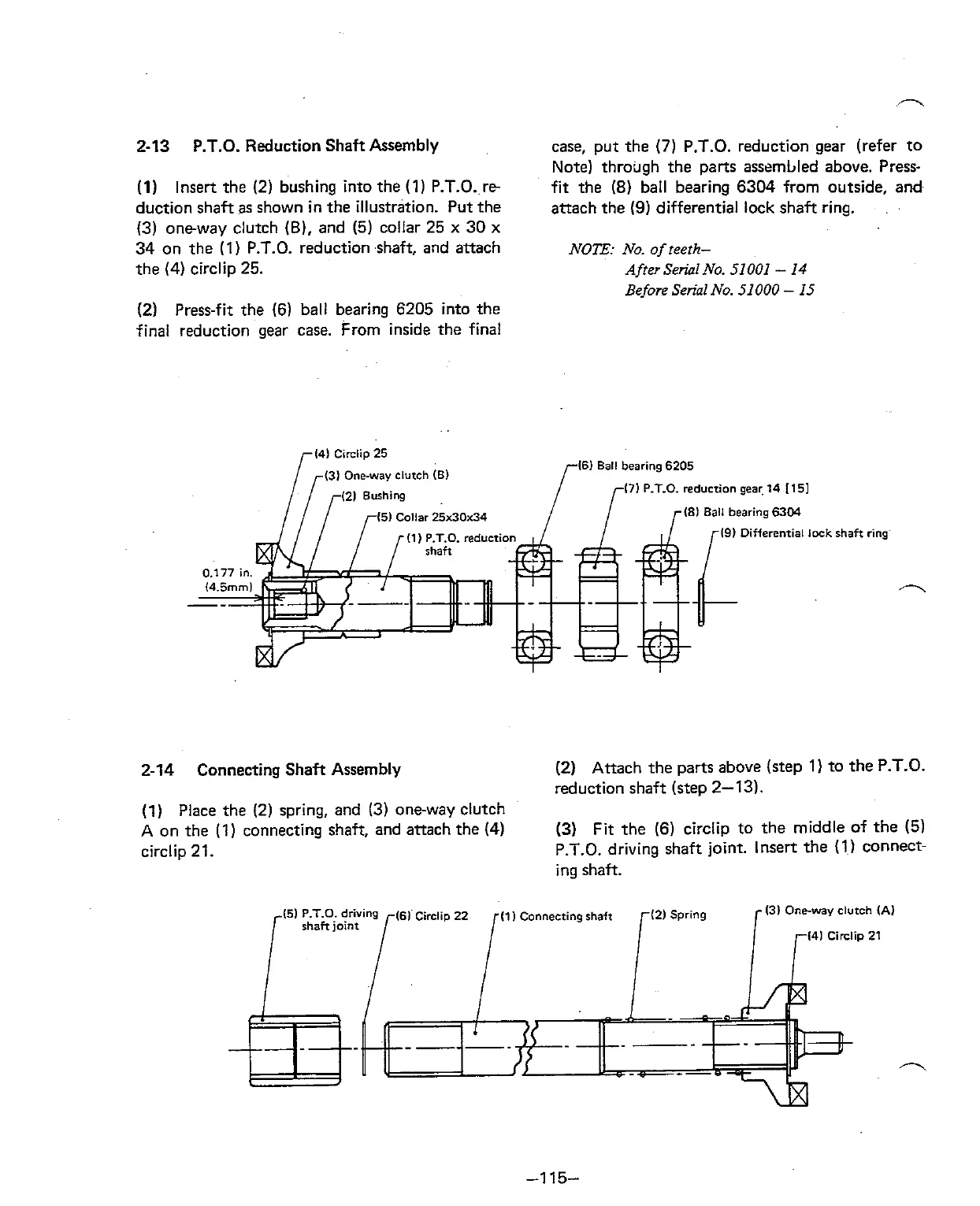

2-13 P.T.O. Reduction Shaft Assembly
(1)
Insert the (2) bushing into the (1) P.T.O. re-
duction shaft as shown in the illustration. Put the
(3) one-way clutch
(B),
and
(5)
collar
25
x
30
x
34 on the (1) P.T.O. reduction shaft, and attach
the
(4)
circlip 25.
case, put the
(7)
P.T.O. reduction gear (refer to
Note) through the parts assembled above.
Press-
fit
the
(8)
ball bearing
6304
from outside, and
attach the
(9)
differential lock shaft ring.
NOTE: No. of teeth-
AfterSerialNo. 51001
-
14
Before Serial No. 51 000
-
15
(2)
Press-fit the (6) ball bearing 6205 into the
final reduction gear case. From inside the final
16)
Ball
bearing
6205
(31
One-way
clutch
(B)
171
P.T.O.
reduction
gear
14
1151
5) Collar 25~30x34
(81 Ball bearing 6304
19)
Differential lock shaft ring
6
-
2-14 Connecting Shaft Assembly (2) Attach the parts above (step 1) to the P.T.O.
reduction shaft (step 2-13).
(1)
Place the (2) spring, and (3) one-way clutch
A on the (1) connecting shaft, and attach the
(4)
(3)
Fit the (6) circlip to the middle of the
(5)
circlip 21.
P.T.O. driving shaft joint. Insert the
(1)
connect-
ing shaft.
(31
One-way
clutch
(A)
,-.
To Next Page
