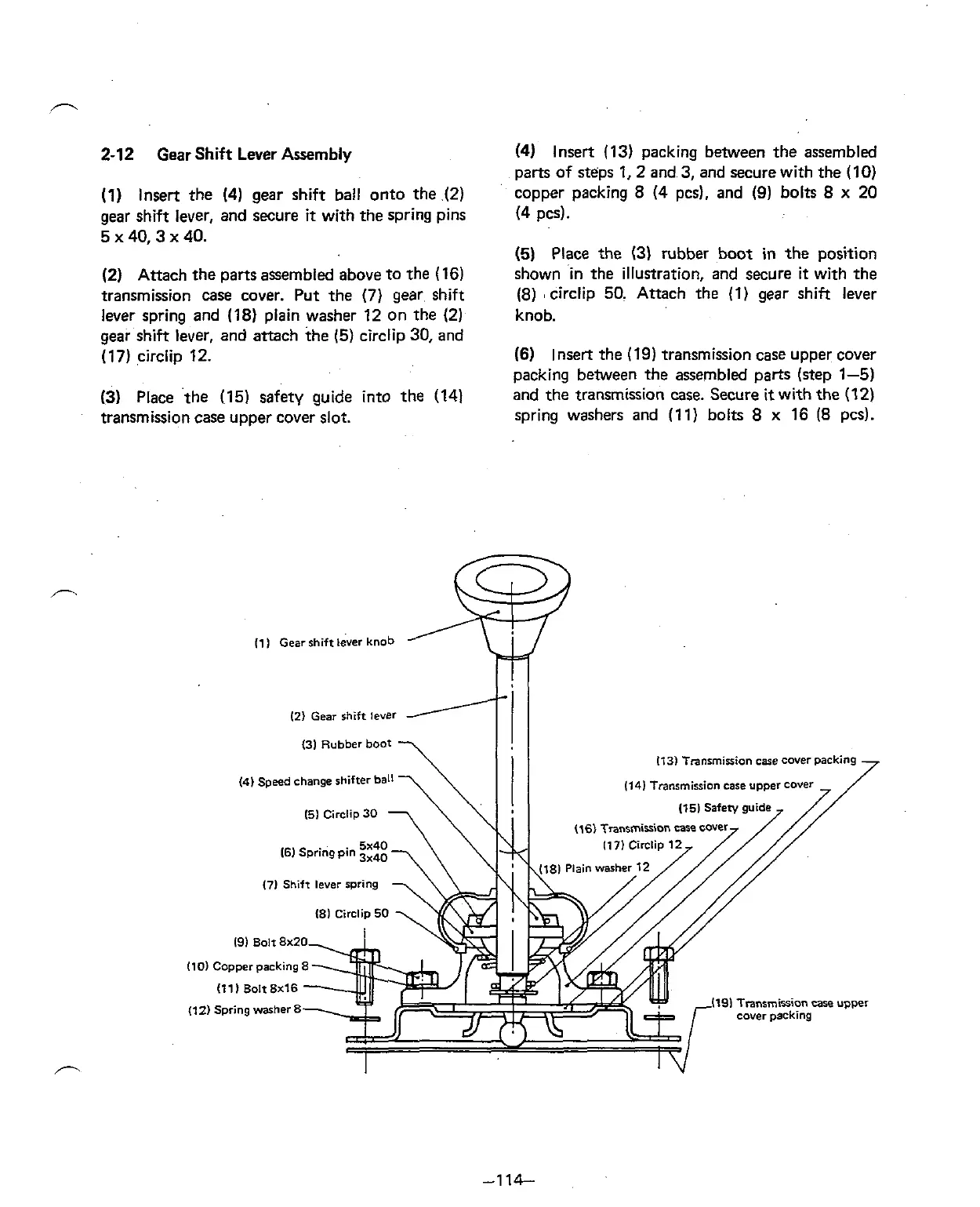

2-12 Gear Shift Lever Assembly
(1)
Insert the (4) gear shift ball onto the (2)
gear shift lever, and secure
it
with the spring pins
5x40,3x40.
(2) Attach the pans assembled above to the (16)
transmission case cover. Put the
(7)
gear shift
lever spring and
(18) plain washer 12 on the (2)
gear shift lever, and attach the (5) circlip 30, and
(17) circiip 12.
(3)
Place the (151 safety guide into the (141
transmission case upper cover slot.
(4)
lnsert (13) packing between the assembled
parts of steps 1,2 and
3,
and secure with the (10)
copper packing
8
(4 pcs), and (9) bolts 8
x
20
(4 pcs).
(5)
Place the
(3)
rubber boot in the position
shown in the illustration, and secure
it
with the
(8) circlip 50. Attach the
(1) gear shift lever
knob.
(6)
Insert the (19) transmission case upper cover
packing between the assembled parts (step
1-5)
and the transmission case. Secure
it
with the (12)
spring washers and (11) bolts
8
x 16
(8
pcs).
(2)
Gear
shift
lever
1
I
(31
Rubber
boot
1131
Transmission
case
cover
packi
(4)
Speed
change
shifter
ball
(7)
Shifr
lever
spring
(111 Bolt 8x16
(12)
Spring
washer
8
1391
Transmission
we
upper
