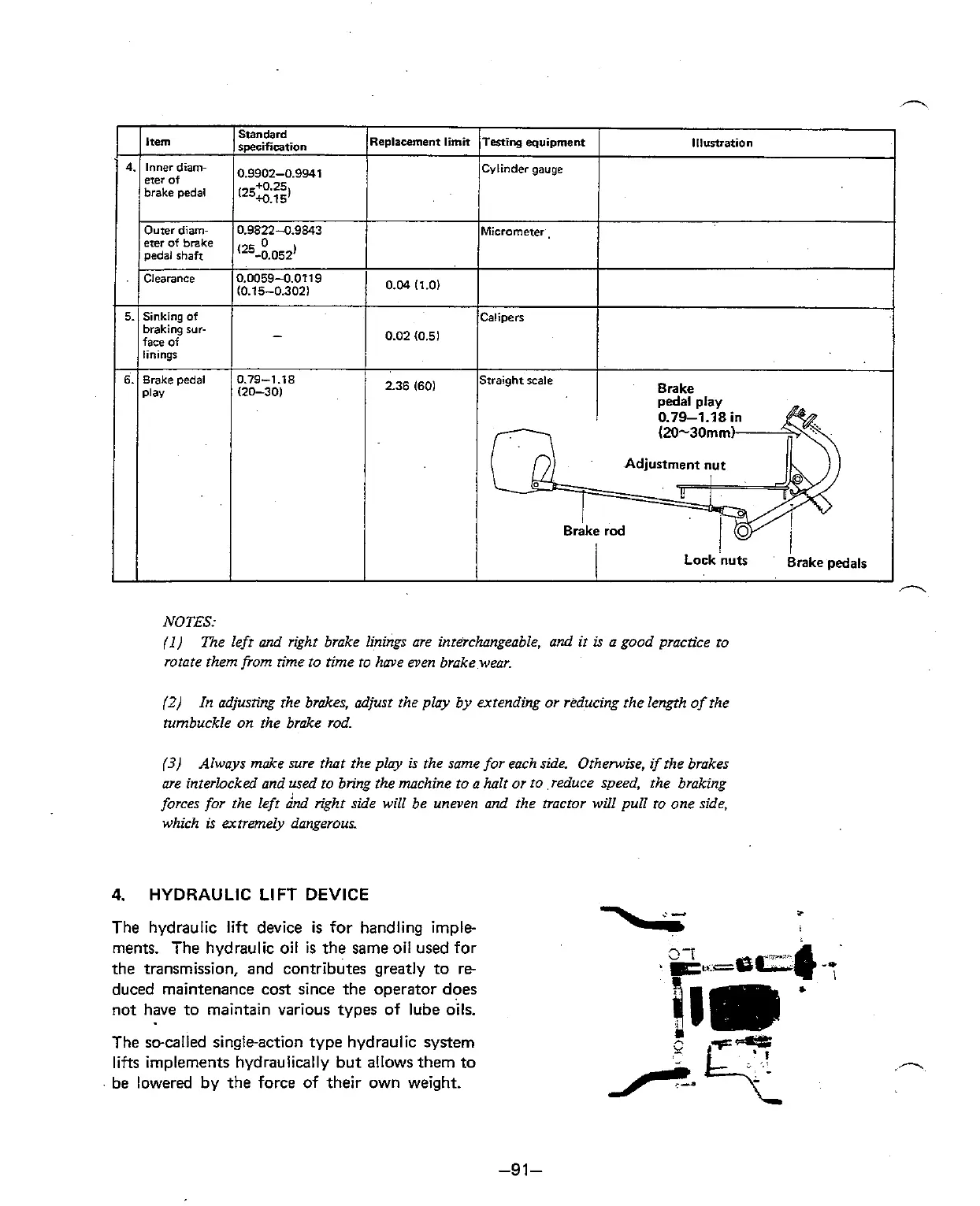

NOTES:
(I)
The left and right brake linings are interchangeable, and it
is
a good practice to
rotate them from rime to time
to have even brake wear.
(2)
In adjusting the brakes, adjust the play by extending or reducing the length of the
rumbuckle on the broke rod.
3
Always make sure that the play
is
the same for each side. Otherwise,
if
the brakes
are interlocked and used to bring the machine to
a
halt
or to ,reduce speed, the braking
forces for the
left
=nd
right side will be uneven and the tractor will pull to one side,
which
is
extremely dangerous.
4.
HYDRAULIC LIFT DEVICE
The hydraulic
lift
device is for handling imple-
rnents. The hydraulic oil is the same oil used for
the transmission, and contributes greatly to re-
duced maintenance cost since the operator does
not have to maintain various types of lube oils.
The
socalled single-action type hydraulic system
lifts implements hydraulically but allows them to
be lowered by the force of their own weight.
