6 LED Status Ring
YASKAWA TOEPC71061723A YASKAWA AC Drive CR700 Quick Start Guide 15
Note:
• Energize the drive with factory defaults to show the Initial Setup screen. Push (Home) to show the HOME screen.
–Select [No] from the [Show Initial Setup Screen] setting to not display the Initial Setup screen.
• Push from the Home screen to show drive monitors.
• Push to set d1-01 [Reference 1] when the Home screen shows U1-01 [Frequency Reference] in LOCAL Mode.
• The keypad will show [Rdy] when the drive is in Drive Mode. The drive is prepared to accept a Run command.
Table 5.2 Drive Mode Screens and Functions
Mode Keypad Screen Function
Drive Mode Monitors
Sets monitor items to display.
Programming Mode
Parameters
Changes parameter settings.
User Custom Parameters
Shows the User Parameters.
Parameter Backup/Restore
Saves parameters to the keypad as backup.
Modified Parameters/Fault Log
Shows modified parameters and fault history.
Auto-Tuning
Auto-Tunes the drive.
Initial Setup Screen
Changes initial settings.
Diagnostic Tools
Sets data logs and backlight.

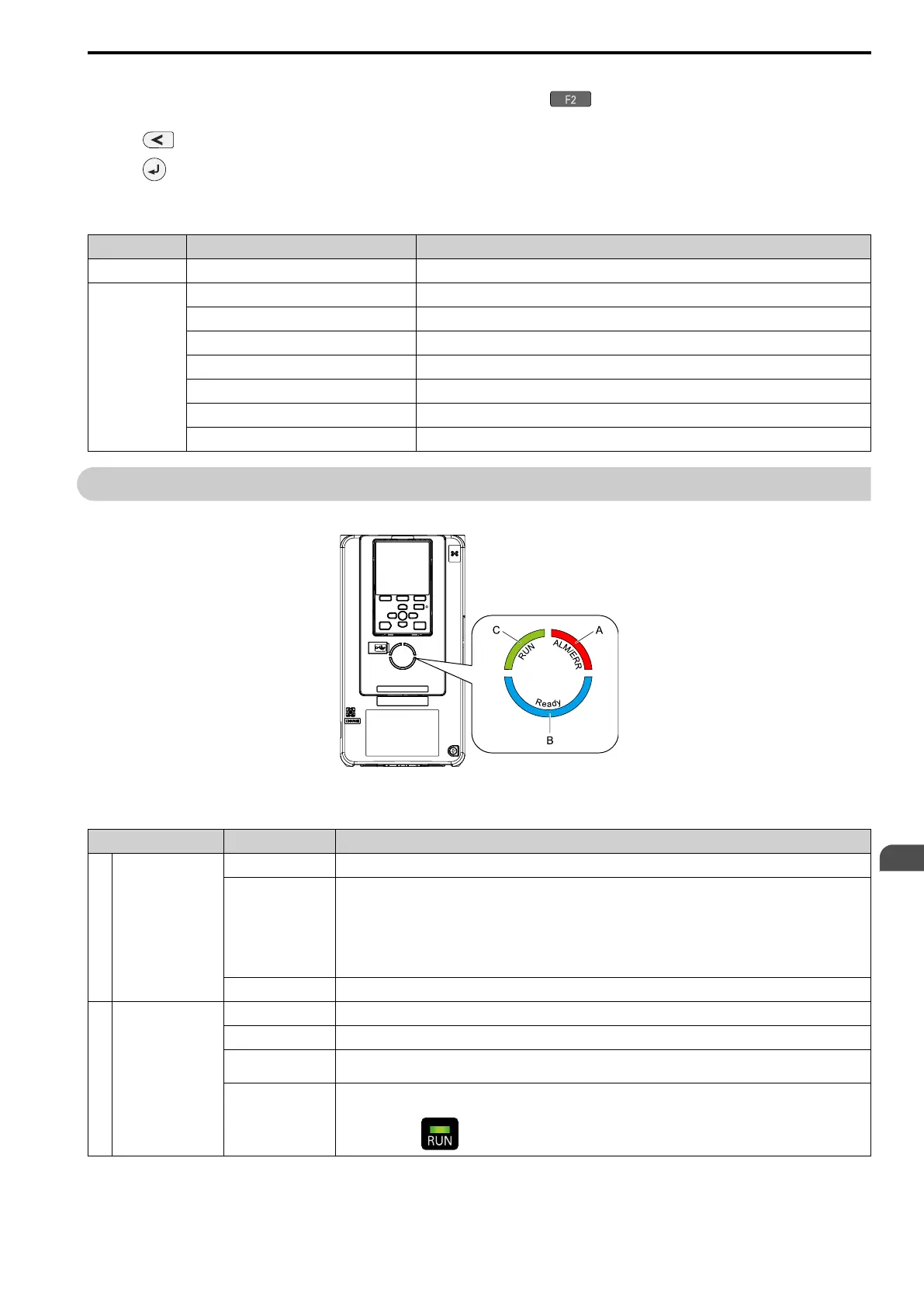

6 LED Status Ring
The LED Status Ring on the drive cover shows the drive operating status.
A - ALM/ERR
B - Ready
C - RUN
LED Status Description
A ALM/ERR
Illuminated
The drive detects a fault.
Flashing
*1
The drive detects:
• Alarm
• An oPE parameter setting error
• A fault or error during Auto-Tuning.
Note:
The LED will illuminate to identify a fault if the drive detects a fault and an alarm at the same time.
OFF
No fault or alarm occurs on the drive.
B Ready
Illuminated
The drive is operating or is prepared for operation.
Flashing
*1
The drive is in STo [Safe Torque OFF] Mode.
Flashing Quickly
*1
The voltage of the main circuit power supply dropped, and only the external 24 V power supply provides the power to
the drive.
OFF
• The drive detects a fault.
• There is no fault and the drive received a Run command, but the drive cannot operate (such as when in Programming
Mode, or when is flashing).
