JOHNSON CONTROLS

103

SECTION 3 - HANDLING, STORAGE, AND INSTALLATION

FORM 102.20-N1

ISSUE DATE: 7/06/2016

HEPA FILTERS

Koch HEPA Filter Frame

FILTER RETAINER

CLIPS MUST BE

ATTACHED TO

SIDES ONLY

HAT

AIRFLOW

FILTER CLIPS INSTALLED

FILTER CLIP INSTALLATION

SEE DETAIL A

FLAT SEALING

SURFACE

GASKET SEAL

HEPA FILTER

GASKET SEAL

DETAIL A

HOLDING FRAME

GASKET

LD13302

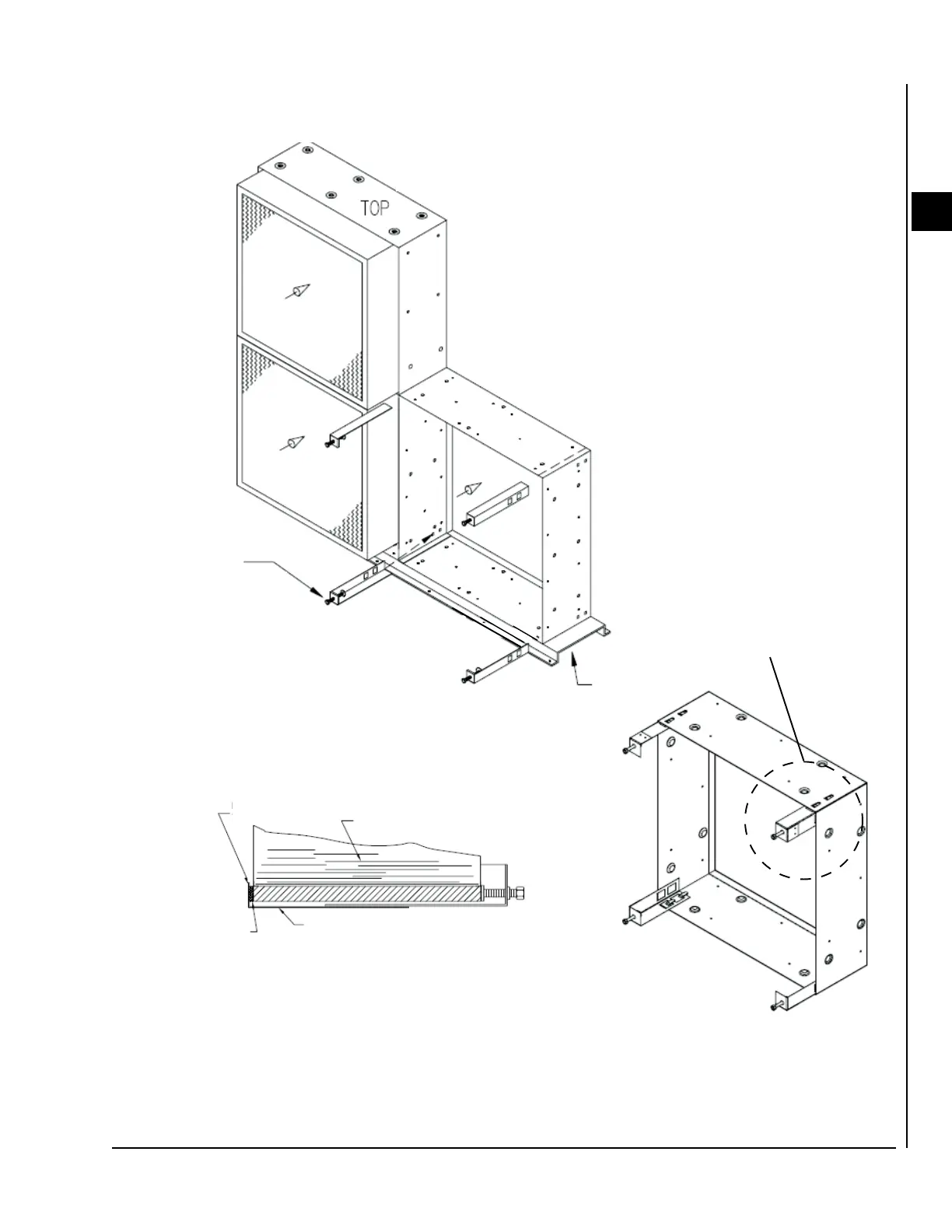

FIGURE 165 - INSTALLATION OF KOCH HEPA FILTERS
