JOHNSON CONTROLS

SECTION 3 - HANDLING, STORAGE, AND INSTALLATION

FORM 102.20-N1

ISSUE DATE: 7/06/2016

LD09620c

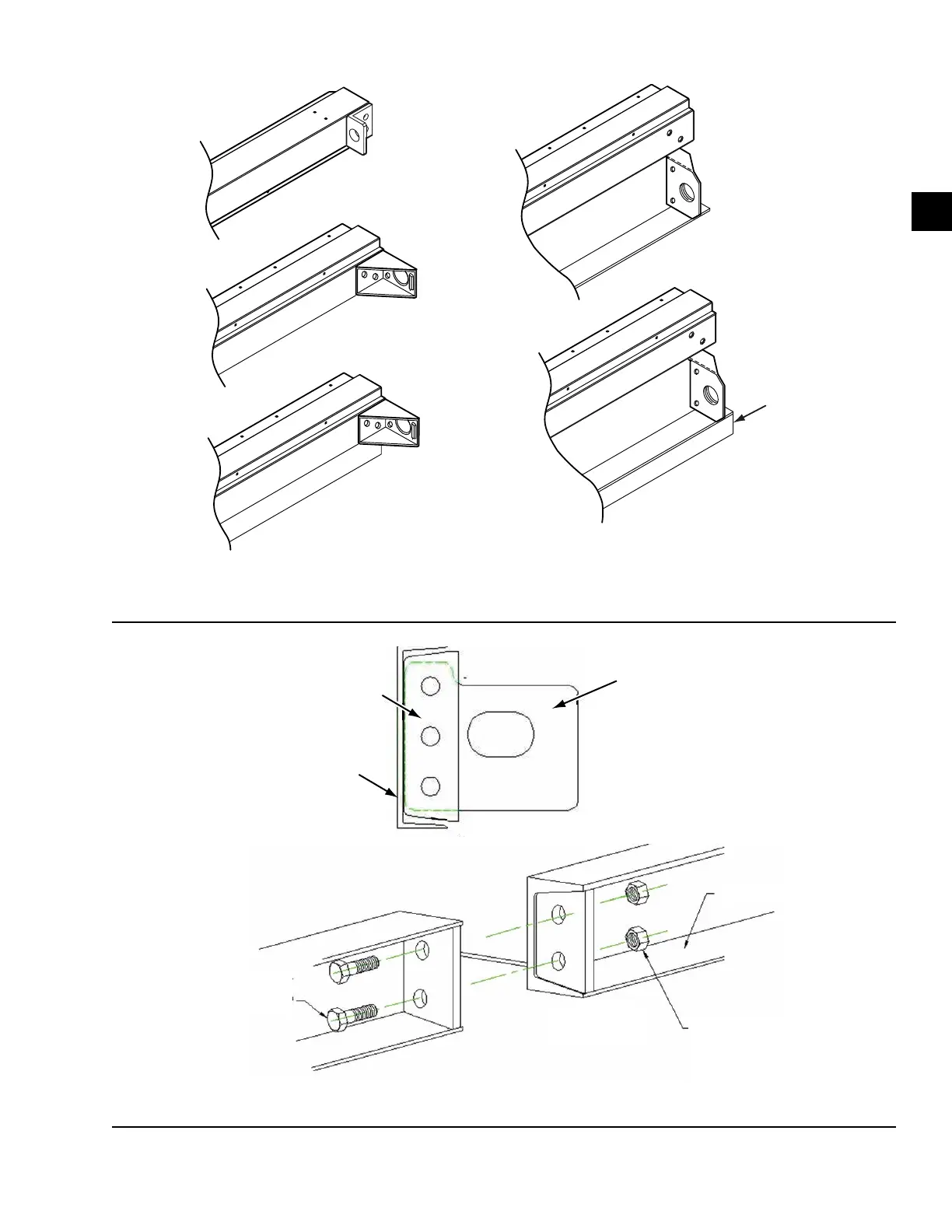

FIGURE 41 - SHIPPING SPLIT EXAMPLES

TOP SPLIT

BOTTOM SPLIT - RACEWAY

WITH LUG

BOTTOM SPLIT - RACEWAY

WITH LUG AND CURB REST

BOTTOM SPLIT - RACEWAY,

BASERAIL WITH LUG

BOTTOM SPLIT - RACEWAY,

BASERAIL WITH LUG AND

CURB REST

FIGURE 42 - SHIPPING SPLIT EXAMPLES USING STRUCTURAL STEEL BASERAILS

LD14263

WELDED CHANNEL FILLER

BASE CHANNEL

REMOVABLE LIFTING LUGS

BASE CHANNEL

3/4 in ZINC HEX NUT

(Use from Lifting Lug)

(No Flat or Lock

Washers Required)

3/4 in GR5 HEX BOLT

(Use from Lifting Lug)
