JOHNSON CONTROLS

FORM 102.20-N1

ISSUE DATE: 7/06/2016

SECTION 3 - HANDLING, STORAGE, AND INSTALLATION

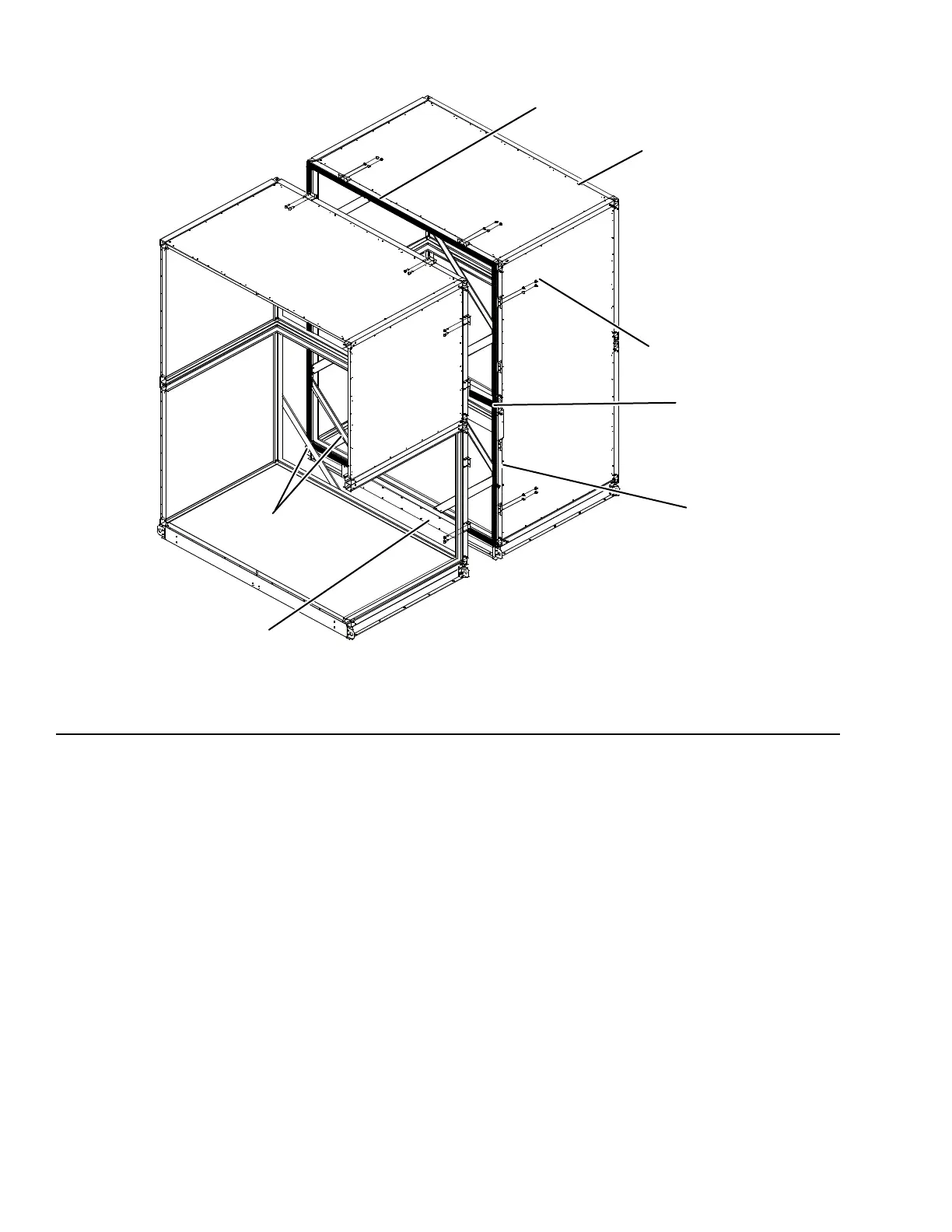

FIGURE 70 - ASSEMBLING THE END CHANNEL SHIPPING SPLIT WITH ENERGY RECOVERY WHEEL

FASTENER PACK

(P/N 386-03419-000)

SHIPPING

BRACKETS

HEAT WHEEL

SEGMENT

NEOPRENE

GASKET

END SPLIT

MOUNTING

BRACKET

BASE RAIL

SUPPORT

PLATE

INTERMEDIATE

RACEWAY

LD14262
