JOHNSON CONTROLS
19
SECTION 2 - PRODUCT DESCRIPTION
FORM 102.20-N1
ISSUE DATE: 7/06/2016
2
Shipped Loose Parts
Each loose component has a label to show where it
should be installed on the AHU. The segment ID box
on the label will show the skid on which it is to be in-
stalled. If the loose component is used in only one seg-
ment on a skid, the segment ID, i.e., MB, will be bold
as shown in Figure 6 on page 19. Figure 7 on page
19 shows a hood label for an outdoor AHU. Figure 8
on page 19 shows a typical filter label.
DIRECTION OF AIRFLOW
The direction of airflow is always read from right to
left.
LD11730

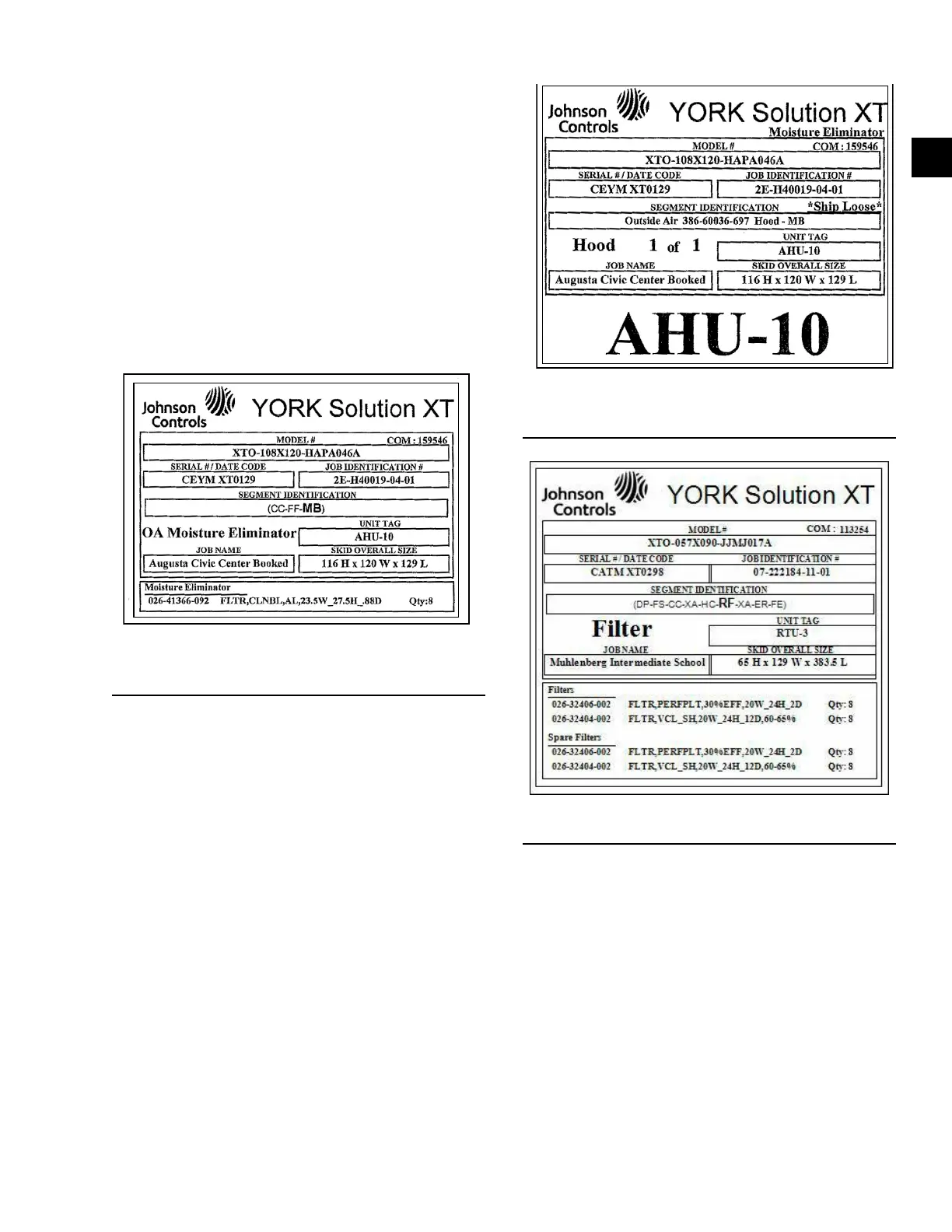

FIGURE 6 - EXAMPLE OF MOISTURE ELIMINATOR
LOOSE COMPONENT ID LABEL
LD11751a
FIGURE 7 - EXAMPLE OF HOOD LOOSE
COMPONENT ID LABEL
LD13942
FIGURE 8 - FILTER ID LABEL
