JOHNSON CONTROLS

FORM 102.20-N1

ISSUE DATE: 7/06/2016

SECTION 3 - HANDLING, STORAGE, AND INSTALLATION

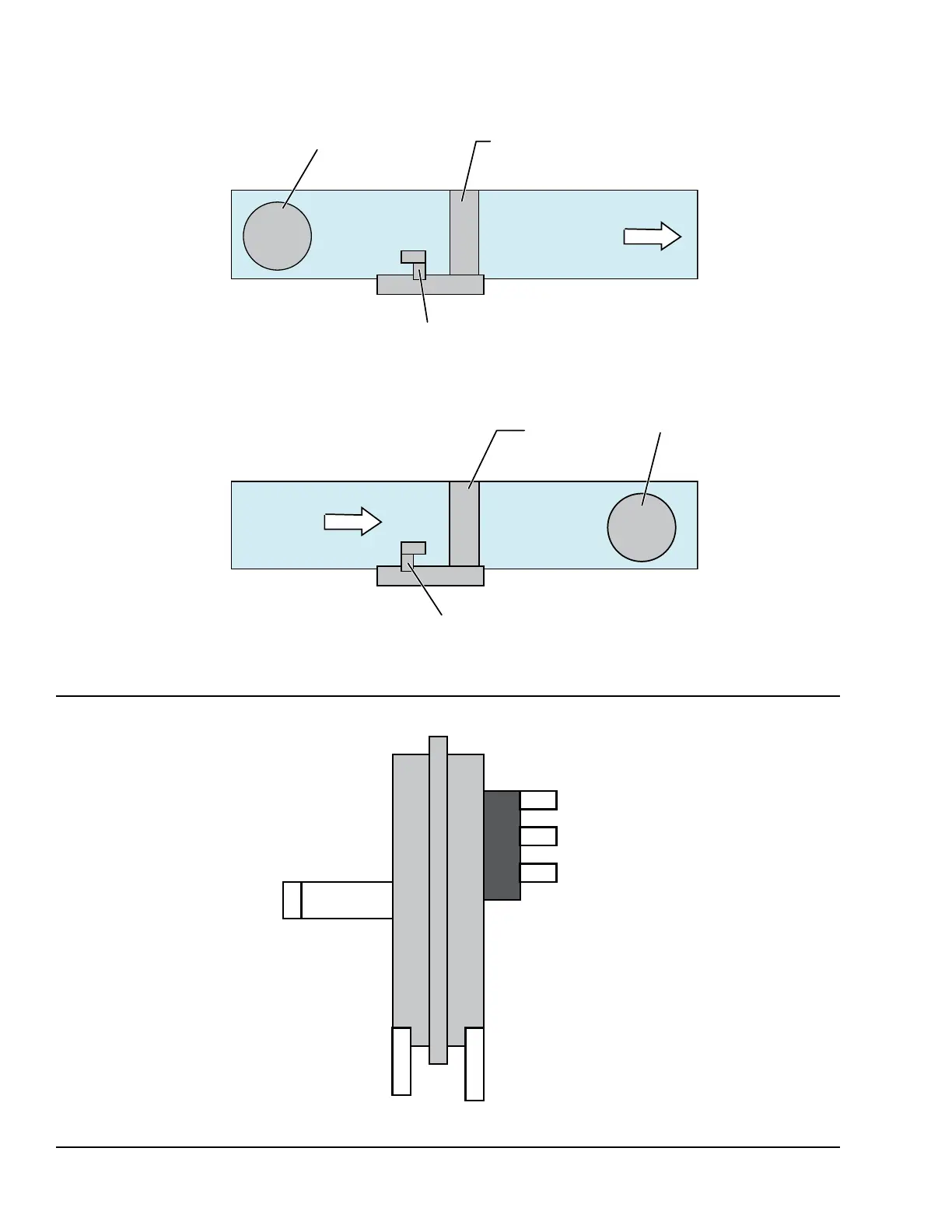

FIGURE 108 - PRESSURE PROBE DIRECTION

LD12468

BLOWER

HEATER

AIR FLOW

BLOWER

HEATER

AIR FLOW

PICK UP TUBE TOWARDS BLOWER ATTACHED

TO HIGH PORT OF AIR FLOW SWITCH

PICK UP TUBE TOWARDS BLOWER ATTACHED

TO LOW PORT OF AIR FLOW SWITCH

TOP VIEW OF UNIT

POSITIVE PRESSURE / AIR BLOWN THROUGH HEATER

NEGATIVE PRESSURE / AIR BLOWN THROUGH HEATER

FIGURE 109 - AIR FLOW SWITCH CONNECTIONS

LD12470
