SECTION 3 - HANDLING, STORAGE, AND INSTALLATION

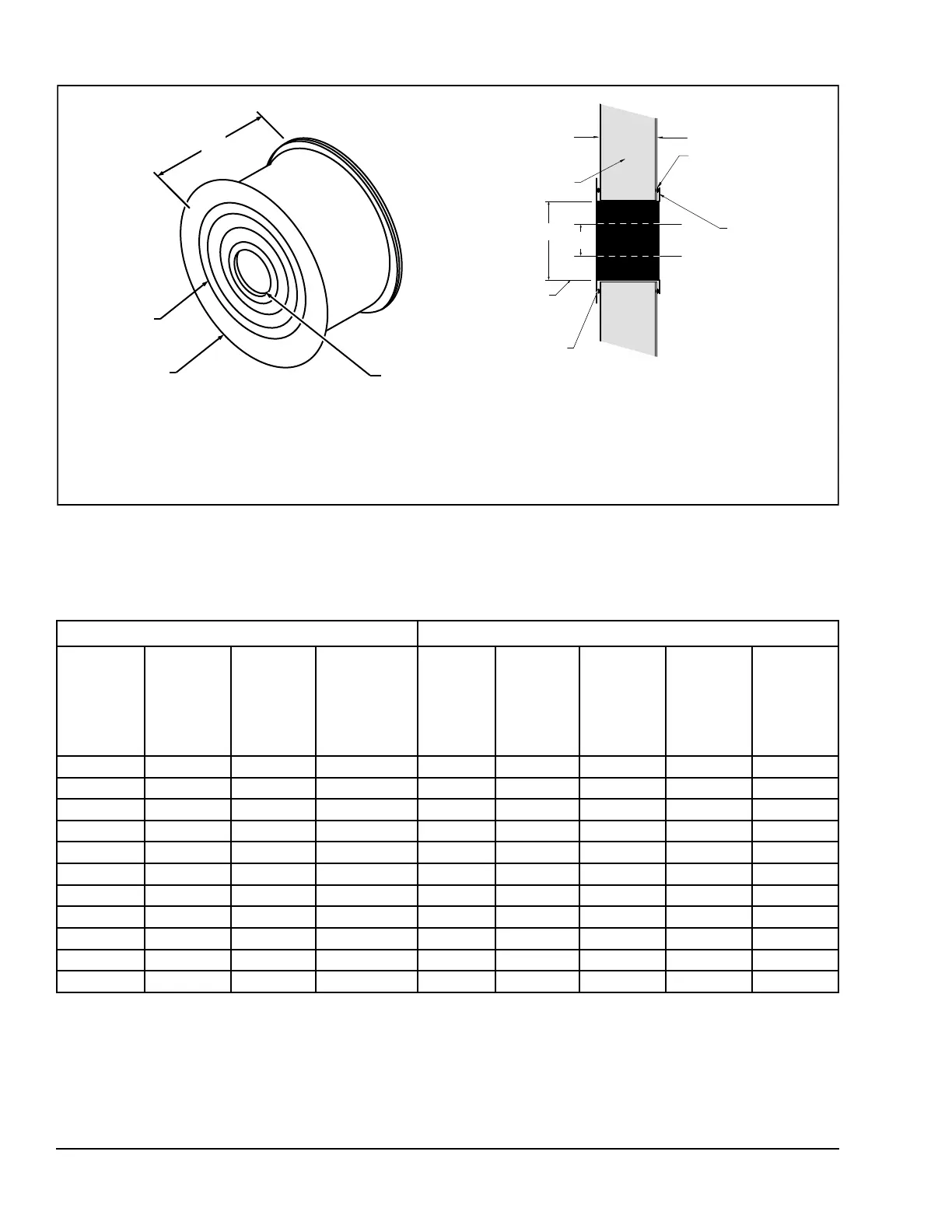

FIGURE 98 - PENETRATIONS AND GROMMET DETAILS
A
Ø C
Ø B
Ø D
3 OR 4 RINGS
NEOPRENE
GROMMET***
SEALANT** ALL
AROUND,
BOTH SIDES OF
THE OPENING.
PANEL INNER
SURFACE
PANEL OUTER
SURFACE
PASSING ELEMENT
(CONDUIT, PIPE,
ETC.)
FOAM INSULATION
* HOLE SHALL BE CAREFULLY CUT WITH HOLE SAW OR DRILL.
LEAVING A SMOOTH, CLEAN CUT.
** RECCOMENDED SEALANT IS MANUS BOND, LOCTITE OR BOSTIK
SEALANT** ALL
AROUND,
BOTH SIDES OF
THE OPENING.
Ø B
Ø E*
DIMENSIONS
IRON
PIPE SIZE
(nominal)
COPPER
PIPE SIZE
(O.D.)
THIN WALL
CONDUIT
USE
GROMMET P/N
GROMMET
DEPTH
(A)
GROMMET
HOLE
DIAMETER
(ØB)
GROMMET
LIP
DIAMETER
(ØC)
MARKED
GROMMET
HOLE
DIAMETER
(CUT OUT)
(ØD)
PANEL
HOLE CUT
DIAMETER
(ØE)
3/4”, 1” 7/8”, 1-1/8” 3/4”, 1” 028-11872-000 2.375” 0.500” 3.125” 0.749 2.50”
1-1/4”, 1-1/2” 1-3/8”, 1-5/8” 1’1/4”, 1-1/2” 028-11871-000 2.375” 1.000” 3.875” 1.249 3.25”
1-1/4”, 1-1/2” 1-3/8”, 1-5/8” 1’1/4”, 1-1/2” 028-11872-000 2.375” 0.500” 3.125” 1.249 2.50”
1-1/4”, 1-1/2” 1-3/8”, 1-5/8” 1’1/4”, 1-1/2” 028-11861-000 2.375” 1.000” 5.125” 1.251 4.50”
2” 2-1/8” 2” 028-11871-000 2.375” 1.000” 3.875” 1.749 3.25”
2” 2-1/8” 2” 028-11861-000 2.375” 1.000” 5.125” 1.751 4.50”
2” 2-1/8” 2” 028-11872-000 2.375” 0.500” 3.125” 1.875 2.50”
2-1/2” 2-5/8” 2-1/2” 028-11861-000 2.375” 1.000” 5.125” 2.251 4.50”
2-1/2” 2-5/8” 2-1/2” 028-11871-000 2.375” 1.000” 3.875” 2.375 3.25”
3” 3-1/8” 3” 028-11861-000 2.375” 1.000” 5.125” 2.875 4.50”
4" 4-1/8" 4" 028-11881-000 2.251" 1.250" 6.125" 3.875" 5.50"
