York YMC2 Installation And Assembly

JOHNSON CONTROLS
20
FORM 160.84-N1
ISSUE DATE: 11/22/2016
SECTION 2 - RIGGING AND LIFTING
Power Panel
Description Pounds Kilograms
Power Panel 300 135
TABLE 3 - POWER PANEL
1. Attach rigging chains to an adequate lifting device.
2. Attach the chains to the lifting holes at the top of the
Power Panel as shown in Figure 7 on page 20.
3. Lift the Power Panel slightly off the ground to
check for center of gravity. Make adjustments as
necessary to level the Power Panel.
4. Lift the Power Panel and remove all packing ma-
terial.
5. Carefully lower the Power Panel on to the sup-
ports on the evaporator.
6. Attach the Power Panel to the evaporator with the
proper hardware. Remove the rigging chains.
7. Re-connect all unit wiring and harnesses (refer to
YMC
2
Unit Wiring and Field Control Modica-
tions (Form 160.78-PW2).
Use lifting chains with working load limit
each 70 of the Power Panel weight.

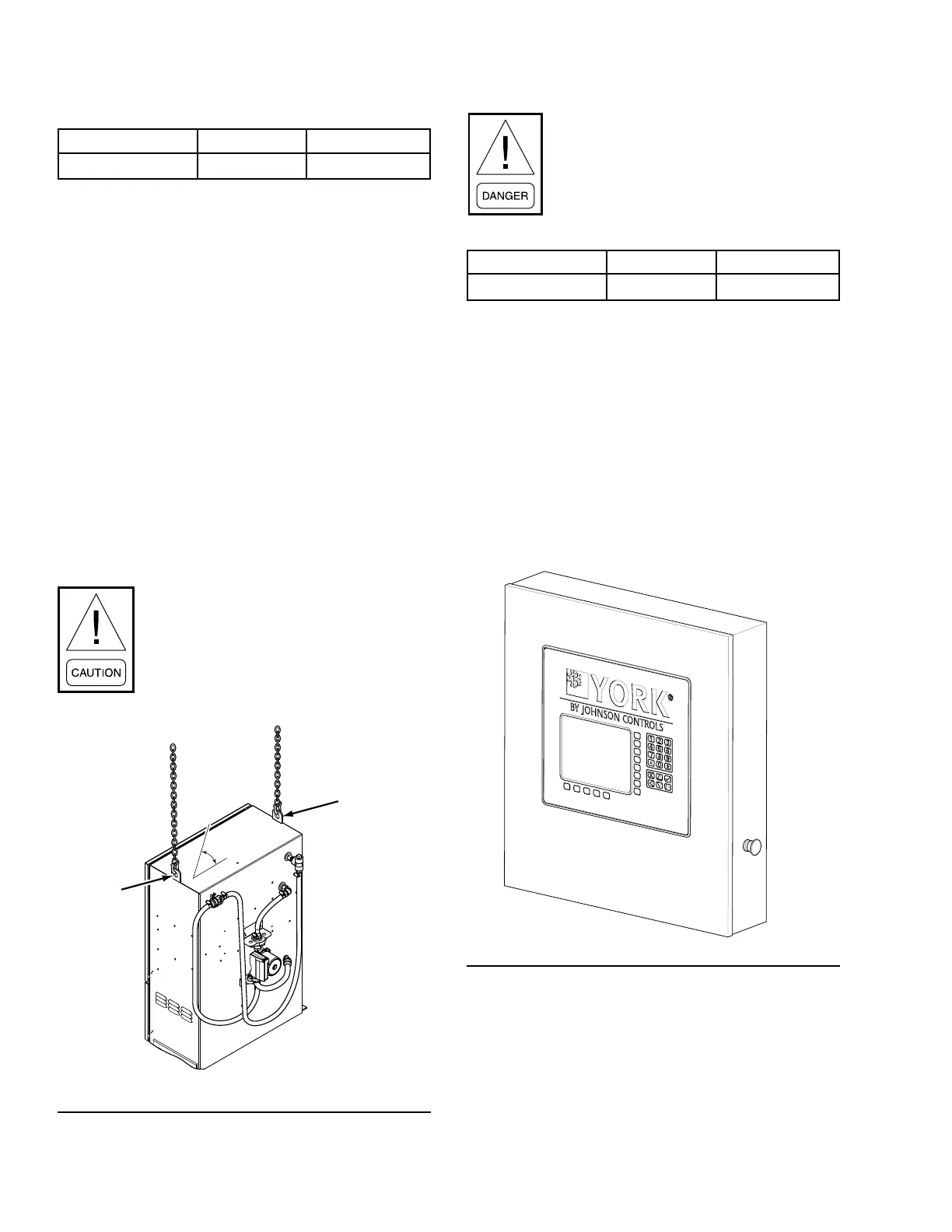

FIGURE 7 - POWER PANEL
LD17275a
Lifting
Holes
Lifting
Holes
45°
Min.
OptiView™ Control Center
The OptiView™ Control Center weighs
over 50 pounds and a technician and
helper are needed for the installation of
the panel.
Description Pounds Kilograms
OptiView 75 34
TABLE 4 - CONTROL PANEL WEIGHTS
1. Lift the OptiView™ Control Center and remove
all packing material.
2. Carefully lower the OptiView™ Control Center
on to the supports on the condenser.
3. Attach the OptiView™ Control Center to the con-
denser with the proper hardware.
4. Connect all unit wiring and harnesses (refer to
YMC
2
Unit Wiring and Field Control Modica-
tions (Form 160.78-PW2).
FIGURE 8 - OPTIVIEW CONTROL CENTER
LD16738
