JOHNSON CONTROLS
28
FORM 160.84-N1
ISSUE DATE: 11/22/2016
SECTION 2 - RIGGING AND LIFTING
LD17057a
CONDENSER
Lifting
Holes
Lifting
Holes
Lifting
Holes
Side
Spreader
Bar
90°+/-10°
65°
Min.

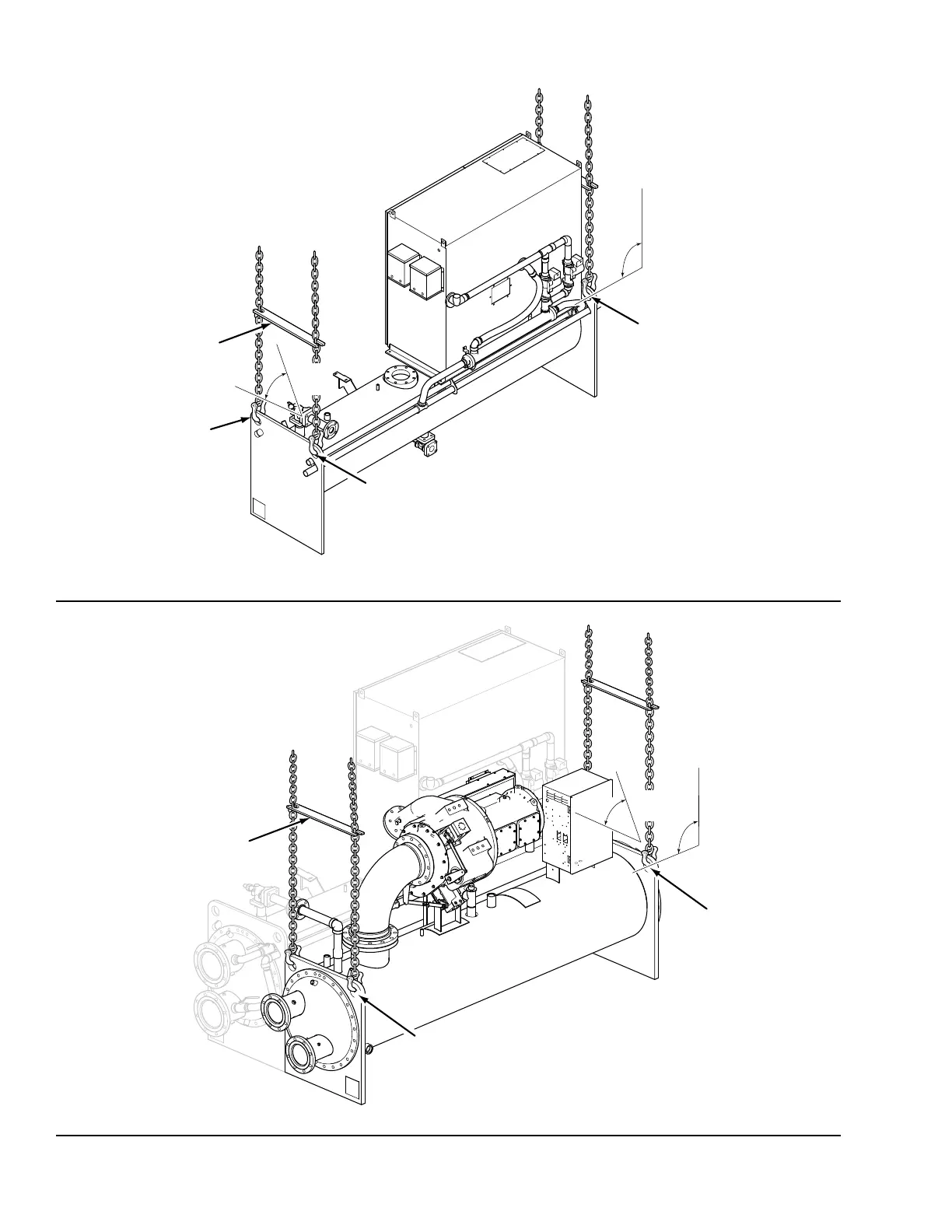

FIGURE 18 - FORM 11 CONDENSER ASSEMBLY RIGGING WITH SIDE SPREADER BARS
LD17058a
Lifting
Holes
Lifting
Holes
Side
Spreader
Bar
90°+/-10°
65°
Min.
FIGURE 19 - FORM 11 EVAPORATOR ASSEMBLY RIGGING WITH SIDE SPREADER BARS
