SECTION 3 - INSTALLATION
Level The Unit
The longitudinal alignment of the unit should be
checked by placing a level on the top center of the
evaporator shell under the compressor/motor assem-
bly. Transverse alignment should be checked by plac-
ing a level on top of the shell end sheets.
The unit should be level within 1/4" (6 mm) from one
end to the other end and from front to the rear. If the
chiller is not level within the amount specified, lift
it and place shims between the isolation pad and the
chiller tube sheets. (Shims are furnished by the install-
er.) Lower unit again and recheck to see that it is level.
Checking The Isolation Pad Deection
All isolation pads should be checked for the proper de-
flection while checking to see if the unit is level. Each
pad should be deflected approximately 0.10 inches
(2.5 mm) to 0.20 inches (5 mm). If an isolation pad is
under-deflected, shims should be placed between the
unit tube sheet and the top of the pad to equally deflect
all pads.

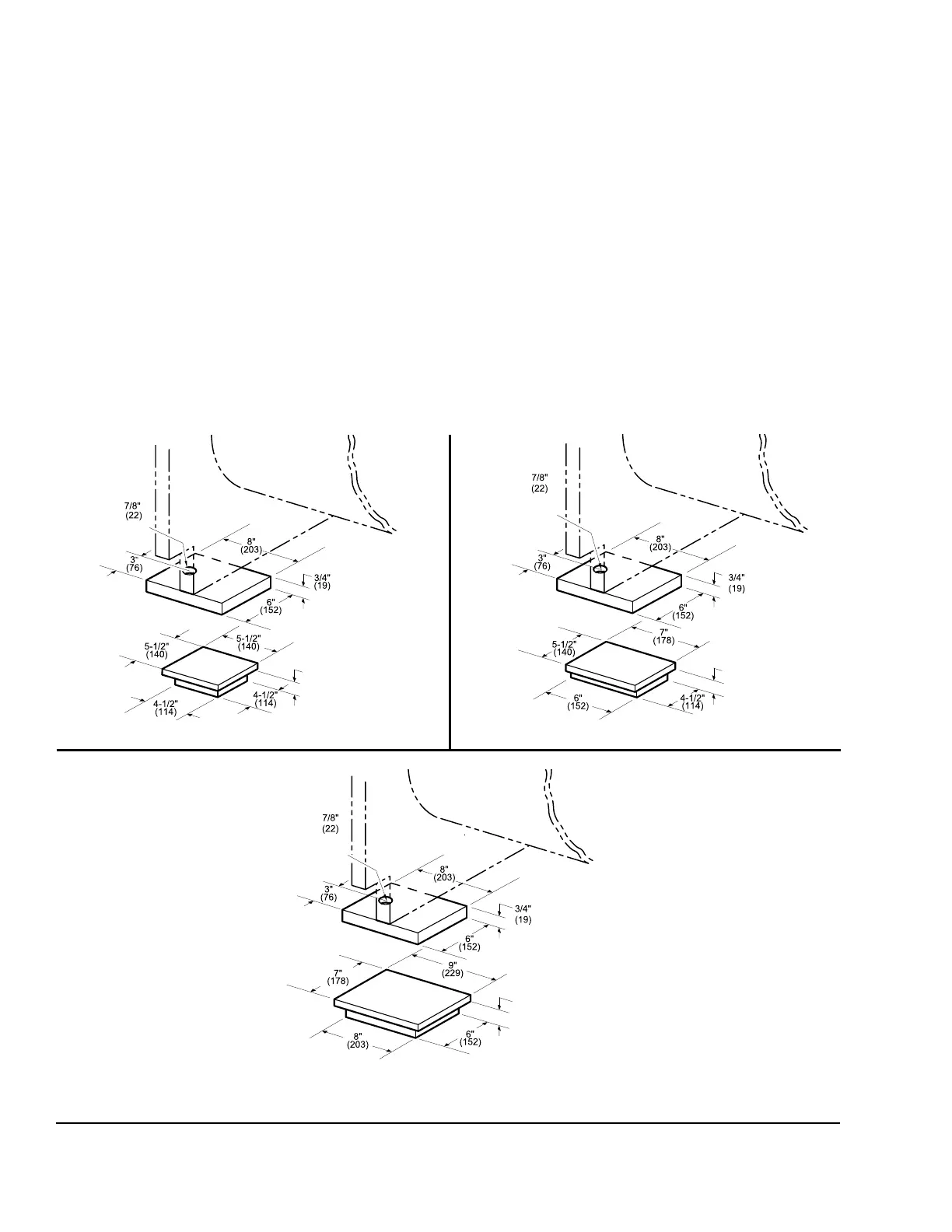

SHELL
END SHEET
DIA.
HOLE
See Detail A
SHELL
END SHEET
DIA.
HOLE
See Detail A
SHELL
END SHEET
DIA.
HOLE
See Detail A
ALL DIMENSIONS ARE IN INCHES (MM)
UNIT WEIGHT UP TO 16,365 Lbs (7,423 Kgs)
LD12638a
UNIT WEIGHT 16,366 - 28,835 Lbs (7,424 - 13,080 Kgs)
LD12639a
UNIT WEIGHT 28,836 - 53,530 Lbs (13,081 - 24,281 Kgs)
LD12640a
FIGURE 21 - NEOPRENE ISOLATORS
