York YMC2 Installation And Assembly

JOHNSON CONTROLS
43
SECTION 4 - REASSEMBLY
FORM 160.84-N1
ISSUE DATE: 11/22/2016
4

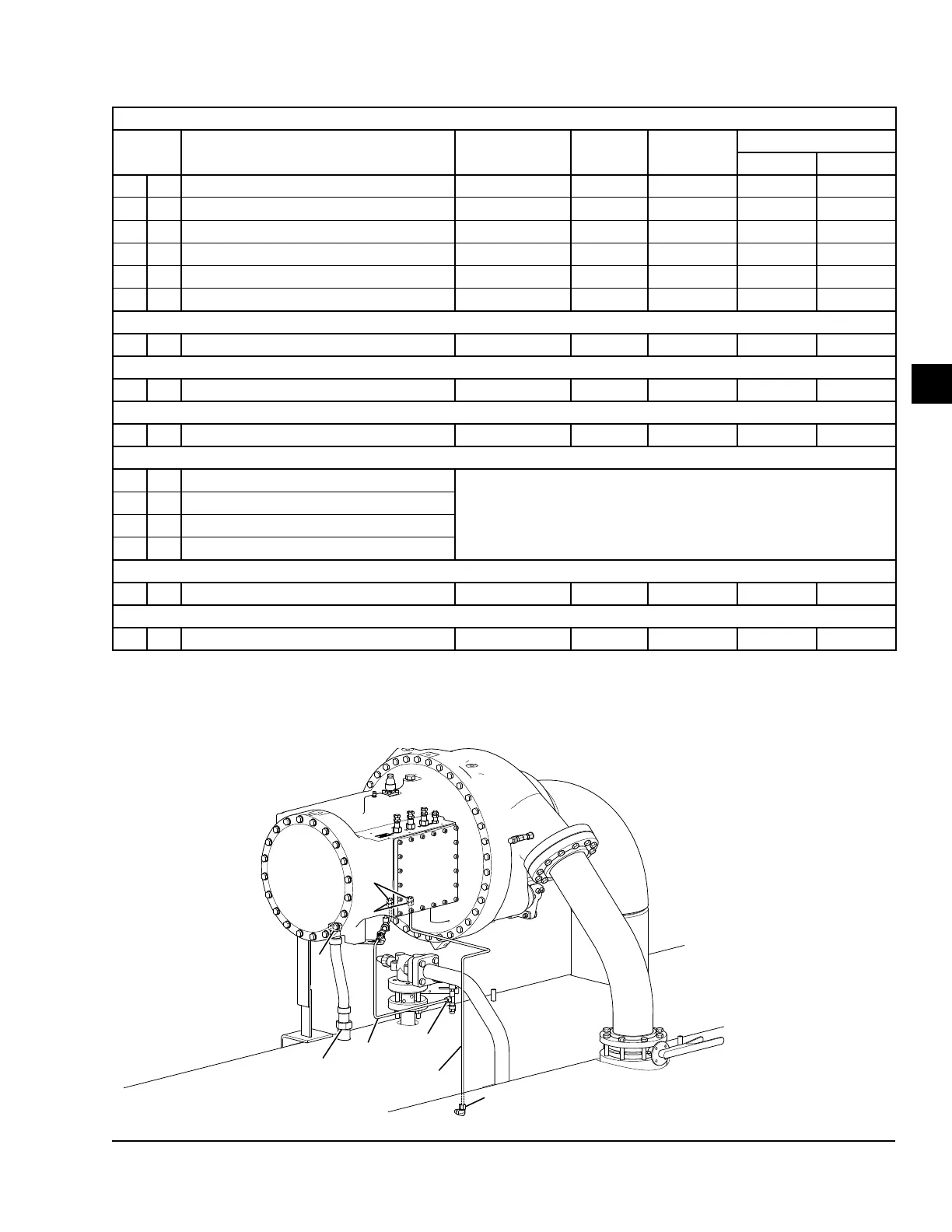

TABLE 14 - RE-ASSEMBLY TORQUE VALUES
UNIT
ITEM DESCRIPTION
YORK PART
NUMBER
SAP
NUMBER
QUANTITY
TORQUE VALUE
FT-LBS. N-M
A 4 HCS M24 X 3 X 90MM LG. 021-33185-090 731065 12 170 230
B 10 HCS M20 X 2.5 X 60MM LG. 021-33184-060 731063 1 470 640
C 13 HCS5 0.750-10 X 2.000 GR 5 ZN 021-32012-016 588676 8 50 68
D 30 HCS M6 X 1 X 16MM LG. 021-31205-016 730686 6 50 68
E 32 HCS M20 X 2.5 X 60MM LG. 021-33184-060 731063 12 95 130
F 38 NUT HEX 0.375-16 X GR 5 ZN 021-32006-501 616900 6 50 68
HOT GAS
G 7 HCS5 0.625-11 X 4.500 GR 5 ZN 021-32010-036 616908 4 65 88
LIQUID LINE
H 5 HCS5 0.625-11 X 2.250 GR 5 ZN 021-32010-018 679632 8 50 68
END SHEETS (CON-EVAP ASSY)
J 3 HCS5 0.625-11 X 2.500 GR 5 ZN 021-32010-020 616904 8 154 209
COMPRESSOR PIPING
K 33 Hose, Motor Cooling 1-1/2" (Shell End)
Refer to TABLE 12/13 for Torque Specications
L 33 Hose, Motor Cooling M48x2 (Comp End)
M 8 Metric, Connr 3/8 O.D. Tube M16x1.5
N 15 Nut, 3/8 O.D. Tube
VSD MOUNTING
O 1 HCS5 0.438-14 X 1.250 GR 5 ZN 021-32007-010 730831 4 50 68
PANEL MOUNTING
P 14 HCS5 0.250-20 X 1.000 GR 5 ZN 021-32004-008 730793 8 7 10
NOTES:
Unless otherwise specified, all screw must be tightened to the follow-
ing torque values with lightly oiled threads.
** Lubricated with oil and graphite on male and female threads and
under bolt heads. Do NOT use Moly-kote.
FIGURE 29 - YMC
2
PIPING REASSEMBLY HARDWARE IDENTIFICATION
LD17283
N
M
N
L
K
N
3/8”
PIPING
3/8”
PIPING
