SECTION 5 - DIMENSIONS, NOZZLE ARRANGEMENTS AND WEIGHTS
FORM 160.84-N1
ISSUE DATE: 11/22/2016
5
COMPACT WATER BOXES -150 & 300 PSI DIMENSIONS
Condenser
Shell Code
Nozzle Pipe Size In (mm) Condenser Nozzle Dimensions Ft-In (mm)
No. of Passes
C
1-Pass 2-Pass 3-Pass
1 2 3 AA AA BB AA BB
CB21 10" (254) 6" (152) 6" (152) 1'-4" (406) 2'-2-3/8" (670) 1'-7-7/8" (505) 2'-8-7/8" (835) 1'-7-7/8" (505) 2'-8-7/8" (835)
CB25 12" (305) 8" (203) 6" (152) 1'-4" (406) 1'-10" (559) 1'-2-3/8" (365) 2'-5-5/8" (752) 1'-2-3/8" (365) 2'-5-5/8" (752)
CC25 12" (305) 8" (203) 6" (152) 1'-4" (406) 1'-10" (559) 1'-2-3/8" (365) 2'-5-5/8" (752) 1'-2-3/8" (365) 2'-5-5/8" (752)
CB29
(150 PSI)
14" (356) 10" (254) 8" (203) 1'-4" (406) 1'-10" (559) 1'-1-3/4" (349) 2'-6-1/4" (768) 1'-1-3/4" (349) 2'-6-1/4" (768)
14" (356) 10" (254) 8" (203) 1'-5-1/2" (445) 2'-0" (610) 1'-3-3/4" (400) 2'-8-1/4" (819) 1'-3-3/4" (400) 2'-8-1/4" (819)
CB29
(300 PSI)
14" (356) 10" (254) 8" (203) 1'-4" (406) 1'-10" (559) 1'-1" (330) 2'-7" (787) 1'-1" (330) 2'-7" (787)
14" (356) 10" (254) 8" (203) 1'-5-1/2" (445) 2'-0" (610) 1'-3" (381) 2'-9" (838) 1'-3" (381) 2'-9" (838)
CB33 16" (406) 10" (254) 10" (254) 1'-8" (508) 2'-1" (635) 1'-4" (406) 2'-10" (864) 1'-4" (406) 2'-10" (864)
CB39 20" (508) 14" (356) 10" (254) 1'-11" (584) 2'-3-1/2"(699) 1'-5-1/2" (446) 3'-1-1/2" (952) 1'-5-1/2" (446) 3'-1-1/2" (952)
NOTE: Dimensions are shown in Inches (mm)
CONDENSER 150 & 300 PSI COMPACT WATER BOXES
LD14011
LD14010
LD14008

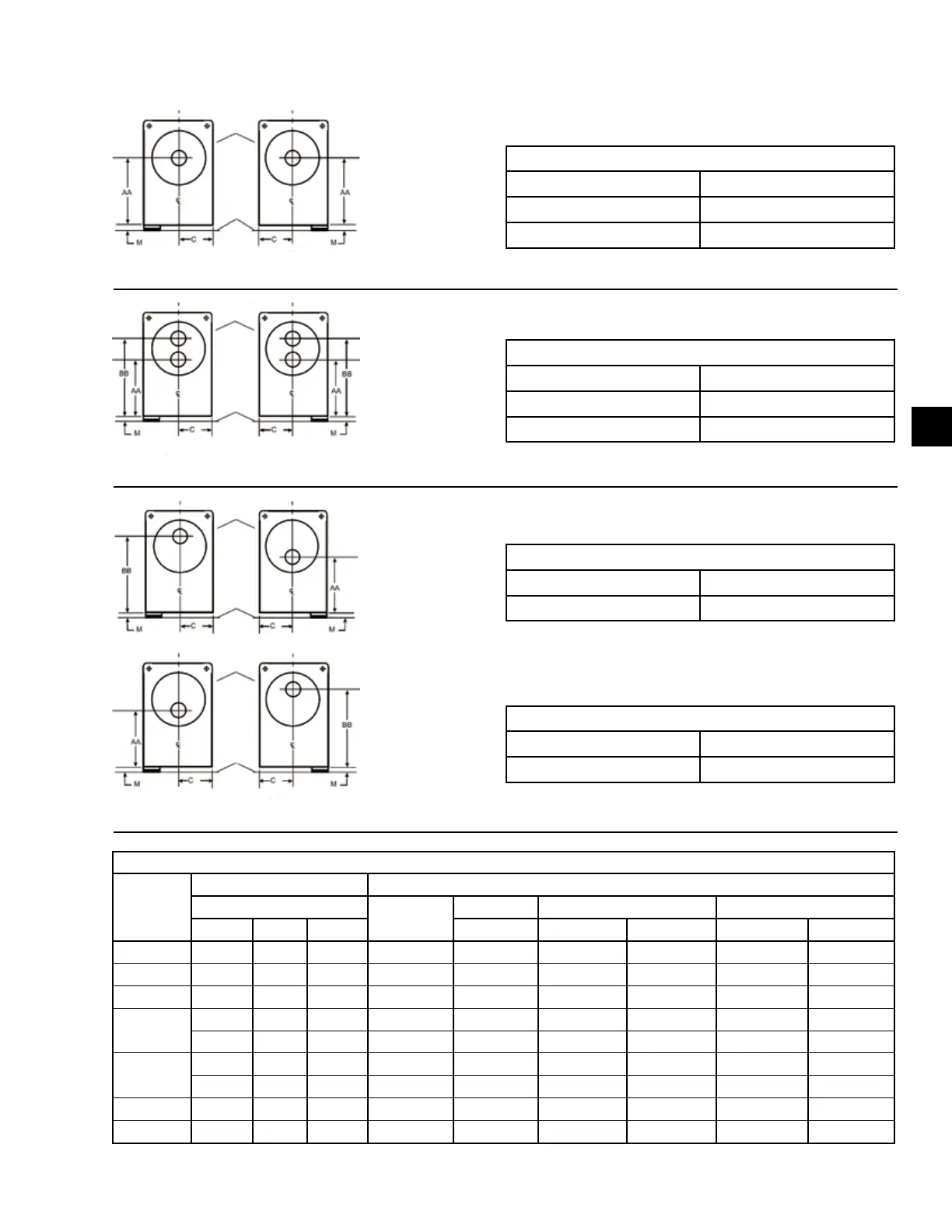

1-Pass Condenser Nozzle Arrangements
In Out
Left End Right End
Right End Left End
FIGURE 48 - CONDENSER - COMPACT WATER BOXES (1-PASS NOZZLE ARRANGEMENTS)
LD14009
FIGURE 49 - CONDENSER - COMPACT WATER BOXES (3-PASS NOZZLE ARRANGEMENTS)
2-Pass Condenser Nozzle Arrangements
In Out
Lower Right End Upper Right End
Lower Left End Upper Left End
3-Pass Condenser Nozzle Arrangements
In Out
Right End Left End
3-Pass Condenser Nozzle Arrangements
In Out
Left End Right End
FIGURE 50 - CONDENSER - COMPACT WATER BOXES (2-PASS NOZZLE ARRANGEMENTS)
