JOHNSON CONTROLS
40
FORM 160.84-N1
ISSUE DATE: 11/22/2016
SECTION 3 - INSTALLATION

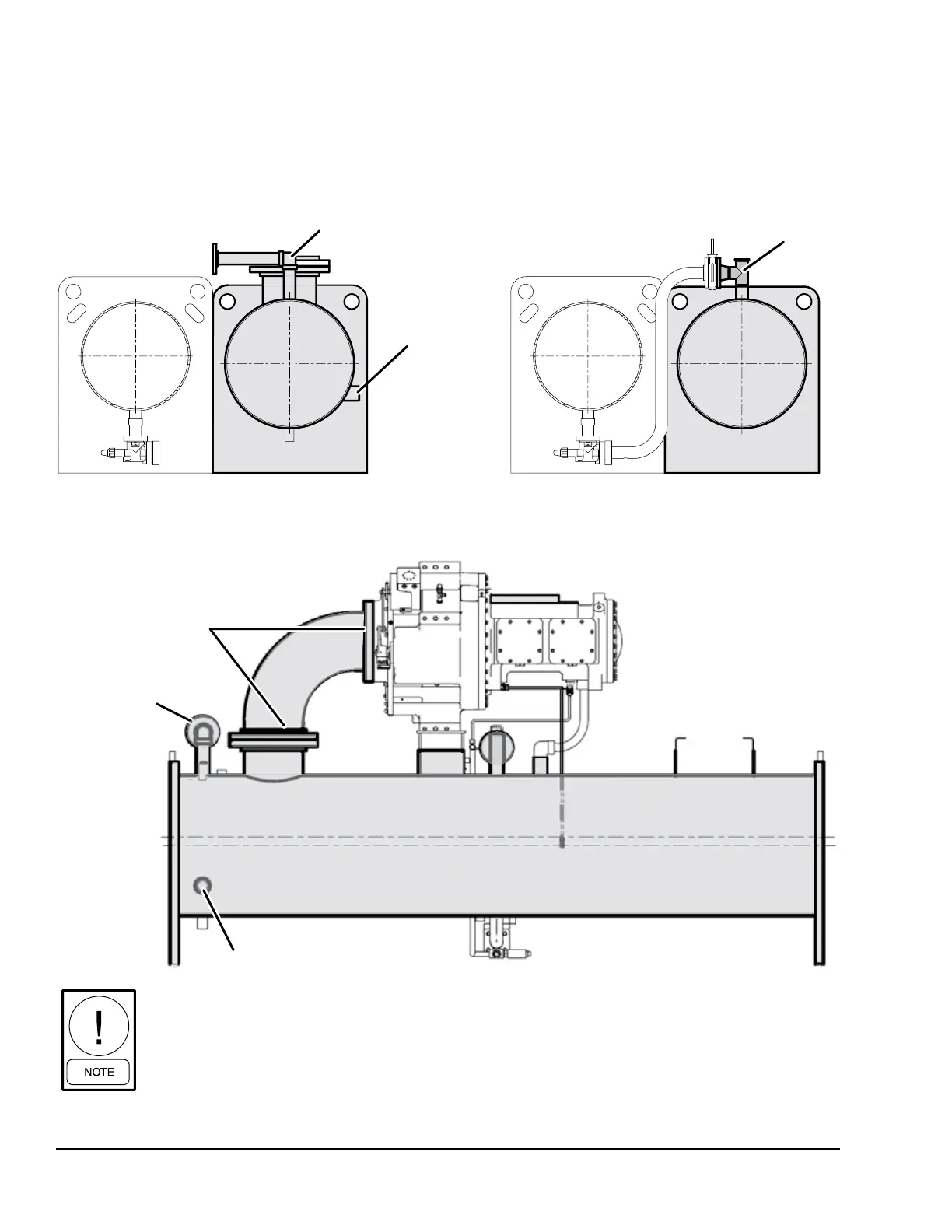

FIGURE 27 - UNIT INSULATION
LD03827a
Bold lines and shaded components
represent insulation.
HOT GAS
LINE
SIGHT GLASS
CONDENSER EVAPORATOR EVAPORATORCONDENSER
LIQUID
LINE
HOT GAS
CONNECTION
Tape Insulation
around flanges to
allow for removal.
SIGHT GLASS
