SECTION 5 - DIMENSIONS, NOZZLE ARRANGEMENTS AND WEIGHTS
FORM 160.84-N1
ISSUE DATE: 11/22/2016
5

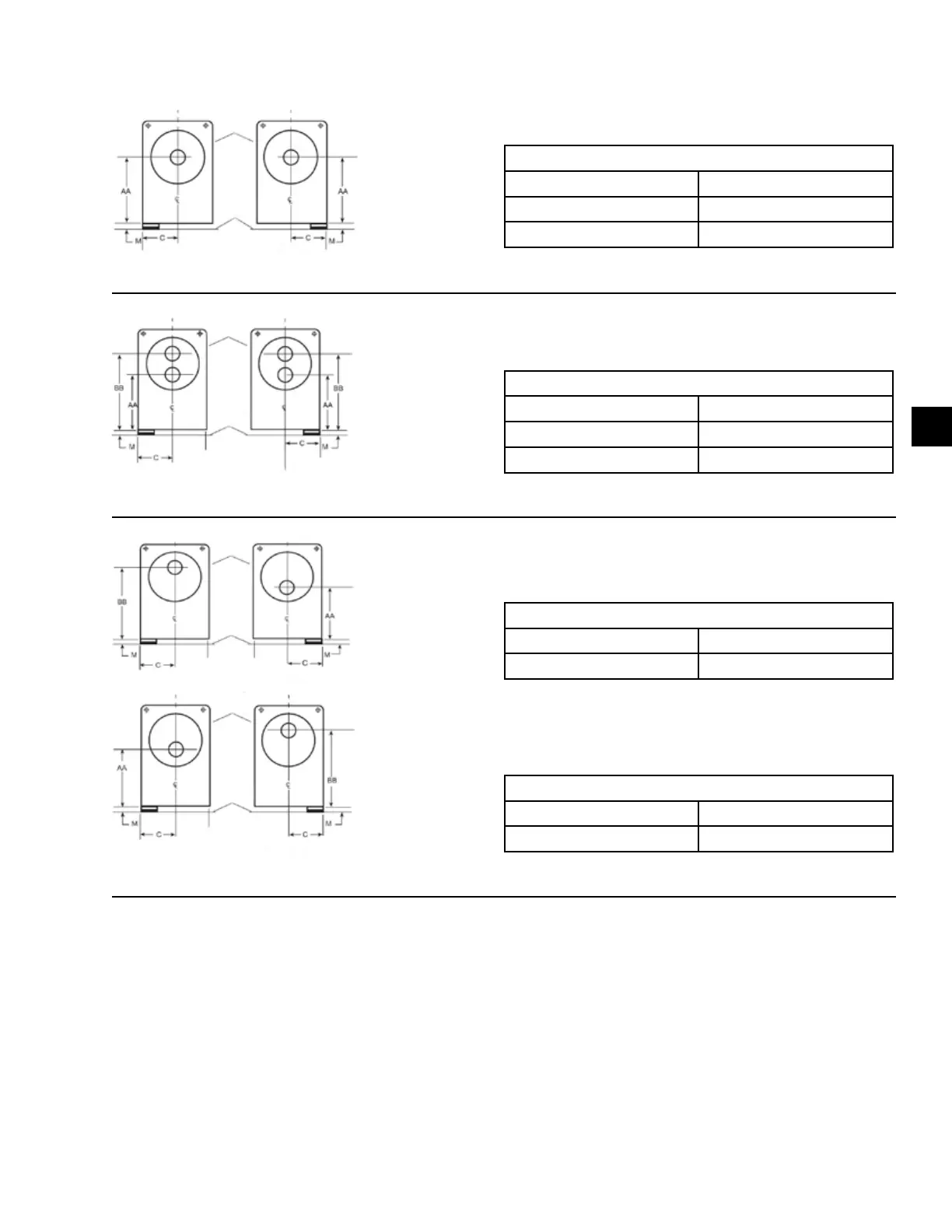

EVAPORATOR 150 & 300 PSI COMPACT WATER BOXES
1-Pass Evaporator Nozzle Arrangements
In Out
Left End Right End
Right End Left End
FIGURE 44 - EVAPORATOR - COMPACT WATER BOXES (1-PASS NOZZLE ARRANGEMENTS)
LD17202
LD17203
2-Pass Evaporator Nozzle Arrangements
In Out
Lower Right End Upper Right End
Lower Left End Upper Left End
FIGURE 45 - EVAPORATOR - COMPACT WATER BOXES (2-PASS NOZZLE ARRANGEMENTS)
FIGURE 46 - EVAPORATOR - COMPACT WATER BOXES (3-PASS NOZZLE ARRANGEMENTS)
LD17205
LD17204
3-Pass Evaporator Nozzle Arrangements
In Out
Right End Left End
3-Pass Evaporator Nozzle Arrangements
In Out
Left End Right End
