Zebra TC21 Product Reference Guide

fAccessories
149
2.

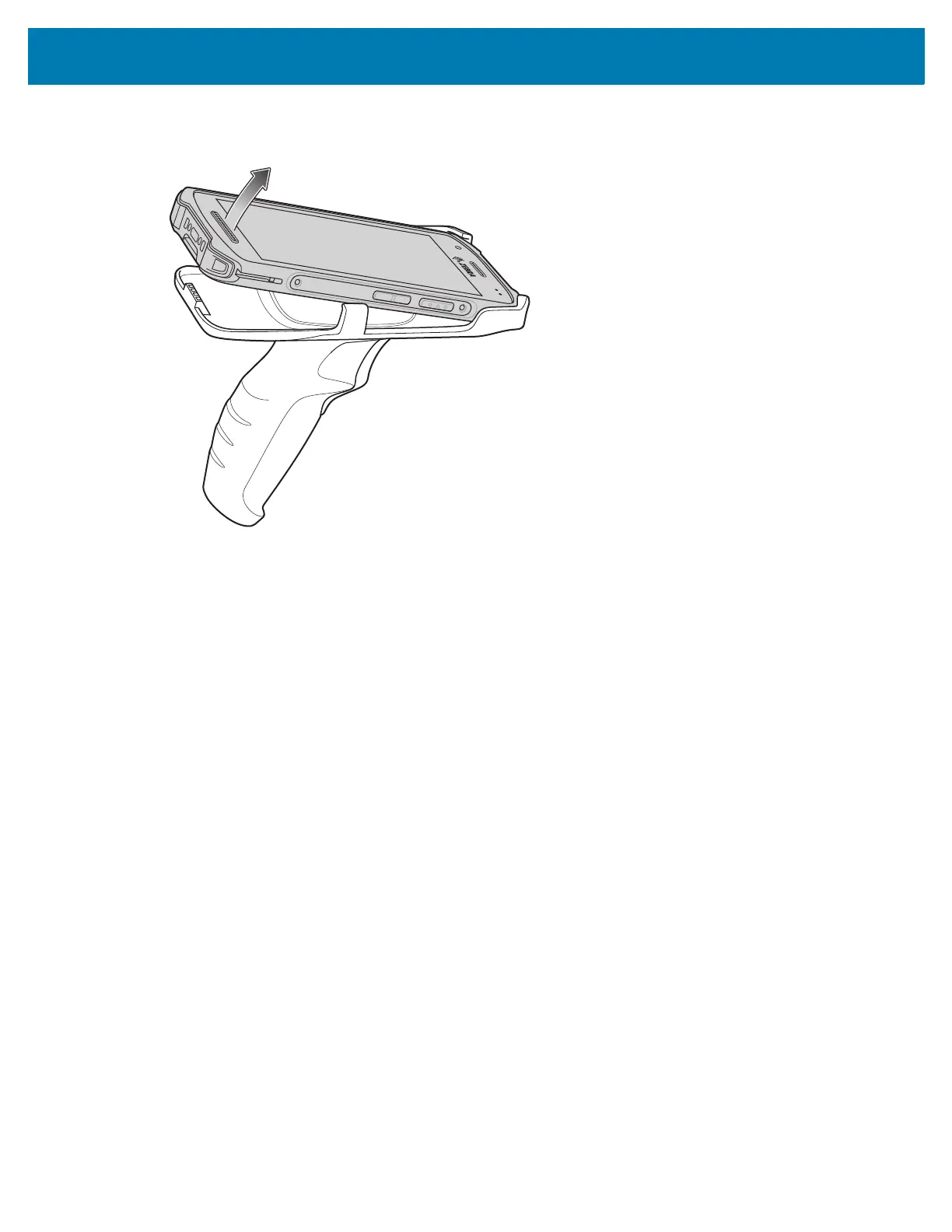

Rotate the bottom of the device up.
Vehicle Cradle
Install the vehicle mount on a surface of your vehicle that is flat and free of dirt and oil. Clean the mounting
surface with a glass cleaner and a clean cotton cloth. Install the vehicle mount on the windshield or other
flat car surface using the supplied disc.
Assembling the Mount
1. Remove all parts from plastic bags.
2. Insert the rubber gasket into the socket with the flat side against the holder.
3. Insert the arm ball through the nut and into the socket on the holder.
4. Secure nut but do not tighten at this time.

Zebra TC21 Specifications

General

Display diagonal	5 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Battery capacity	3100 mAh
Battery life (max)	10 h
Battery recharge time (off)	4 h
Flash memory	32 GB
Internal memory	3 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Security algorithms	EAP-PWD, EAP-PEAP, EAP-TLS, EAP-TTLS, LEAP, MSCHAPv2, WEP, WPA, WPA-AES, WPA-TKIP, WPA2, WPA2-AES, WPA2-TKIP
Rear camera resolution (numeric)	13 MP
USB 2.0 ports quantity	1
RFID reader	No
Scanner type	1D/2D
Certification	RoHS 2011/65/EU; 2015/863 REACH SVHC 1907/2006
Product color	Black
International Protection (IP) code	IP67
Speakers	Mono
Operating system version	10
Operating system installed	Android
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	1.8 GHz
Processor manufacturer	Qualcomm
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	13.7 mm
Width	79 mm
Height	158 mm
Weight	236 g
