1-FRAME&ELECTRONIC COMPONENT 10
CHK
ADJ
NO. PART NO.
1 Frame after-sales component 1
【
】
2 1130900-026000 ZT250-S upper steel bowl 1
3 1134300-001000 ZT350-R lower seat ring 1
4 1251300-057093 Non-standard nut M10×1.5(dacromet) 1
5 4026500-001000 KD200-C side bracket 1
6 1251700-175091 KD200-C side stand sleeve φ10×φ17×24 1
7 1251100-365000 Non-standard bolt M10×1.5×45(with threaded hole) 1
8 1186800-006000 ZT350 side bracket flameout switch 1
9 1251513-001019 6.3×12×1.6 copper gasket 1
11 1264100-001000 ZT250-S side stand spring 1
PROCEDURE:
●Checking the cushion loop
Checking whether the cushion loop⑵,⑶ is frayed, if as it, please replace it. Fix the cushion loop well and
paint the lubricating grease on it with appropriate tool.
●Sider support
Unplug the conecter of the flameout switch, using the cross screwdriver to remove the side support spring⑾,
and guard against the personal injury caused by spring contraction.Using 8# sleeve remove the bolt⑽,then
take off the gasket⑼,the flameout switch⑻.Using 14# sleeve fixed the bolt⑺ and then remove nut⑷ .
Remove the bush⑹,side support ⑸ , paint the lubricating grease on the bush⑹ when re-assembling ,then put
it into the frame⑴.
CAUTION:
●Remove the wind deflector component, handle bar component, steering column component first.
●Paint the lubricating grease on the cushion ring to decrease the rotary resistance of front forklift.
●Pay attention to safety when mounting side support spring.
●All parts should be correctly assembled.
●【1】If the part code is empty, it indicates that the part has multiple states or colors. For specific states,
please find the corresponding state or color in the official website parts. Only the disassembly and assembly
steps are explained here, and the color and status do not affect the disassembly and assembly process. This
description will not be added if there is such a situation later in this manual.

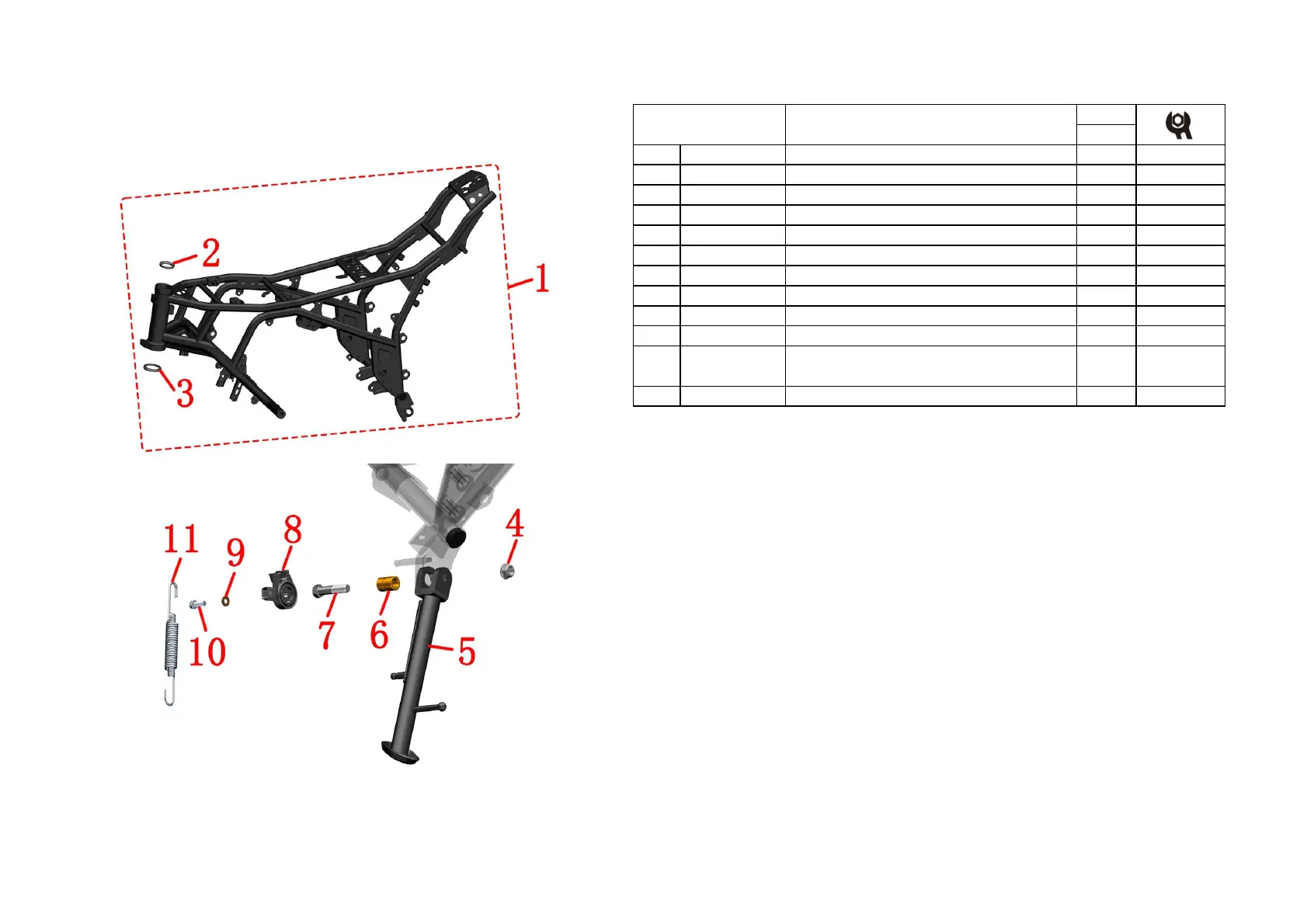

Fig.5 FRAME&ELECTRONIC
COMPONENT
Frame, side bracket
GB16674 M6×16 Hexagon flange bolts (9.8
grade/environmental color Zinc)
110 1251112-001093
