5-PEDAL COMPONENT 28
CHK
ADJ
NO. PART NO.
1 1244200-063000
ZT310-V front pedal rubber cover
1
2 4066500-012022
ZT310-V front pedal press block (matte black)
1
3 1251700-117000 Bushing Φ 7.4 x Φ5.4 x 5.7 4
4 1250205-038000 GB70.2M5×12 (stainless steel) 4
5 1276500-036022 ZT310-V Front left foot applique (dumb black) 1
6 1264100-003000 ZT250-S front left foot pedal torsional spring 1
7 1264100-006000 ZT250-S Pedal circlip 1
8 1274200-346021 ZT310-R Foot Support (M10/dumb black) 1
9 1274100-012000 ZT250-S Pedal pin 1
11 1250303-010093 GB6177.1M6 (environmental color) 1
12 1274100-042000 Miniature rod end ball bearing SAJK6C 1
13 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color zinc) 1
14 1274100-043000 Miniature rod end ball bearing SALJK6C 1

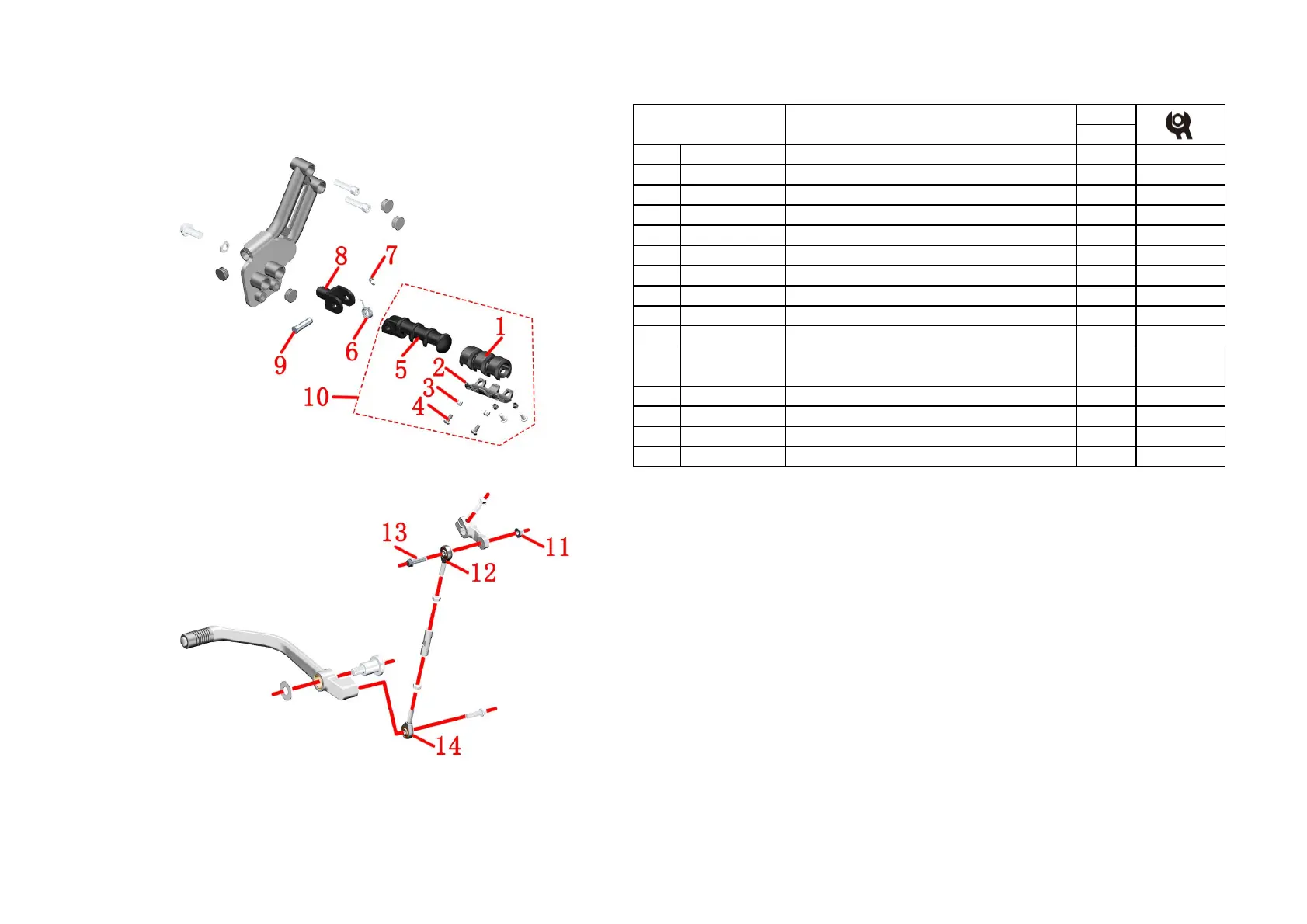

Fig.5 FOOT PEDAL
COMPONENT
PROCEDURE:
●L, Foot pedal bracket component
The shift lever, pedal assembly, spline rocker arm and adjusting screw can be removed by following the steps
in "Adjusting the Front Left Pedal Bracket Mounting Position", which will not be repeated here.
Remove the left footrest assembly by following the steps in "Removing the right footrest assembly" on the
previous page, which will not be repeated here.
●Gear shift rod assembly
If you need to replace the Miniature rod end ball bearing SAJK6C ⑿, secure the bolt⒀ with an 8# socket and
remove the nut⑾ with a 10# socket.
CAUTION:
●Applying lubrification to the surface of cylinder of foot pedal holder can reduce resistance on gear shiftrod.
●Pay attention to distinguishing the nuts at both ends of the knuckle bearing and the adjustment screw.
●Ensure correct installation when exchanging after sales components of the pedal.
1
Left footrest component
ZT310-V front left foot pedal assembly (dumb
black/MES)
10 4066500-008022
