1-FRAME&ELECTRONIC COMPONENT 8
CHK
ADJ
NO. PART NO.
PART NAME
QTY CAUTION
1 1244100-002000
ZT250-S Side cover round rubber
7
2 1274100-017000
ZT250-S cable buckle
2
3 1244200-138000
ZT310 rubber buckle (80mm)
2
4 1246500-027000
KD200-C frame φ7 decorative buckle
2
5 1241200-044000
KD150-U fuel tank liner limit glue
2
7 1240100-023000
Battery anode protection glue
1
8 1244100-061000
ZT250 anti-water rubber of frame
4
9 1224100-030000
Pin tie (Black 4.8×130)
1
PROCEDURE:
● Fuel tank liner limit glue
Push out the fuel tank liner limit glues⑸ then take off.
●Battery cushion
Put off the battery cushion ⑻ directly by hand.
●Side cover cushion
Remove the side cover cushion ⑴ with your hand directly.
●Rubbers
Remove the anti-water rubber of frame (8), cable buckle (2) and decorative buckle (4) directly by hand.
●Pin tie
Cut or pinch the snap on the back and push out the pin tie (9).
●Foam Tape
A 5-8cm piece of foam tape is affixed to the suspension brackets on both sides of the frame to prevent
rattling when the tool box cover and sub-tank cover are too close to the frame, required only for 125/155-C
models, not for 200-C.
CAUTION:
●It must be dismantled them first, such as the cushion, fuel tank component, sider cover, tail dressand so on.
●All parts should be correctly assembled.
6 0.1
only for
125/155-C
1246200-051000
P-240 foam improvement (width 6mm, length 1m,
thickness 5mm)
Frame plastic parts

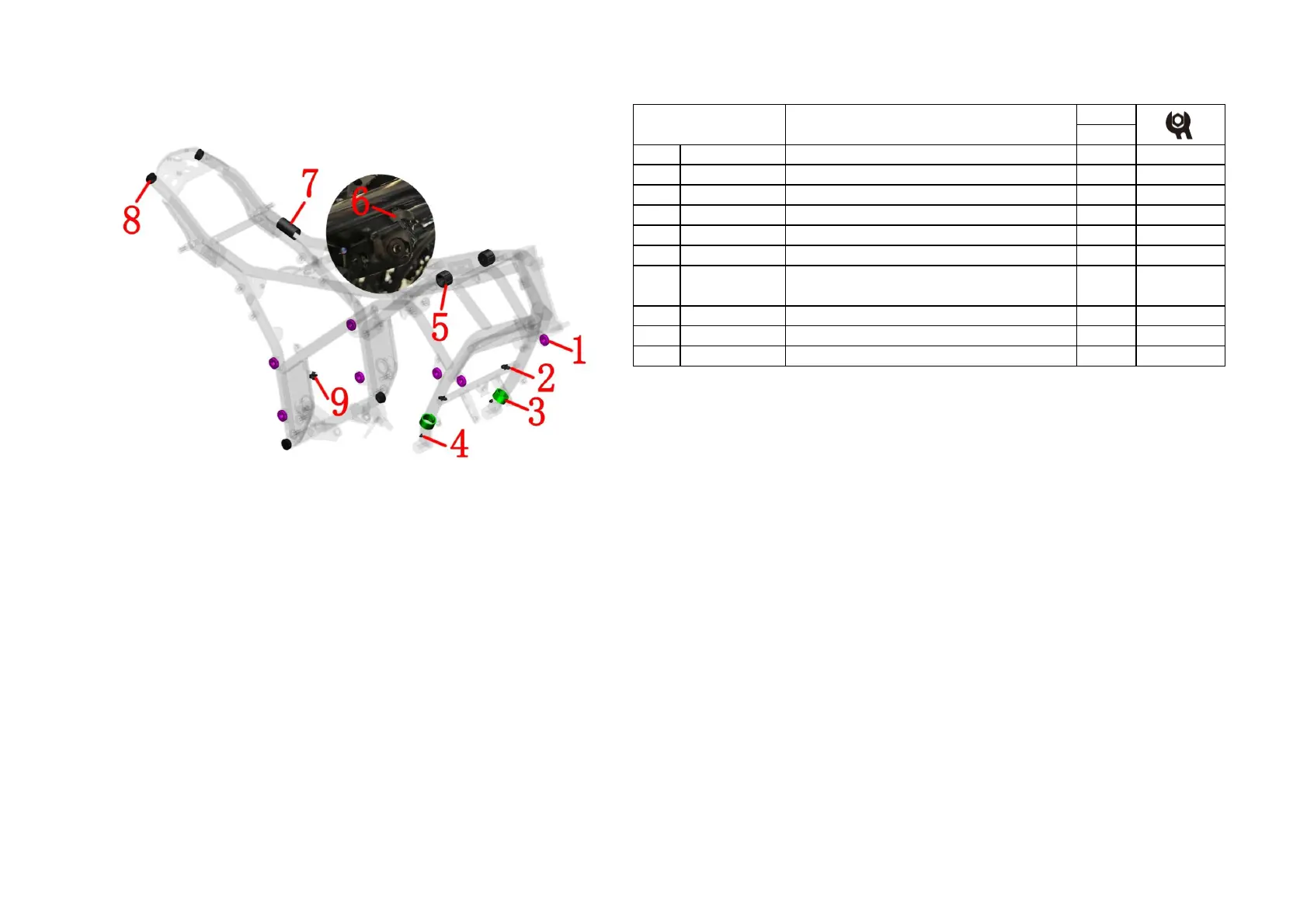

Fig.3 FRAME&ELECTRONIC
COMPONENT
