6-COOLING SYSTEM COMPONENT 32
CHK
ADJ
NO. PART NO.
1 1251100-067093 M6×10 top pin bolt (color zinc) 1 12±1.5N·m
2 1251513-001019 6.3×12×1.6 copper gasket 1
PROCEDURE:

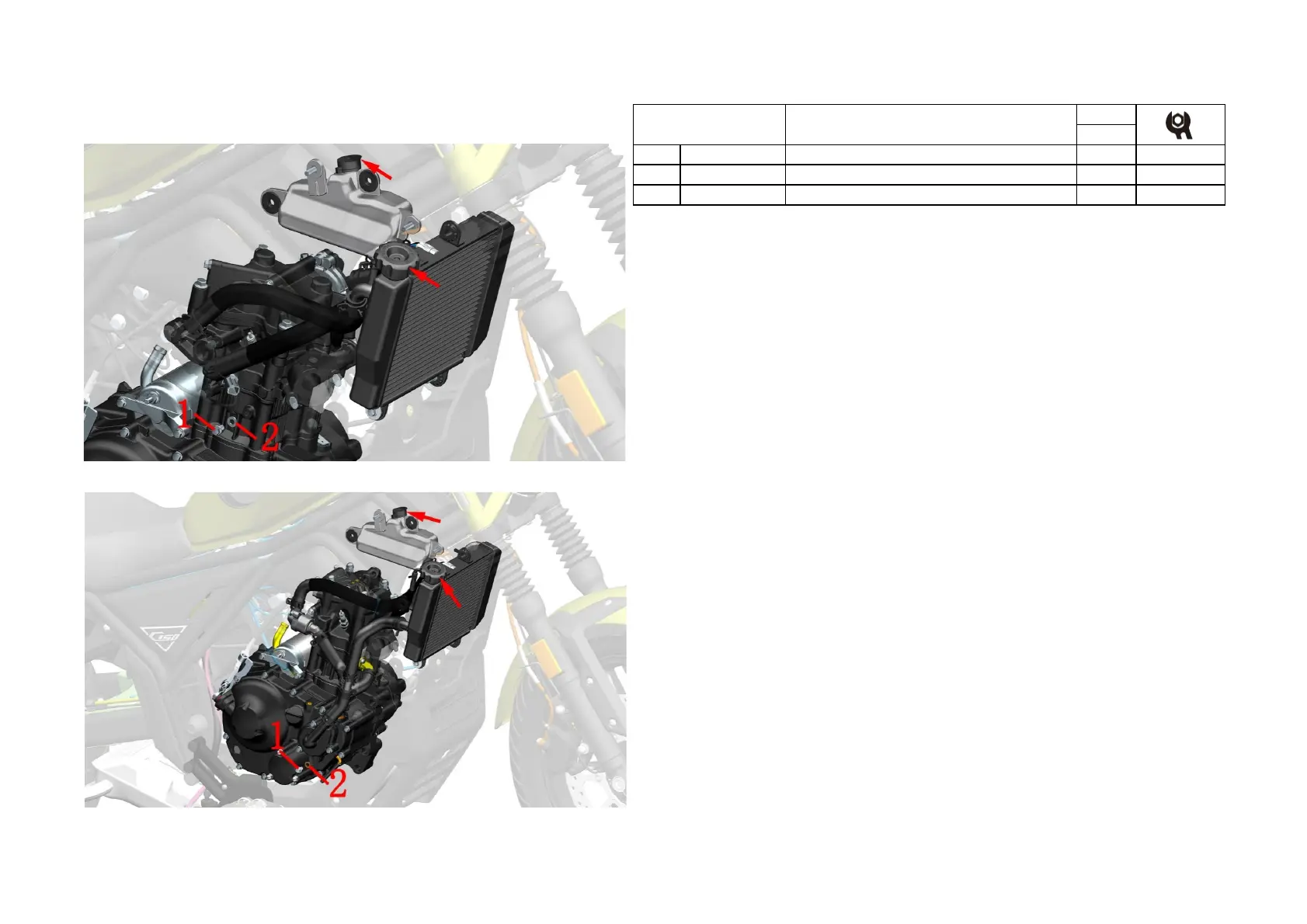

●Drain the cooling liquid
Cover the right crankcase cover and cylinder block of the engine with a waterproof cloth to prevent the
coolant from dripping onto the cover and the engine. Wear waterproof gloves with both hands and use an 8#
sleeve to remove the drain bolt ⑴ and remove the copper pad ⑵; place the container at the drain port and
then open the cover of the water tank the coolant begins to drain into the container, and the body is turned
to the right tilt to drain the coolant. Wipe the remaining coolant on the surface of all parts with a clean cloth,
and then replace the drain bolts and copper pads. It is recommended to replace them with new bolts and
copper pads.
●Add cooling liquid
Slowly pour new coolant into the water tank , and do not cover the cover after filling. Start the bike at idle for
a few minutes and observe the liquid level. If it drops, continue to add. Repeat the operation until it is full
before closing the cover. Unscrew the cover of the auxiliary water tank , add an appropriate amount of
coolant to it to keep the liquid level between "H" and "L".
CAUTION:
●Motorcycle should be well supported.
●Manipulation should start after the engine is completely cooled down.
●Cooling liquid is toxic. Avoid strictly eye or skin contact. For more details, see "Attention" of previous page.
