3-INTAKE SYSTEM COMPONENT 15
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1226400-174000 ZT310-R Air Filter Element (carton packaging) 1
ROCEDURE:

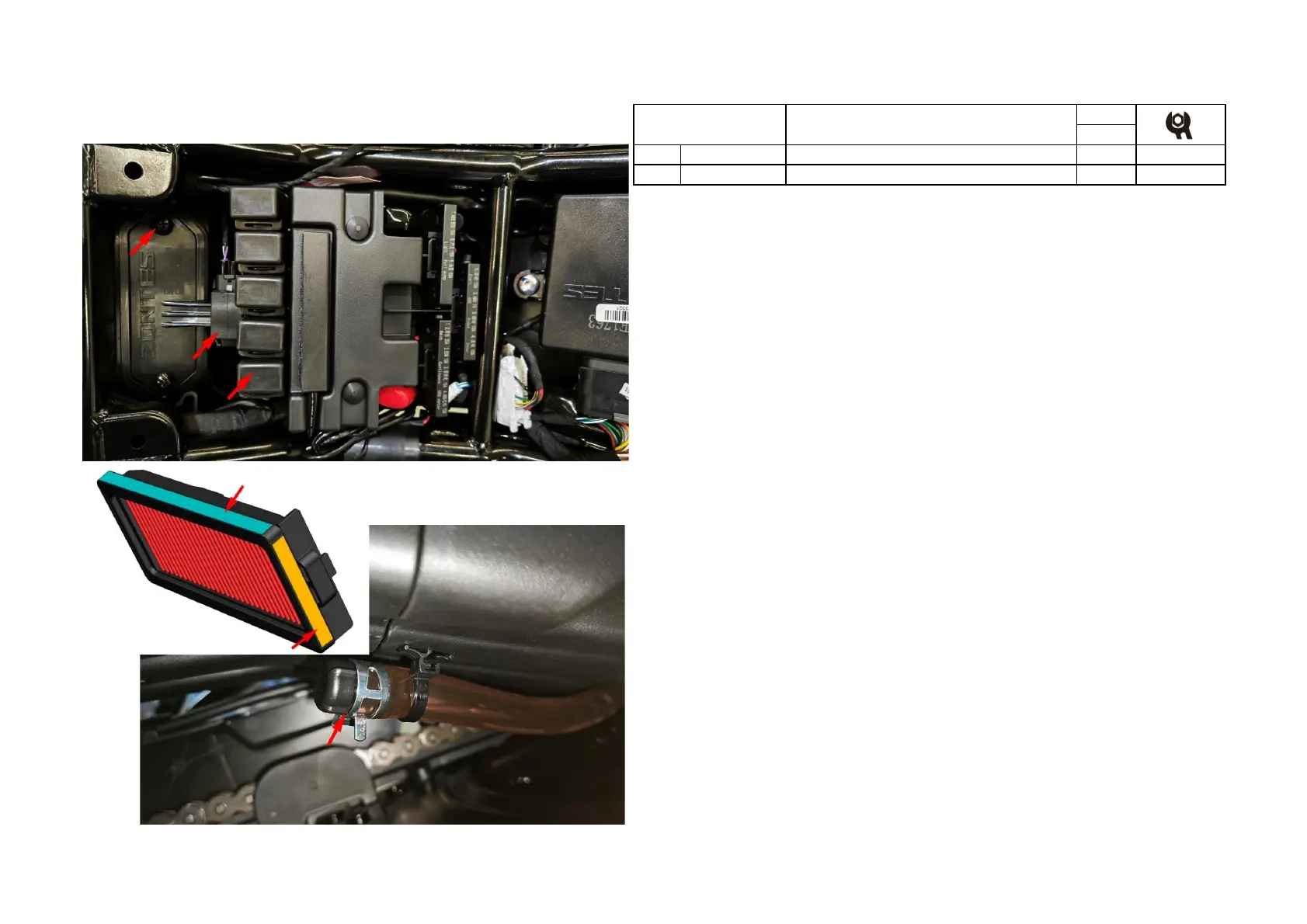

●Filter element
If you need to maintain the filter element of the air filter, remove the seat cushion.Lift the battery cover and
relay assembly up and out of the way, and pull the dump switch rubber sleeve out of the filter cartridge
cover.Take the two standard screws out of air filter, dismantle the box cover Grasp the rubber strips on the
filter (both sides shown in yellow) and pull the filter element out. Blow the dust off the filter core by blowing
dust gun in the filter element. If the filter paper is damaged, it should be replaced in time.If the blowback
causes the dust to be unable to clean up, the engine will be damaged or the induction resistance will become
larger and affect the driving experience.When assembling, apply a small amount of engine oil on the upper
and lower sides of the rubber strip (shown in cyan as shown in the figure) to reduce assembly resistance.
●Oil pipe and water pipe
Avoid water into the air filter when washing the motorcycle. Can pulled out the oil pipe to release if into
small water.keep no water inside before staring the engine. Inspecte the oil pipe regularly if more oil is
accumulated should be released in time.
CAUTION:
●Regularly check whether the filter element of the carbon tank and air filter is not ventilated, otherwise it
may cause the oil supply to affect the driving experience.
●When blowing dust, pay attention to maintain a certain distance to avoid excessive damage to the filter
element.
●The filter element should be checked every 5000 kilometers or 15 months; it should be replaced every
10,000 kilometers or 30 months.
Fig.3 INDUCTION SYSTEM
COMPONENT
Replace air filter element
To Next Page
